NC24 Automatic Sawing Centre with Auto load
JIH NC24 series Auto loading Sawing Centre - Image 2
JIH NC24 series Auto loading Sawing Centre - Image 3
JIH NC24 series Auto loading Sawing Centre - Image 4
JIH NC24 series Auto loading Sawing Centre - Image 5
JIH NC24 series Auto loading Sawing Centre - Image 6
JIH NC24 series Auto loading Sawing Centre - Image 7
JIH NC24 series Auto loading Sawing Centre - Image 8
JIH NC24 series Auto loading Sawing Centre - Image 9

JIH NC24 series Auto loading Sawing Centre

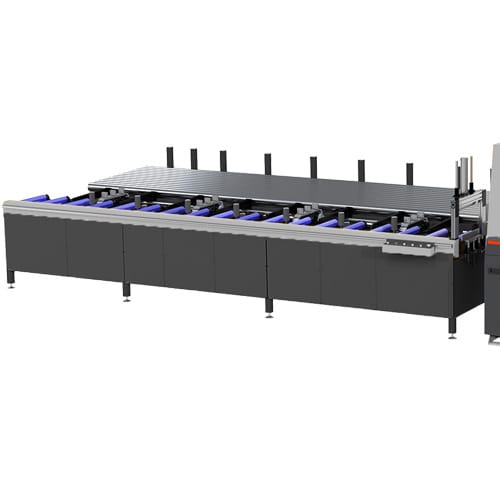

Automatic loading table for round tubes & solid bars

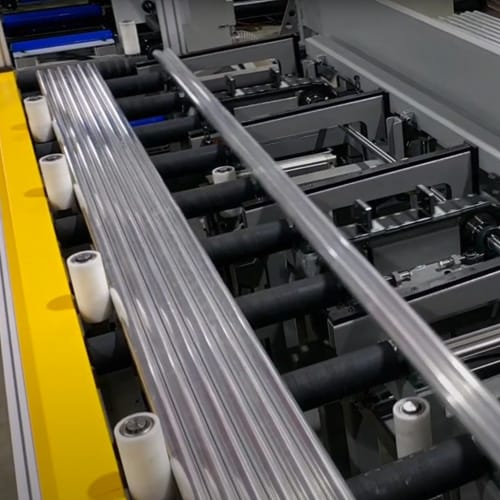

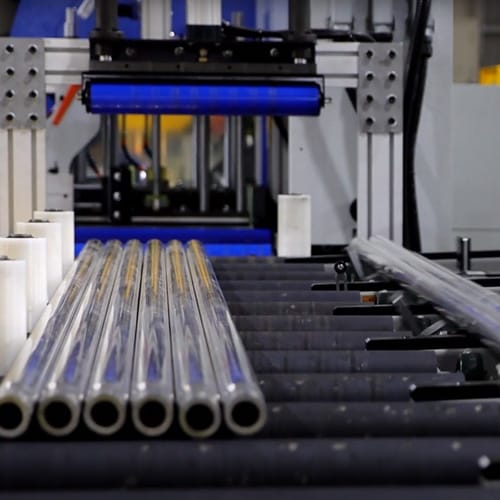

Configured to load single or rafts of multiple stock (up to 400mm wide)
Large capacity with linear blade feed system
Hydraulic feed of the saw blade carriage

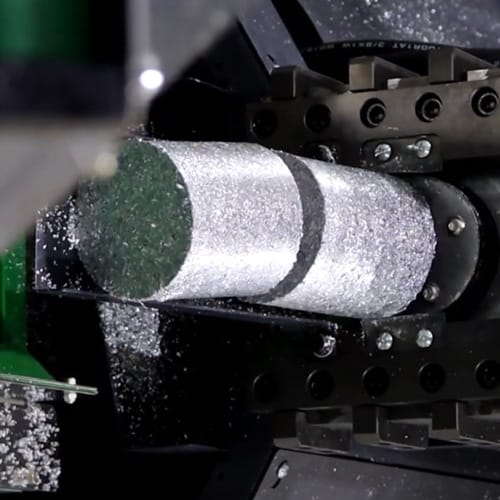

Piece separation system to eliminate back cutting marking
Cutting data set in the 7" colour touch screen HMI
100 Programs with 12 data lines for size and quantity
Bridge clamping system for maximum flexibility
Pneumatic lifting roller to protect material when feeding

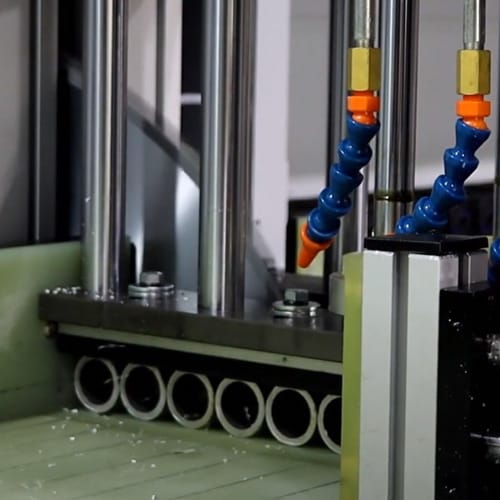

Pure oil micro dose blade lubrication system
Adjustable blade feed & clamp stroke to minimize cycle times
Hard plastic protection in cutting zone
Adjustable clamping pressure
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Categories: ,

NC24-LAR Automatic Sawing Centre

Recommended for volume production cutting of round aluminium extrusions and solids. The heavy construction of this machine together with innovative design and use of highest quality components put this machine right at the top of pile, and that even before we mention the competitive price. You can easily pay double and still not match the performance and of reliability this truly remarkable machine. We can provide many testimonials from delighted clients.

This model is equipped with an automatic loading table for single or multiple round bars and solid tubes up to 400mm wide for improved efficiency.

LARS versions have servo ball screw feed of the sawblade, which allows variable feed rates to be programmed to optimise cutting times of different shapes of material, and set precise cutting heights.

Specification Table



Detail
NC24-LAR sawing element
Servo Drive SystemBall screw (or high precision rack & pinion)
Maximum Feed StrokeNC24=1000mm NC24LB=2500mm
Cutting Accuracy±0.1mm
Saw Spindle Speed1500 ~ 3500 rpm with inverter
Motor Power15hp
Inverter15hp
Hydraulic Feed Motor2hp
Servo Motor1kw (option for 1.5kw)
Cutting Table Height920mm
Touch Screen HMI Size7″
Blade Size Range250mm to 600mm
Dimensions L x W x H3500 x 2100 x 1860 mm
Weight2300kg
Cutting Capacity H x W mm200 x 200 – 175 x 210 – 130 x 350 – 40 x 400



Swarf Management

A clever system for collecting and compressing the swarf into briquettes saving clean up and the subsequent costs.

.

JIH circular saw clamps
Machine Clamps

The clamps on the feed tale are suited for cutting irregular stock without need of additional fixtures to fix the work piece

JIH Auxilary Support image
Auxiliary Support

Auxiliary support prevents work piece deflection

Image of JIH Transmission Device
Transmission Device

Employs precision ground rack with accuracy up to 0.02mm ( suitable for 3 and 6 meter feed travel)

JIH CE Type Mist System Image
Vacuum Oil Mist Unit

The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for spraying. It effectively provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of your saw blades

JIH-NC24L & LB Data Sheet
