JIH LJK-600NC Saw

Notching Saw | NC powered angle set | 600mm blades
Servo drive for tilting of the saw blades

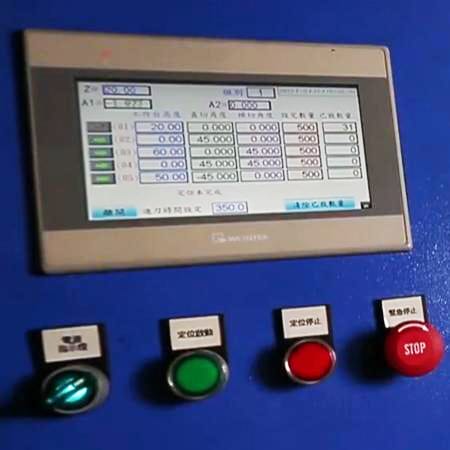

Cutting data set in the 7" colour touch screen HMI
Hand wheel adjustment of the cutting table height with metric scale
Material depth stop with digital display
Variable feeding rate with precision control valve
Swiveling fence for compound cuts +/-45 degrees

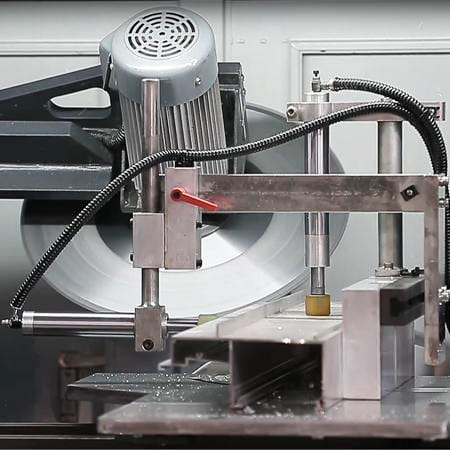

Pneumatic material clamping
Safety brake motors

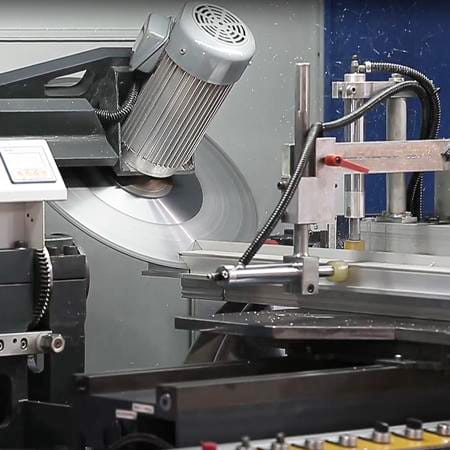

LJK-600NC Corner Notching Saw

Recommended for volume production of curtain walling components this very well priced machine offers many standard features together with solid construction for reliable consistent operation. This machine is all about delivering unbeatable value for money, performance and above all reliability.

Detail
LJK-600CN
Saw Head Angle PositioningServo powered set on the 7″ colour HMI touch screen
Servo Drive Motor Power1kw x 3
Saw Spindle Motor Power5hp x 2
Saw Spindle Speed2800 rpm
Inverter7.5hp x 2
Max Cutting Depth220 x 220 mm
Saw Feeding ControlVariable
Vertical Sawblade Dimension600mm x 120t
Horizontal Sawblade Dimension600mm x 120t
Sawblade Tilting Range+ 45° ~ 90° ~ – 45°
Table Fence Angle Range+ 45° ~ 90° ~ – 45° (option for 22.5°  ~ 90° ~45° )
Machine Dimensions3140mm x 1380mm x 1800mm
Machine Weight1750kg

JIH-I Logo





Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Lubrication System

Mist spray lubrication system fitted as factory standard – option to upgrade to Addimist – see options tab.
