JIH LJK-600 - Addison Saws



Notching Saw | Man angle set + DRO | 600mm blades

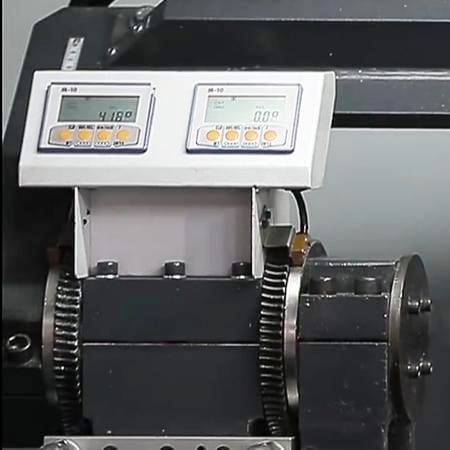

Digital display for cutting angle on both saw heads
Hand wheel adjustment of sawblade tilt through precision gearbox
Hand wheel adjustment of cutting table height with metric scale
Material depth stop with metric scale
Variable feeding rate with precision control valve
Swiveling fence for compound cuts +/-45 degrees
Pneumatic material clamping
Mist spray blade lubrication (option for Addimist pure oil)
Industry leading price
Safety brake motors


Corner Notching Saw recommended for volume production of curtain walling components this very well priced machine offers many standard features together with solid construction for reliable consistent operation. This machine is all about delivering unbeatable value for money, performance and above all reliability.

Saw Head Angle PositioningManual with Digital Displays
Saw Spindle Motor Power5hp x 2
Saw Spindle Speed2800 rpm
Inverter7.5hp x 2
Max Cutting Depth220 x 220 mm
Saw Feeding ControlVariable
Vertical Sawblade Dimension600mm x 120t
Horizontal Sawblade Dimension600mm x 120t
Sawblade Tilting Range+ 45° ~ 90° ~ – 45°
Table Fence Angle Range+ 45° ~ 90° ~ – 45° (option for 22.5°  ~ 90° ~45° )
Machine Dimensions3140mm x 1380mm x 1800mm
Machine Weight1400kg

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.
