JIH-I-T5

CNC 5 Axis | Compound Double Mitre Saw | 600mm blades
600mm dia sawblades
All axis set with servo drive motors

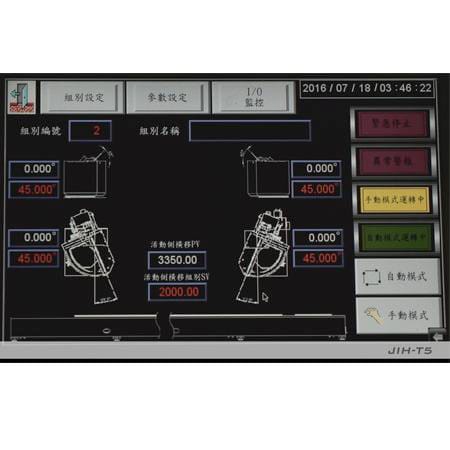

Full colour touch screen HMI
X axis moving head mounted on precision linear guides
Single piece machine bed construction
Fully adjustable vertical and horizontal pneumatic clamps
Mist spray blade lubrication system
Stock support table on the moving head
Massive cutting capacity

JIH-I-T5

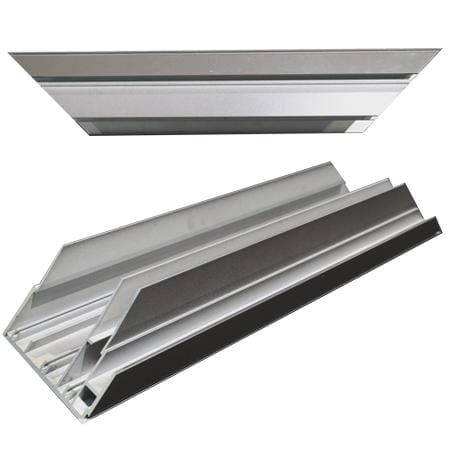

Compound double mitre saw recommended for complex mitre cutting of aluminium and PVC extrusions, mainly for the door-window- conservatory and curtain walling industries.

Detail
JIH-T5
Cutting Length Tolerance±0.15 mm
Cutting Angle Tolerance±0.15°
X Axis Cut Length4500 mm (option for 5500 + 6500 mm)
Min Cut Length at 90° – 90°530 mm
Min Cut Length at 45° – 45°810 mm
Head Rotation Range22.5° ~ 90° ~ 157.5°
Head Tilt Range90° ~ 45°
Spindle Speed1800 rpm
Motor Power7.5 hp x 2
Servo Motor Power1 kW
Blade Dimensions600 mm
Machine Packaging Dimensions6500 x 1650 x 1900 mm
Machine Weight3900 kg



Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

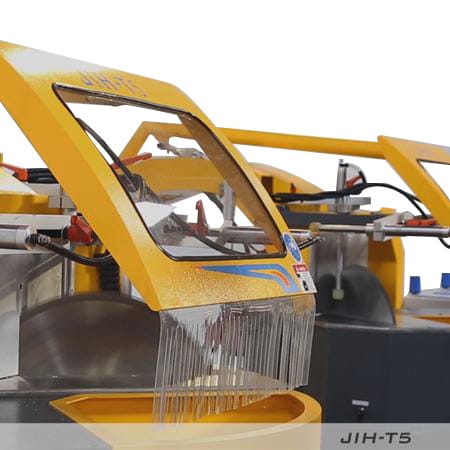

Tilting

Automatic saw tilting 0 ~ 45˚

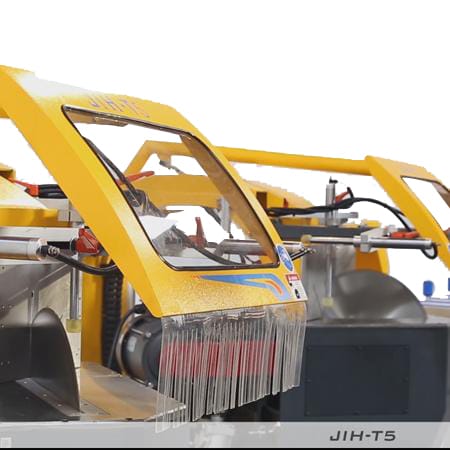

Rotation

Automatic worktable rotation ±0 ~ 67.5˚

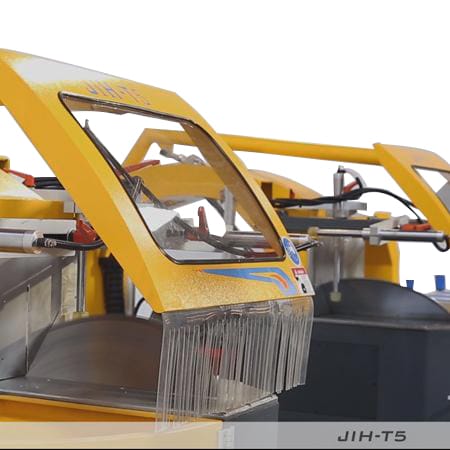

Positioning

Automatic positioning for the cutting length

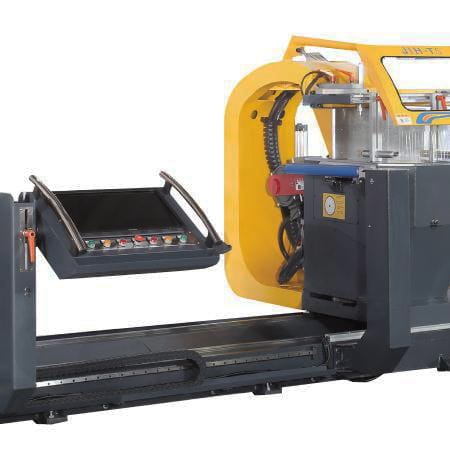

Operation

5 axis control by servo motor, operation via touch screen.

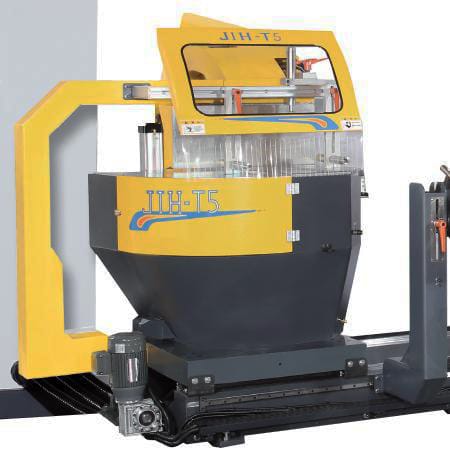

X Axis Movement

X axis moved by lingering guide to ensure
accuracy for positioning.
