JIH-Auto-24-D
Massive cutting capacity for single or multiple bars

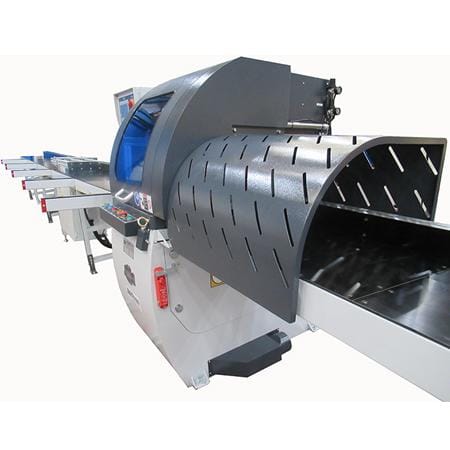

600mm diameter saw blade
Inclined table for easy loading

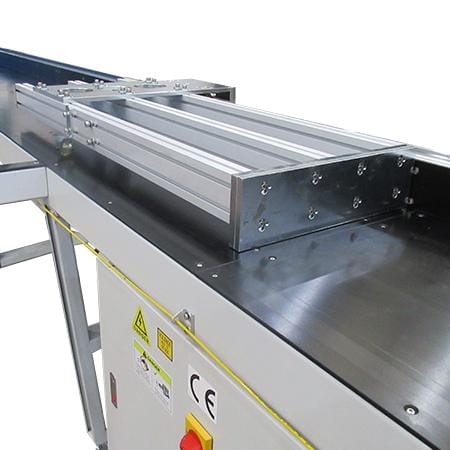

High speed material pushing system - servo motor

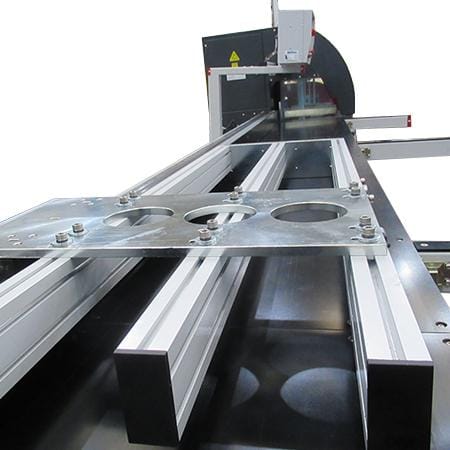

Precision rack feed with reduction gearbox

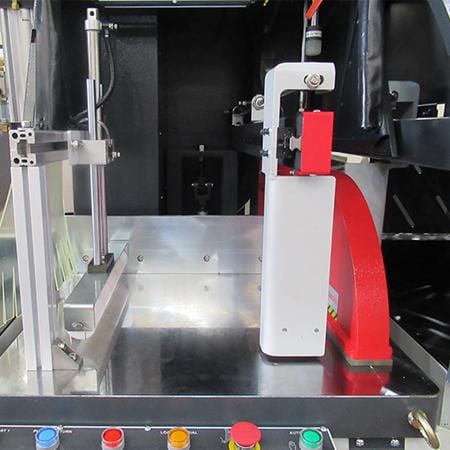

Unique integrated clamping system
Simple NC control system
Optional office software for desktop programming
Specifiable lengths for feeder and offloading tables
Optional material storage arms in loading table
Extraction points directly above & below saw blade
Highly effective construction to facilitate external chip extractor
Scroll down for specification, optional extras, videos & more ⬇️

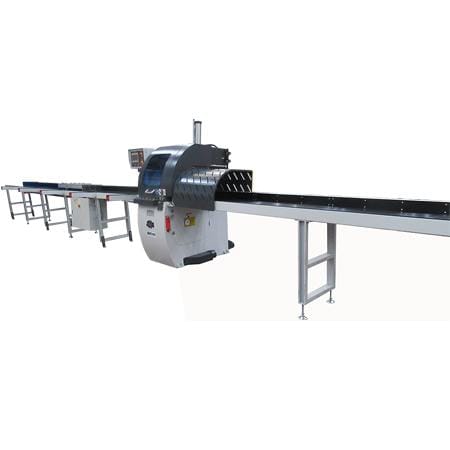

JIH Auto-24D High speed sawing system

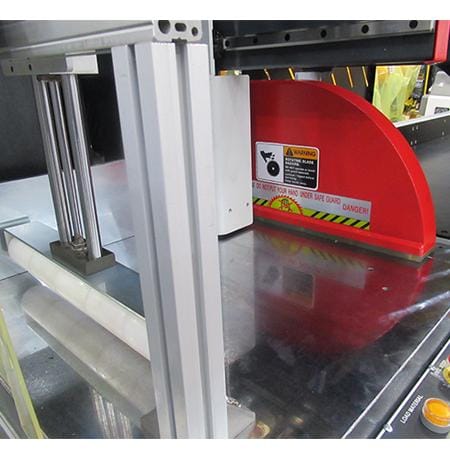

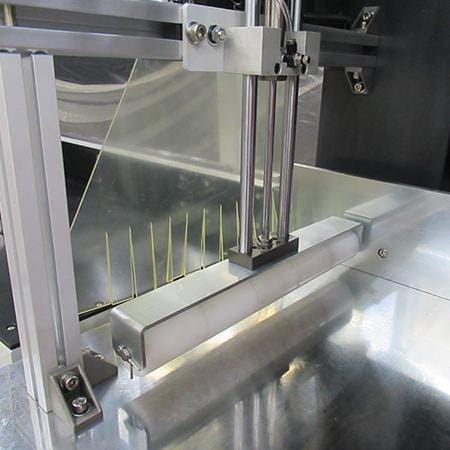

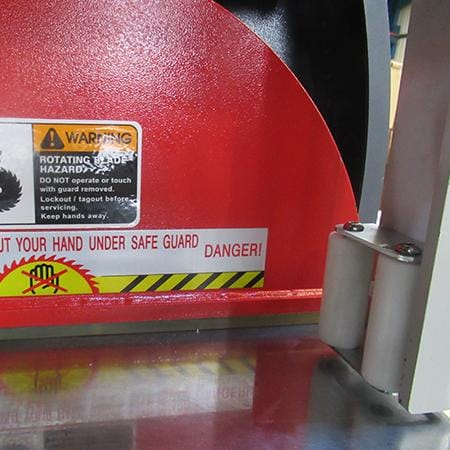

High speed sawing system designed for cutting multiple extrusion is packs, or in rafts. The tilted back design ensures correct positioning of the work pieces during the feeding cycle. The system incorporates a very high speed and precise rack driven pusher plate, large capacity very heavy duty rising blade saw with special roller to decelerate the incoming stock material ensuring it is in contact with the pusher plate at all times to deliver consistent accuracy. The vertical clamping is a very clever design, giving clamping force right up to the saw blade each side, and also containing the swarf with an extraction outlet. There are also 2 additional extractor connection points below the cutting table. The touch screen HMI is simple to use for programming job data and showing machine status. It is possible to have an offline programming addition to receive cutting lists compiled in CSV format and transferred by USB.
| Model | JIH-24 D Type |
|---|---|
| Cutting Angle | 90 ° |
| Cutting Capacity(HxW) | 175 x 175, 150 x 340 80 x 400, 40 x 420 mm |
| Saw Speed | 1,800R.P.M. |
| Saw Motor | 10 HP |
| Saw Blade Size | 24″x1″bore |
| Table Area(LxW) | 664x560mm |
| Table Height From Floor | 830mm |
| Conveyor Length (Opt.) | 1-7 M |
| Air Pressure | 4-6 kgs/cm² |
| Machine Dimensions ( LxWxH ) |
860 x 1,310x 1,850 mm |
| Packing Dimensions ( LxWxH ) |
980 x 1,430 x 2,050 mm |
| Net/Gross Weight | 550 / 650 kgs |
