JIH-610A & JIH-910A Aluminium Saw

610mm & 910mm Blade | CN with 500mm Ball Screw feeder
500mm stroke ball screw feeder
Option for servo rack feeder 3000mm and 6000mm
Option for Stock/cut piece separation before blade returns
CN control with 7" touch screen HMI
CN systerm records cutting times and piece qty
Fully guarded cutting zone
Mist spray blade lubrication
Hydraulic feeding of the saw blade for maximum stability
Bridge clamping system for multiple piece cutting

JIH-610A & JIH-910A

A very strong and competent automatic saw for high volume sawing of large aluminium profiles and solids. The smart bridge clamp design makes cutting and clamping of multiple profiles easy. A precision servo driven ball screw feeder and hydraulic blade feed transmission are usually upgrades at additional cost, but appear as standard equipment on the 455 range. They can also be configured with a servo rack feed system with 3000mm or 6000mm stroke.

DetailJIH-610AJIH-910A
standard Feeder SystemServo with Ball ScrewServo with Ball Screw
Optional Feeder SystemServo With Rack FeedServo With Rack Feed
Max Feeder Stroke500mm500mm
Maximum Cut Length w/ Multi IndexingUnlimitedUnlimited
Cutting Data Input7″ Touch Screen HMI7″ Touch Screen HMI
Standard Feeding Tolerance±0.15mm±0.2mm
Saw Spindle Rotating Speed1800rpm900rpm
Saw Spindle Motor Power10hp20hp
Standard Servo Drive Power1kW1kW
Max Load100kg100kg
Cutting Table Height921mm1339mm
Sawblade Dimension600mm (24″)915mm (36″)
Machine Dimension (L x W x H) mm2500 x 1300 x 20202910 x 1953 x 2360
Weight1600kg3480kg

JIH 610A aluminium circular saw cutting chart











Clamps

The clamps on the feed table are suited for cutting irregular material without additional fixtures to fix the work piece.

Auxiliary Support

Auxiliary support prevents work piece deflection.

Transmission Device

Employs precision ground rack with accuracy (suitable for 2.5 and 6 meter feed travel)

Vacuum Oil Mist Unit

The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for spraying. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of saw blade

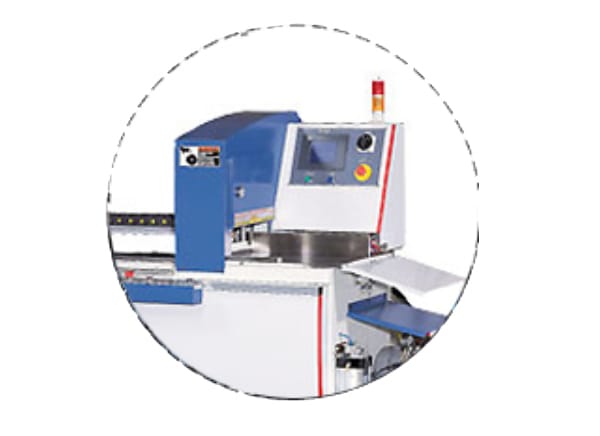

Specially Designed Cutting Motion

After the saw blade moves upward for cutting, table moves to right and left for retracting 2 mm. Then the saw blade lowers to its home return-cutting. while ensuring fine surface of cut and cutting accuracy.
