JIH 350-L Horizontal V Cut saw
Large capacity with linear blade feed system

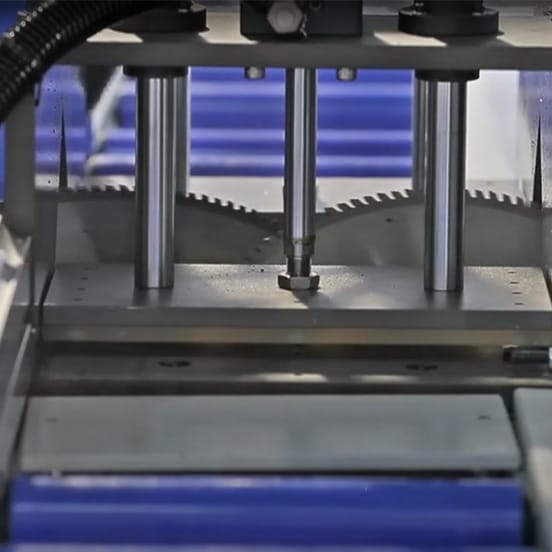

Dual bridge clamping system for maximum flexibility
Pure oil micro dose blade lubrication system
Adjustable blade feed
Hard plastic protection in cutting zone
Adjustable clamping pressure
Foot pedal operation or 2 button

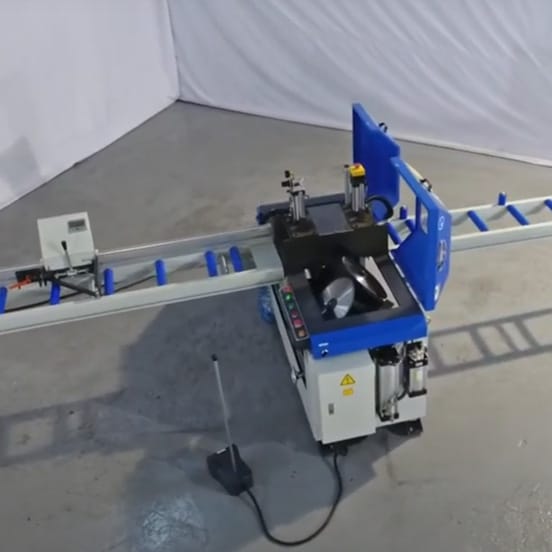

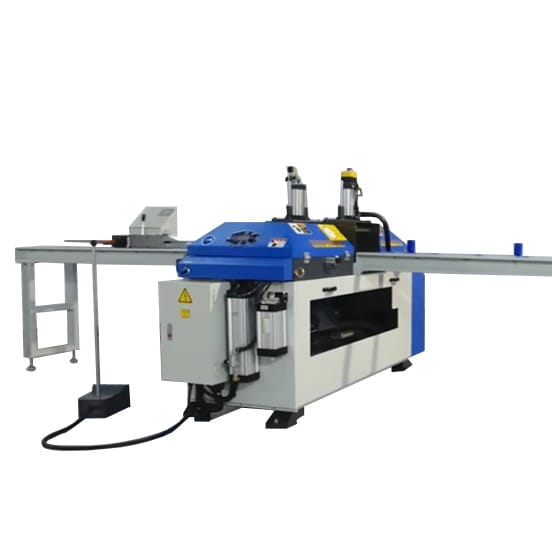

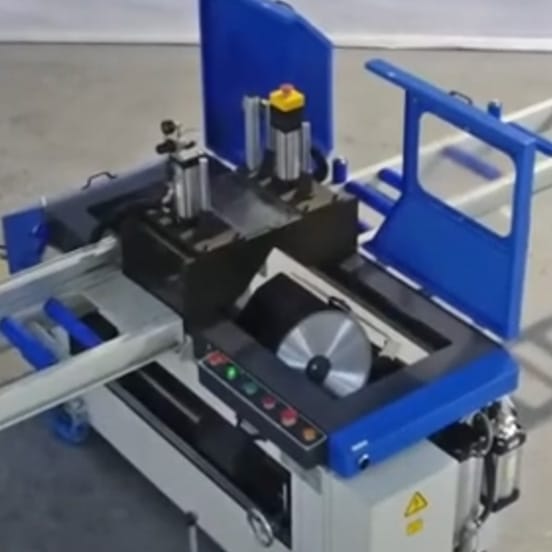

JIH 350-L HORIZONTAL “V” CUT SAW

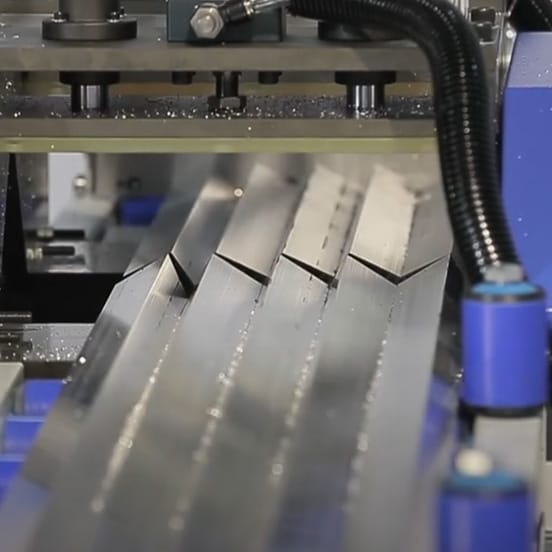

A large capacity machine for aluminium and plastic materials conceived for either notching out profiles generally used in the glazing industry, or as a double mitre saw for cutting single pieces and multiple stock in securely clamped rafts. This method of production is very productive and widely used in the ventilation and air diffusion industries. (bespoke bed tooling may be required for irregular shape profiles)
| Model | JIH-350 L Type |
| Cutting Angle | 45° |
| Cutting Width | 350mm (400 opt.) |
| Cutting Height | 70 mm ( opt. 90mm) |

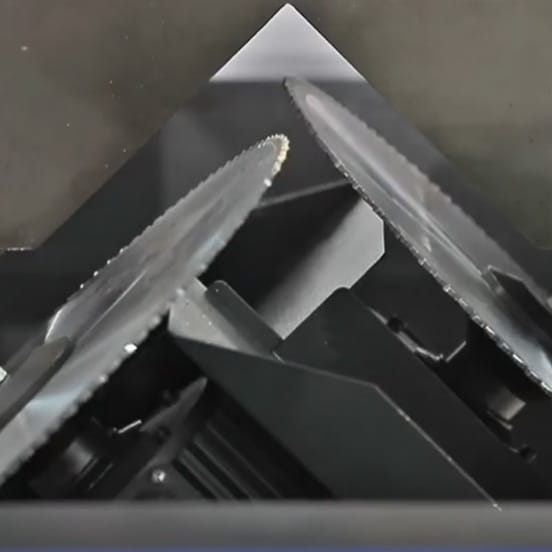

| Saw Blade Size | 14” x 1” x 2 pcs |
| Spindle Speed | 3,200R.P.M |
| Motor | 2HP x 2 |
| Clamping Way | Vertical clamping x 2pcs |
| Table Area | 500x320mm |
| Table Height From Floor | 840mm |
| Infeed/Outfeed Conveyor Length | 1~7M(for opt.) |
| Net/Gross Weight | 650 / 780kgs |
| Air Pressure | 4 – 6 kgs / cm2 |
| Machine Dimensions ( LxWxH ) | 1,930x725x1,300mm |
| Packing Dimensions ( LxWxH ) | 2,050x845x1,500mm |
