Heavy Duty Mitre Saw | Semi Automatic | 500 mm Saw Blade

Key Features

Unique integrated hood and vertical vice
Easy rotation cutting table with pre-set common angles
Closed saw blade chamber for maximum extraction efficiency
Adjustable clamp pressure and return height
Adjustable saw feed stroke to reduce cycle times
Oil mist blade lubrication system
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

JIH-I 20 Aluminium Saw

The JIH-20 is a semi-automatic rising blade mitre saw with manual head rotation and cutting angle of +45° through to +45°, the table includes pre-set stops of common angles for speed. constructed for production cutting of aluminium extrusions and solids. The clever design architecture is focussed on dealing with swarf, containing as much as is practicable and providing outlets to connect to an external extraction unit.

Detail JIH-20
Automatic Cutting Angle + 45° ~ 90° ~ – 45°
Sawblade Dimension 20″ (500mm)
Spindle Speed 2800rpm
Motor Power 7.5hp
Cutting Table Area 915mm x 450mm
Cutting Table Height 875mm
Machine Weight 500kg
Footprint (L x W) 1200 mm x 1909 mm

JIH-20 cutting chart image









JIH-20 aluminium saw features list image
Main Features

The operator may adjust clamping height and speed and cutting height and speed according to work piece size and thickness for saving waiting time.

  1. Adjustable clamping height.
  2. Adjustable clamping speed.
  3. Adjustable cutting height.
  4. Adjustable cutting speed.
  5. Push-pull type safety guard.
  6. Horizontal clamping for extremely stable clamping.
  7. Accurately controlled oil mist system. greatly improves lubrication and cooling effect, while reducing trouble to a minimum.

JIH aluminium saw quick positioning image

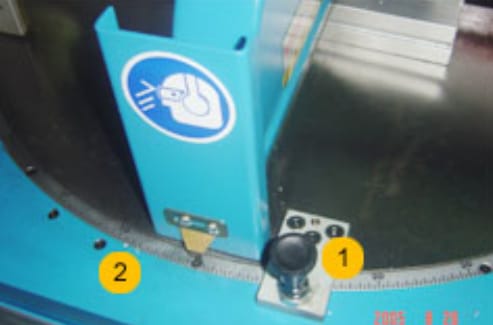

Quick Positioning

  1. Quick positioning button
  2. Quick positioning hole

When equipped with the quick positioning button and the quick positioning hole, the frequently applied angles such as 22.5°, 30° and 45° can be fast positioned for increasing efficiency.

jih sawblade and chip outlet image for JIH saw

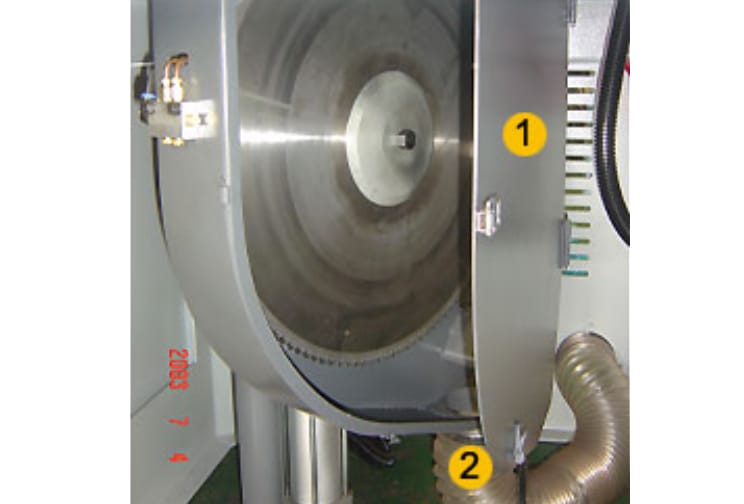

Blade & Chip

  1. The convenient door for saw blade replacing. Open the side door to replace the blade. The door can load the whole blade and there won’t be any inconvenience for the blade installation as those typed machine
  2. CHIP OUTLET PORT The chips are exhausted through this outlet port. It eliminates inconvenient cleaning for those chip deposited in the machine.

JIH CE Type Mist System Image
Vacuum Oil Mist Unit

The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for splashing. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of your saw blade
