JIH 125-P End Milling Machine

Vertical & horizontal pneumatic clamping system
Adjustable depth stop
Large cutting capacity
Semi automatic operation
Multiple mist spray cutter lubrication
Mecal tooling
Tooling

Custom produced cutter sets and form cutters in quality TCT (drawings and connection samples may be required)

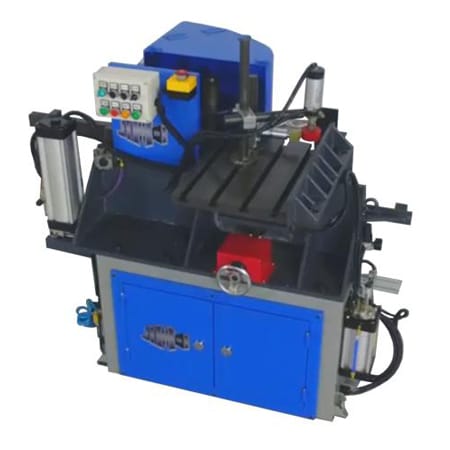

JIH 125-P

Large capacity end milling machine, used for end milling processes of aluminium and plastic profiles. Semi-automatic heavy duty machine.

Model
JIH-125-P
Motor Power 5hp
Spindle Speed 3500 rpm
Spindle Diameter 50mm
Cutter Diameter Range 125mm to 250mm
Max Cut Width 260mm
Max Cut Height 85mm
Max Cut Depth 80mm
Max Feed Length 500mm
Cutting Table Height 950mm
Dimensions (L x W x H) 1100 x 1500 x 1400 mm
