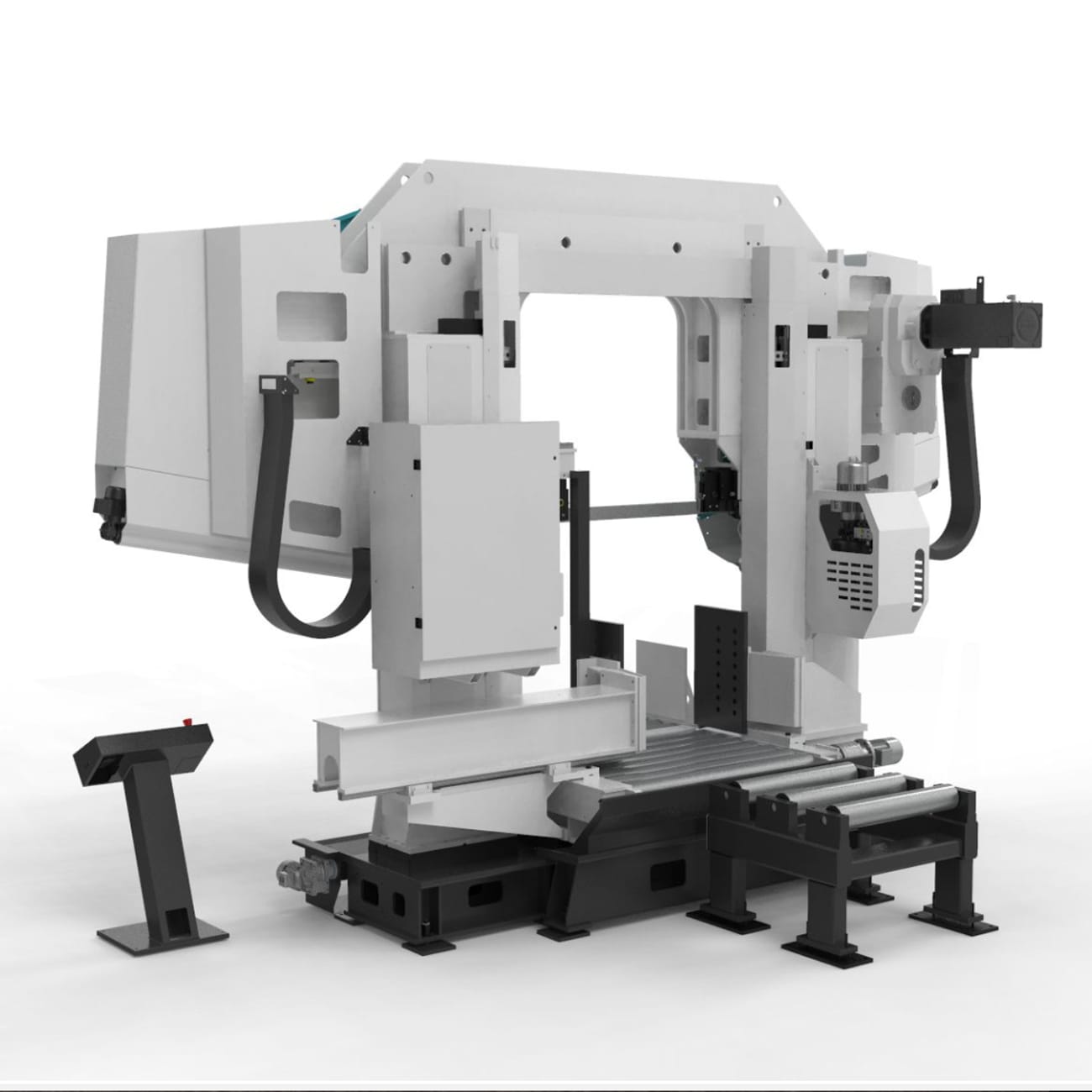

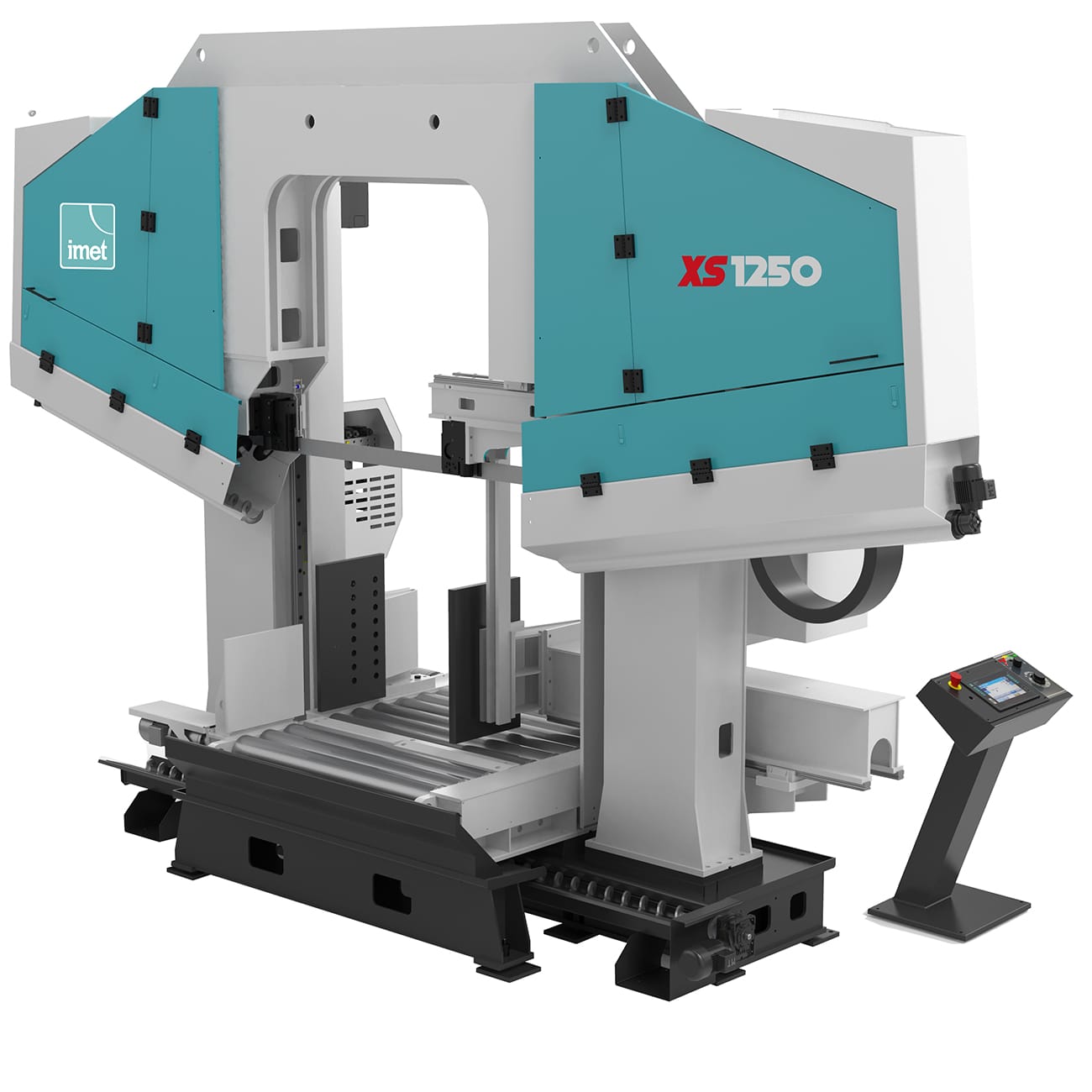

Imet XS1250 Band saw

Twin Pillar semi-auto band saw 900mm / 1200mm capacity (round bar)
Extremely rigid architecture for maximum precision and performance
Integrated motorised material feed rollers
Automatic setting of the guide arm
Motorized chip conveyor
Variable saw frame return height
(Optional) Blade deviation control

Imet XS 900-1200

Semi-automatic twin pillar bandsaw for cutting very large solid materials in a demanding production environment. Highly recommended for cutting extreme alloy steels.

Cutting capacity at 0° Round: 1250mm
Square: 1250mm
Rectangular: 1250x1250mm
Blade motor 18KW
Blade speed 14
80 m/min
Blade size 12380x80mmm
Blade tension 3500kg/cm2
Canted blade
Working table height 760mm
Hydraulic unit motor power 3KW
Hydraulic unit tank capacity 80 l
Coolant tank capacity 220 l
Weight 13000kg
Size 5960x2890x4000mm
Addimist Bandsaw

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Battery Laser Line

Quality German laser line. Addison fit item.

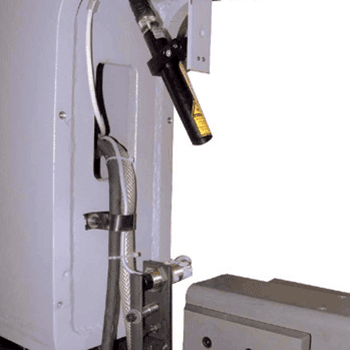

Powered Laser Line

Imet factory fit powered laser line.

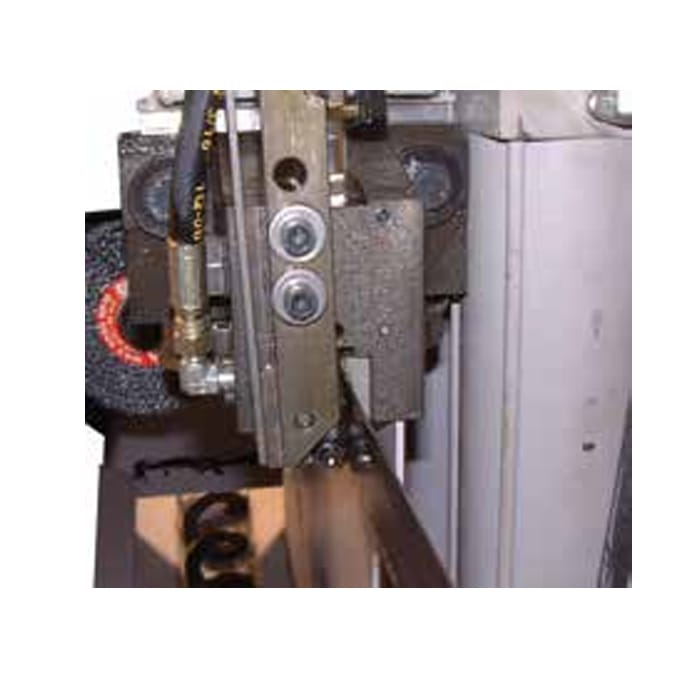

Blade Deviation Control

The blade deviation control allows to always have the perfect alignment and blade position and it also has automatic detection and stops the cutting process in case of breakage.

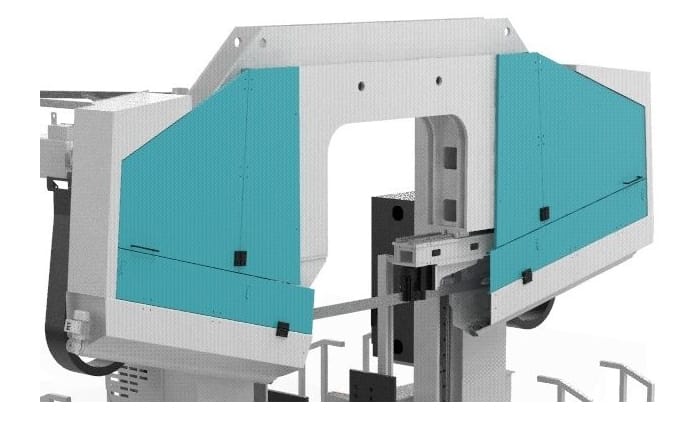

Saw Frame

XS1250 has a heavy rigid steel saw frame for maximum stability and vibration absorbtion. Mounted on a large steel column with precision linear guides. To increase the cutting performance, the bandsaw has a very high blade tension (2000kg/cm2).

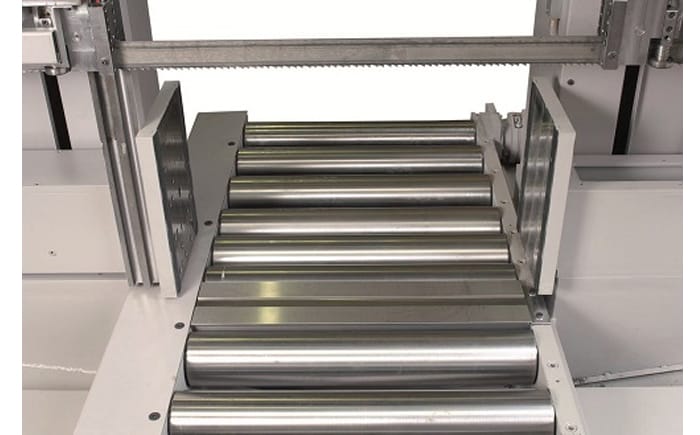

Cutting Table

The machine is intended to cut big size solid materials it has a wide working area able to support big volume pieces thanks to the 10 electric motorized rolls managed by inverter; 7 rolls support the material before the blade, while 3 are placed after the band. All the rollers can be moved together or independently (before and after the cut) to ease the piece detachment process so that the blade could ascent without scratching the cut piece: this system is crucial when cutting hard or special steels.

Cutting Control

7″ touch screen HMI with the following functions:-

  1. Down feed cutting speed
  2. blade speed
  3. Material height (for fast approach and reduced cycle times)
  4. No of pieces to be cut

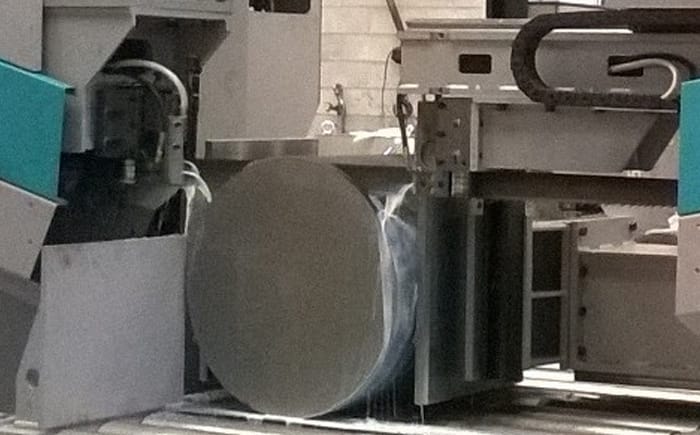

Vice

Powerful hydraulic vice mounted on precision linear rails with bearings and a vice height of 700mm.

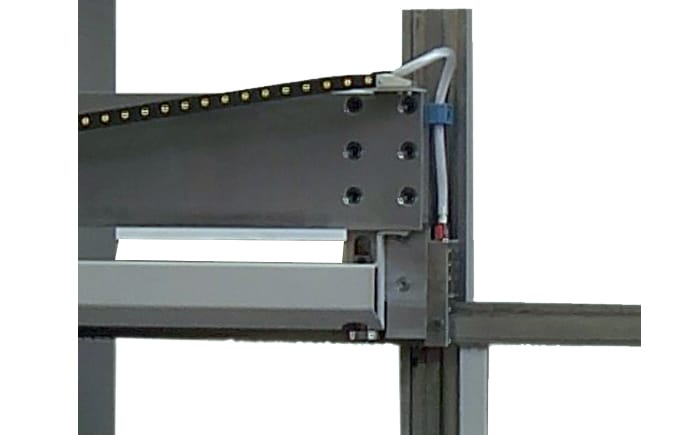

Blade guides

Solid carbide blade guides hydraulically tensioned; and massive pre twist roller bearings ensure that maximum blade life, accuracy and precision are delivered.

Hydraulic Control System

Hydraulic unit provides for low noise level and constant working pressure. The unit turns on only for vices, hydraulic blade guides and blade tension device movements; when the pressure level dramatically lowers (detected by pressure switches), the unit will turn on automatically. (the unit has vice pressure reducer supplied as standard).

Blade Tension

Blade tensioning system is adjustable based on the material and is provided by a 180mm diameter hydraulic cylinder while the machine software checks the tension to have it perfectly set. If the machine isn’t used for a while, the automatic control will release the band to avoid useless stress and strain on it. If a breakage is detected, the cutting process immediately stops.

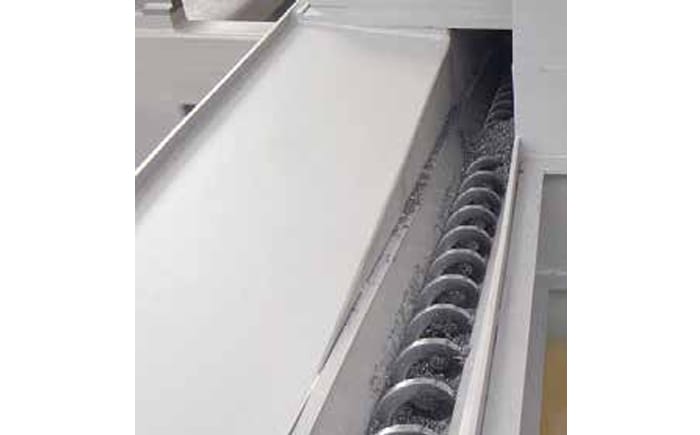

Chip conveyor

XS is equipped with an endless screw type chip conveyor.

Loading/unloading roller table(Optional)

Loading and loading roller table with free rolls and compatible with measurement system. Single module 2m long

Roller table prepared for motorization (Optional)

Roller table with all transmission elements for motorisation. Chain with pinion gears.

Motorization system (Optional)

Motorization system for motorized roller table, recommended every 6m length.
