Velox 350 SHE Cold Saw

Digital setting of the head stroke for fast cycle times

2 speed 1800-3600 rpm for use with TCT & HSS

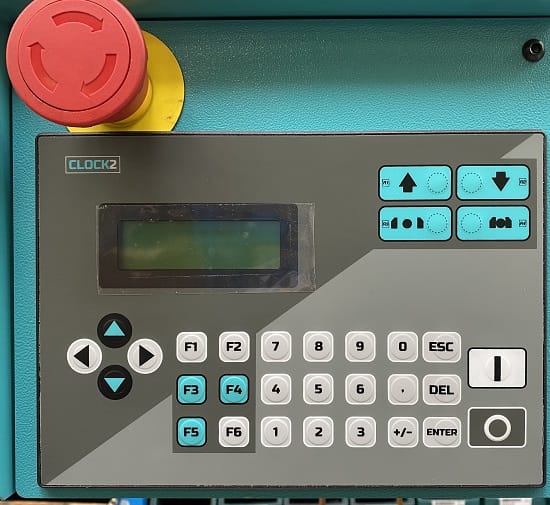

Piece counter and cycle time indicator

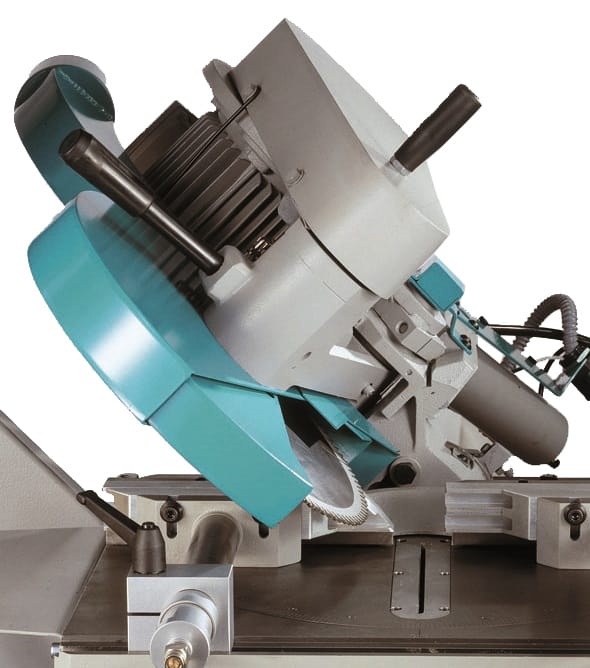

L/H head tilt for compound mitres

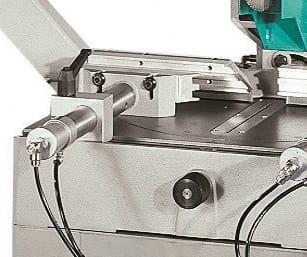

Secure manual clamping

Automatic blade lubrication

Standard pedestal with cabinet

Preparation for swarf extraction

2 Year parts warranty (12 months on site labour)

Add to quote

Categories: Semi-Automatic Aluminium Saws, Compound Mitre Saws

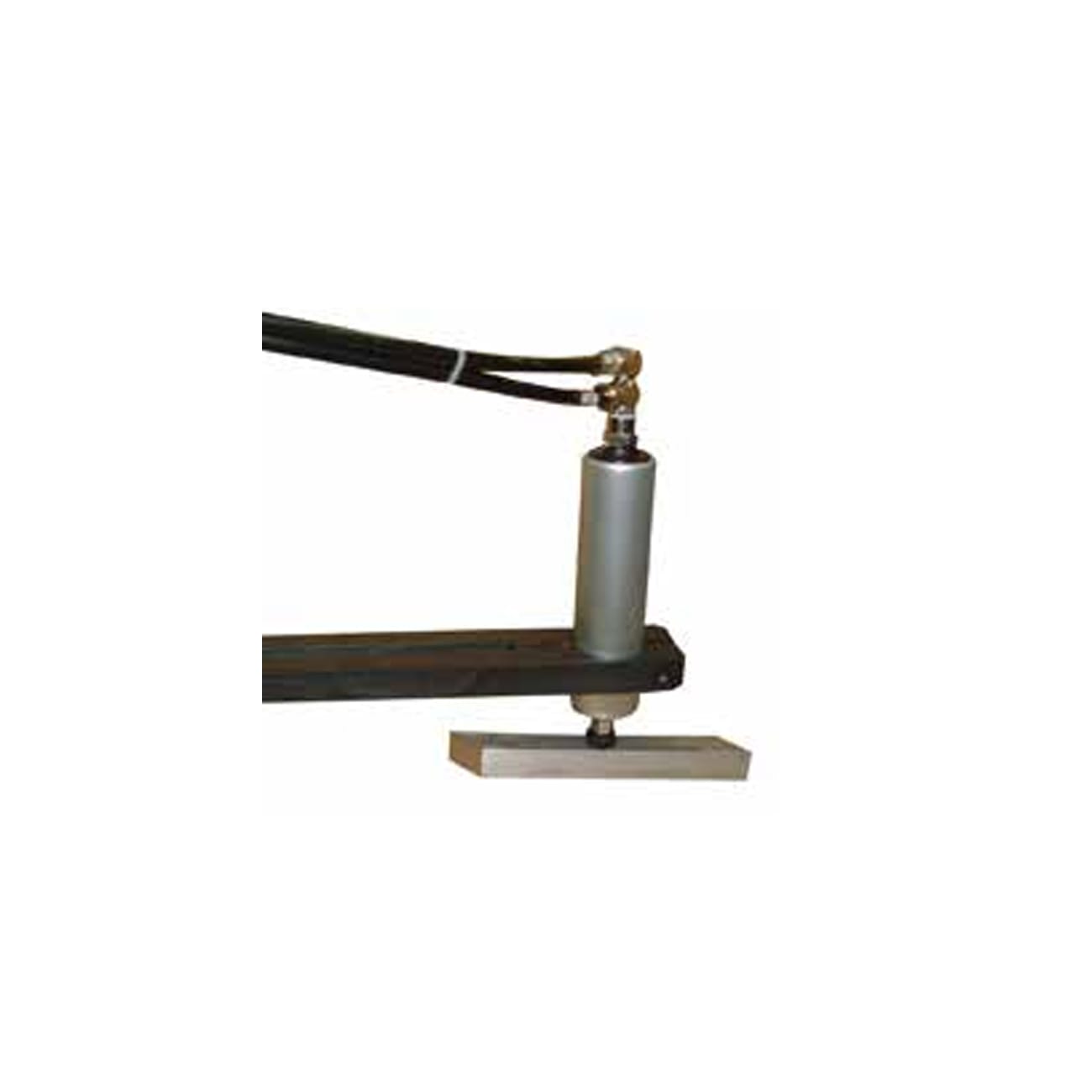

Vertical Vice

Vertical vice

Pneumatic vertical vice for blocking the material.

V Jaws

V jaws (Optional)

Two pairs of cast iron V jaws to fittings bundles and round bars (max diameter 90 mm.) with tools to mount them

Addison EW3 swarf extraction machine image

Swarf Extractor

Addison EW3 swarf extraction system, with steel container, and manual filter shaking system.

Minimal lubrication system for band saws - mist spray

Addimist

Minimal lubrication system (Optional)

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply)

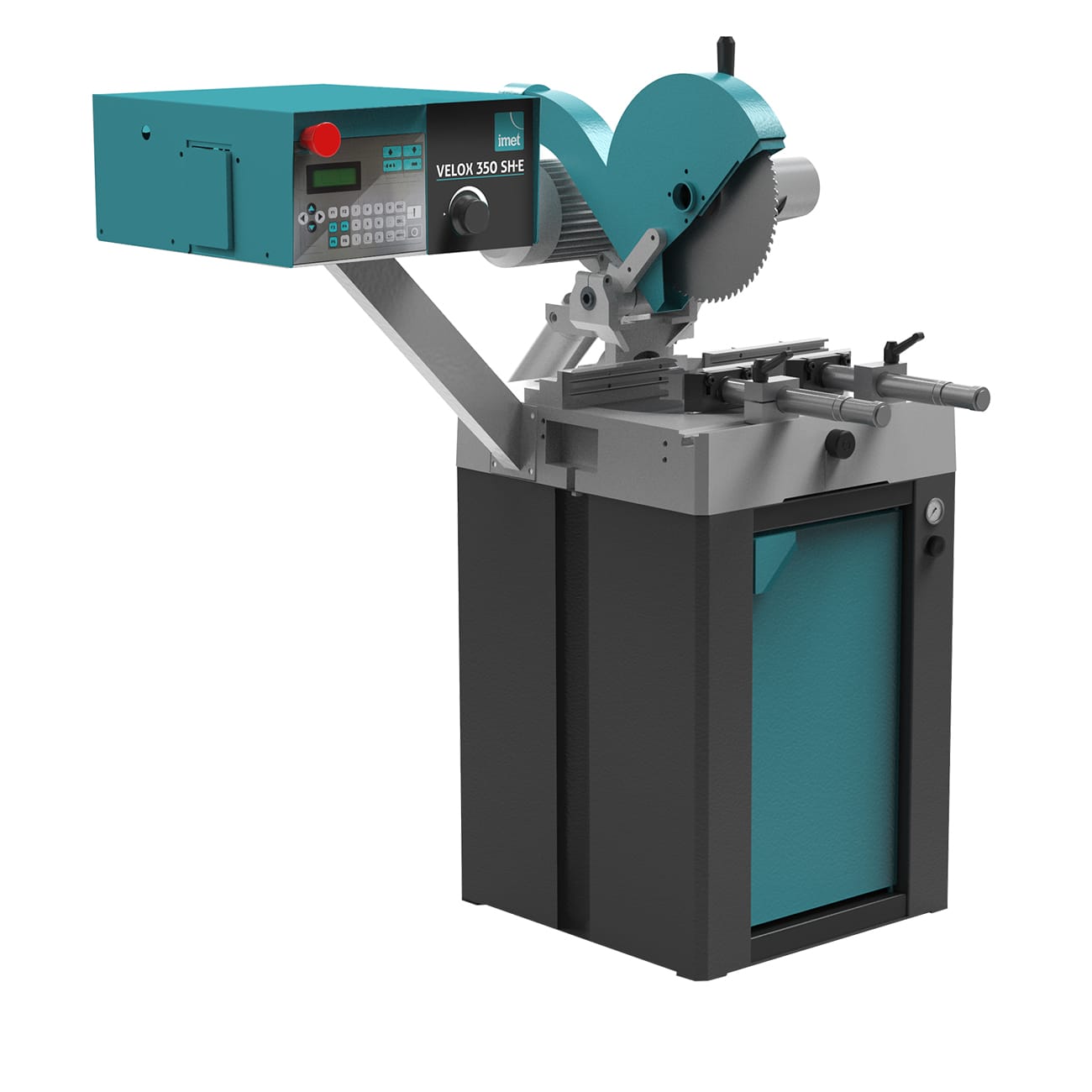

Imet Velox 350 SHE cold saw for aluminium

Semi-automatic circular saw is a professional working tool suitable for cutting aluminium brass, copper & plastic profiles, bars and tubes up to 45° left and right; this machine has also a unique feature that allows to cut up to 45° on the vertical axis. Velox provides for the highest cutting precision and finishing quality.

Cutting capacity at 0°	Round: 120mm Square: 105mm Rectangle: 200x80mm
Cutting capacity at 45° left	Round: 115mm Square: 100mm Rectangle: 150x80mm
Cutting capacity at 45° right	Round: 115mm Square: 100mm Rectangle: 150x80mm
Cutting capacity at 45° vertical	Round: 65mm Square: 60mm Rectangle: 180x50mm
Blade diameter	350mm
Blade speed	1800/3600rpm
Blade motor	1.5/1.8KW
Work table height	865mm
Weight	266kg
Dimensions	1100x920x1700mm

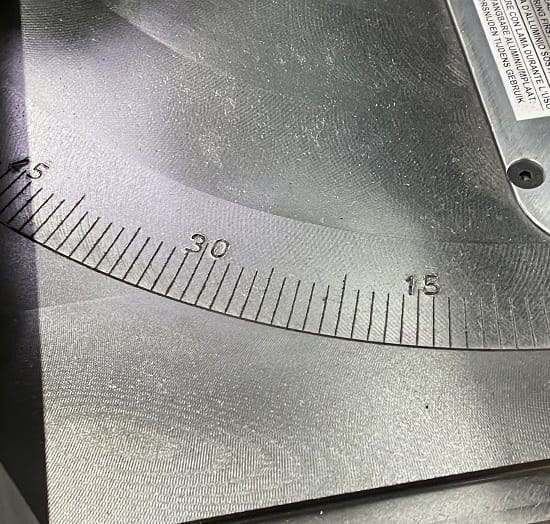

Mitre Angles

Positive angle stops at 0 °, 15°, 15°, 30 ° and 45 ° both to the right and to the left.

Velox-SH-E-data-sheet.pdf
