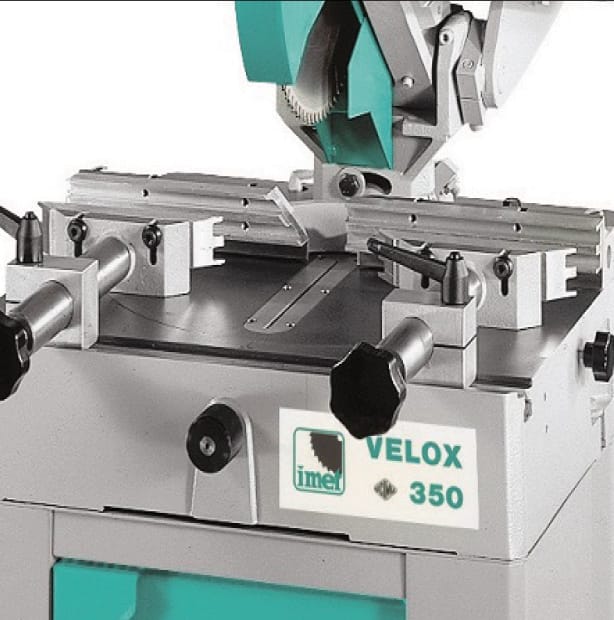

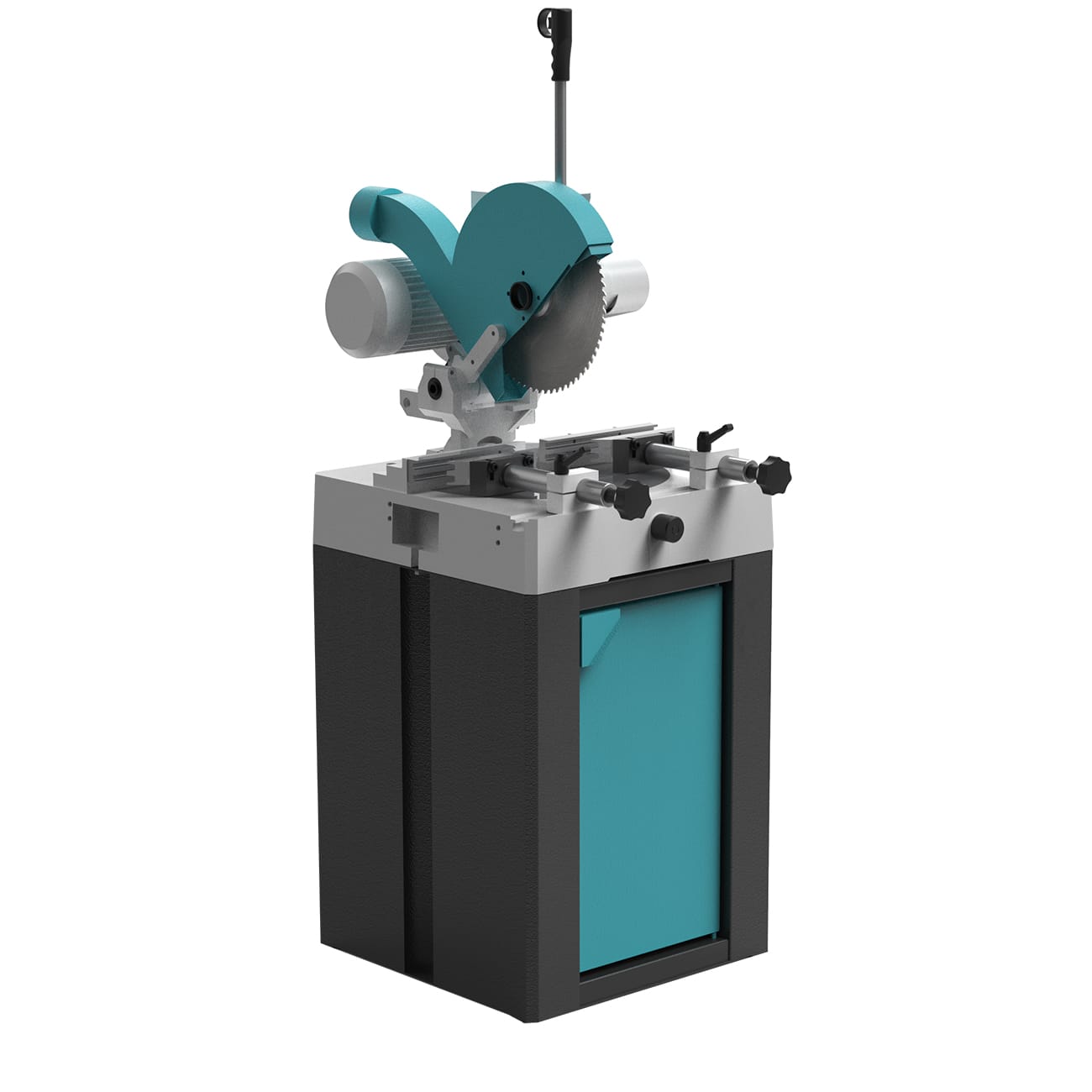

Imet Velox 350 circular saw for aluminium
VELOX 350 is dedicated to cutting profiles and solids in anodized aluminium and light alloys with maximum precision and cutting finish. In addition to the standard horizontal inclination from 45 ° left to 45 ° right, Velox machines also have a vertical head tilt of up to 45 ° and is equipped with automatic an automatic stop system at 0 °, 15°, 15°, 30 ° and 45 ° both to the right and to the left.
| Cutting capacity at 0° | Round: 120 mm
Square: 105 mm
Rectangular: 200 x 80 mm |
| Cutting capacity at 45° left | Round: 115 mm
Square: 100 mm
Rectangular: 150 x 80 mm |
| Cutting capacity at 45° right | Round: 115 mm
Square: 100 mm
Rectangular: 150 x 80 mm |
| Cutting capacity at 45° inclined | Round: 65 mm
Square: 60 mm
Rectangular: 180 x 50 mm |
| Cutting capacity at 0° – 400 mm blade | Round: 135 mm
Square: 120 mm
Rectangular: 200 x 110 mm |
| Cutting capacity at 45°left – 400 mm blade | Round: 130 mm
Square: 115 mm
Rectangular: 150 x 110 mm |
| Cutting capacity at 45°right – 400 mm blade | Round: 125 mm
Square: 110 mm
Rectangular: 150 x 100 mm |
| Blade diameter | 350 mm |
| Blade speeds | 1800-3600 rpm |
| Blade motor | 1.5/1.8 KW |
| Dimensions (without stand) | 610 x 880 x 990 mm |
| Weight | 163 kg |
