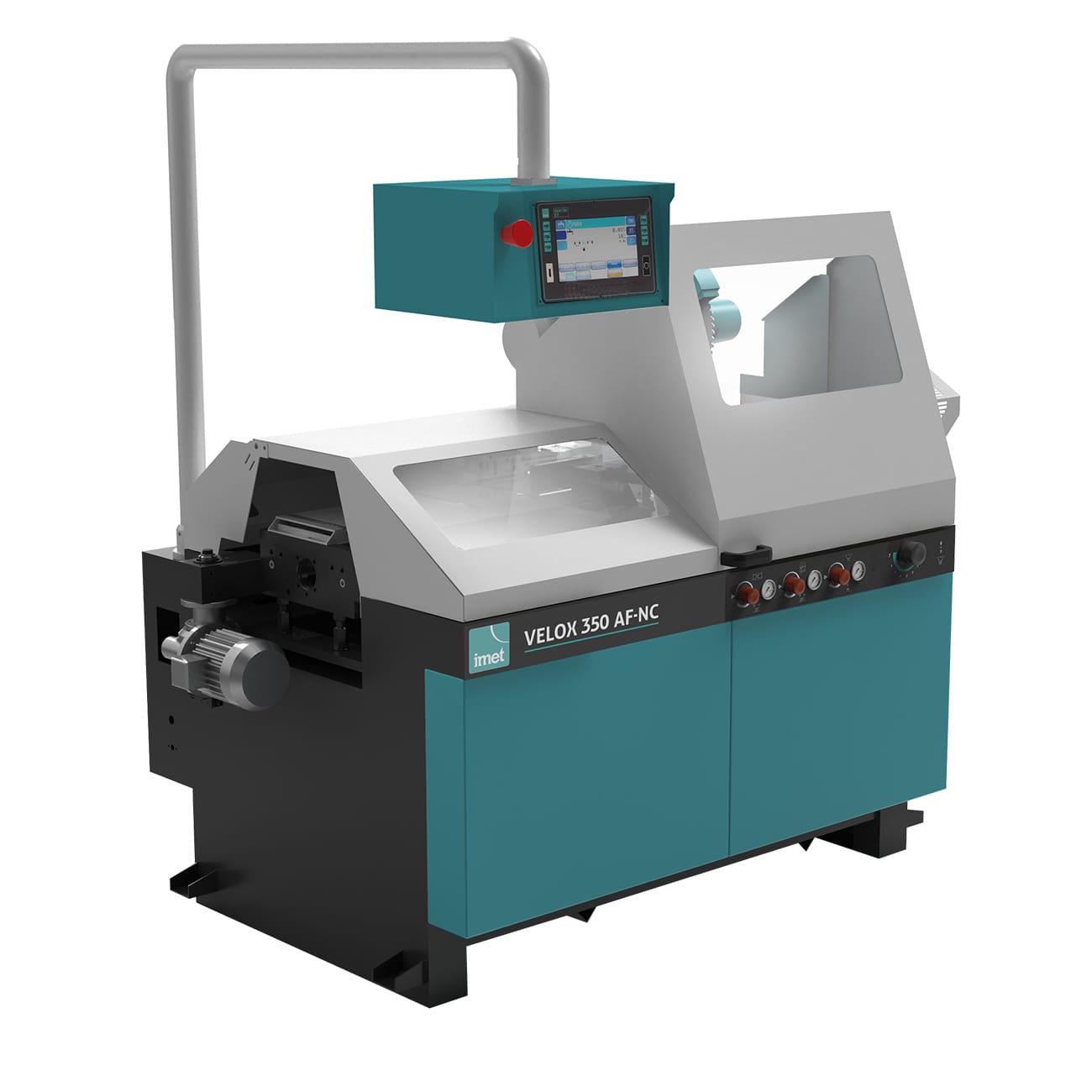

Imet Velox 350-AF-NC90
Imet Velox 350-AF-NC90 - Image 2
Imet Velox 350-AF-NC90 - Image 3
Imet Velox 350-AF-NC90 - Image 4
Imet Velox 350-AF-NC90 - Image 5
Imet Velox 350-AF-NC90 - Image 6
Imet Velox 350-AF-NC90 - Image 7

Imet Velox 350-AF-NC90

Multi-function colour touch screen HMI
90° cutting with clamping very close to the sawblade
Program jobs remotely & transfer to machine (optional)
30mm scrap end
Remote access for reporting & machine operation (optional)
Individual job material optimisation
Rapid Programming at machine
Full high level on screen diagnostics

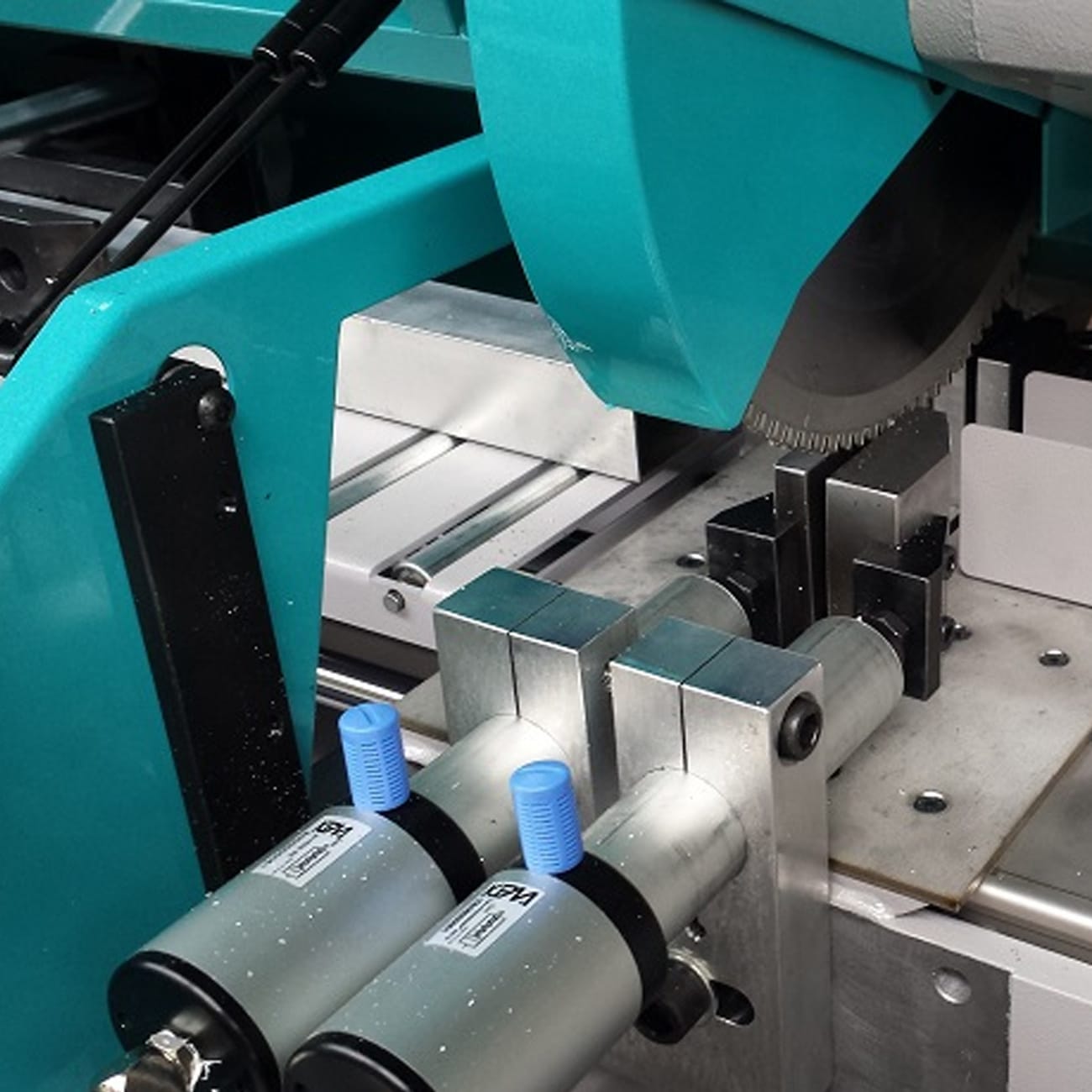

Horizontal & vertical quick action pneumatic clamps
Option for bundle cutting of small tubes
550mm feeder (option for 1200mm)
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

CNC automatic circular saw machine for aluminium

Automatic circular saw VELOX 350 AF-NC 90° is developed to cut aluminium, light and non-ferrous materials with high precision and accuracy; the machine is designed to cut only at 0° with a reduced final scrap-end (30 mm).

Cutting capacity at 0°Round: 120mm
Square: 105mm
Rectangular: 200x80mm
Min. scrap-end30mm
Blade speed3600rpm
Blade diam.350mm

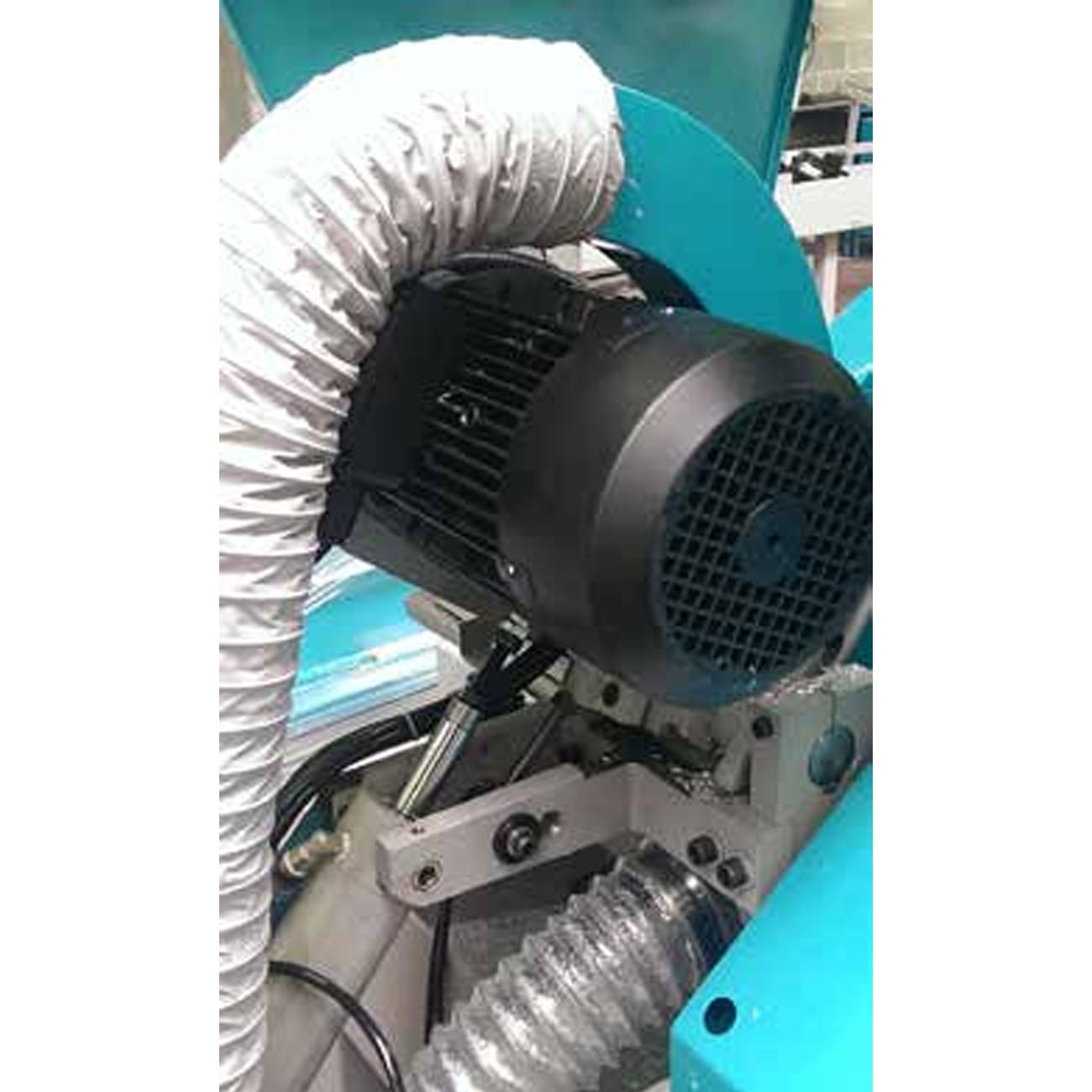

Blade Motor2.2KW (3KW in option)
Feeder stroke550mm (Option for 1200mm)
Min. cutting length in automatic. cycle15mm
Working table height930mm
Coolant tank capacity4.0l
Weight607kg
Dimensions1800x1450x1950mm
ADDIMIST SPRAY MIST cutting fluid system
Addimist

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply)

SLB inclined car loader for aluminium saw
SLB Inclined Bar loader

6000mm or 3000mm bar loader for SIRIO 370 AF-NC: suitable for tubes (20mm-90mm), square (80x80mm), for solids (max 50mm).The structure in metal profiles, the front protection in tubular and perforated sheet guarantee maximum protection for the operator. Fully automatic, the management system allows you to to optimize your job.

Bar loader reduction kit image
Bar Reduction Kit

Bar loader reduction kit (FROM 20 TO 10MM) for bar loader

Bundle Bar Loader Image
Bundle Bar Loader

The bundle loader allows you to load a bundle from 48mm to 90mm max. by chain transmission Managed by CNC numerical control, it is compatible with CNC automatic disc machines and allows to load up to 3 tons of bars with a length of 6m.

Imet industry 4.0 feature image
Industry 4.0

Industry 4.0 – SAWFACTORY (Optional). All IMET automatic sawing machines can be connected to the company network via modem and ethernet cable: SAWFACTORY software is also available for remote monitoring, assistance, programming and management from remote of the cutting process. The software allows to transfer data and programs from the PC (where it is created the program) to the machine via USB. Discover SAWFACTORY: https://bit.ly/2RuxHuX

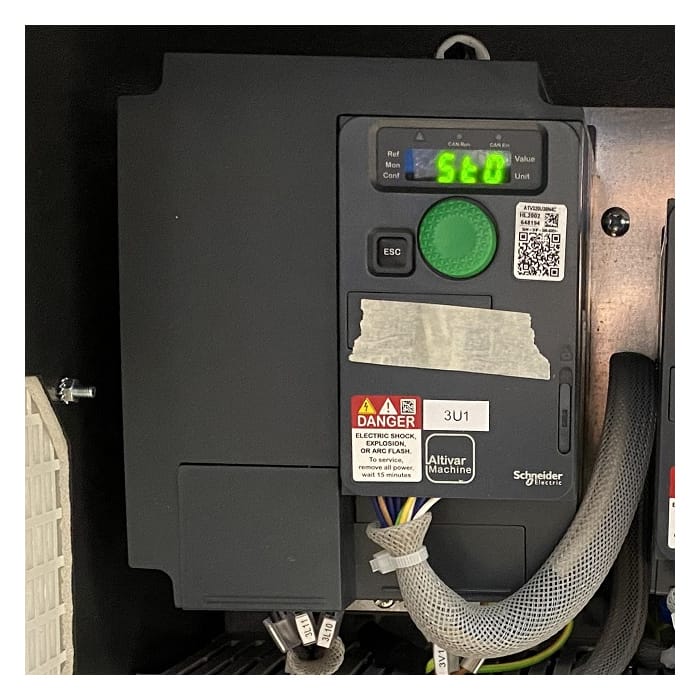

Imet saw blade speed inverter image
Inverter

VELOX can be used to cut not only aluminium but also these non-ferrous materials: brass, copper and bronze. To do that its’s required to install an additional speed variator with inverter (800-2200rpm) with 3KW motor.

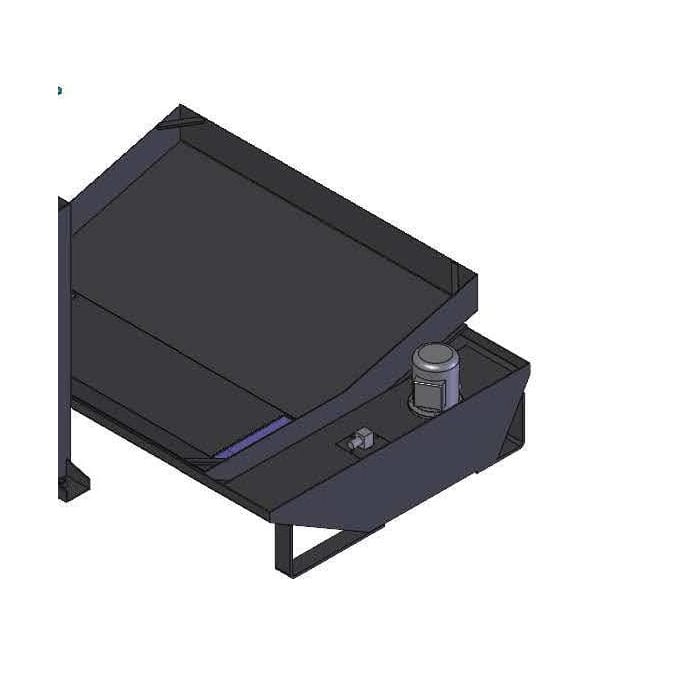

Imet velox flood lubricant image
Flood Lubricant System

In order to have perfect cleaning and working cycle, when cutting bronze, brass and copper the machine must be also configured with a dedicated lubrification system with coolant liquid, blowers and additional collection tank.

Addison EW3 swarf extraction machine image
Swarf Extractor

Addison EW3 swarf extraction system, with steel container, and manual filter shaking system.

Standard feature icon
Mitre Cutting

Manual set Left/right mitre cuts & one way tilt for compound cuts

Standard feature icon
Lubrication

Mist spray blade lubrication (option: Addimist pure oil micro mist)

Standard feature icon
Multiple Indexing

Multiple indexing for long material lengths

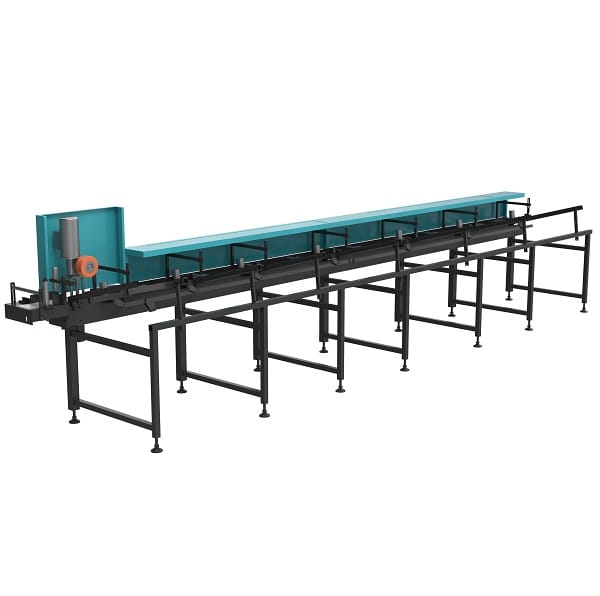

SLB Bar loader 3000
Barloader SLB3000 (Optional)

Barloader for VELOX 350 AF-NC 90°: suitable for tubes (20mm-90mm), square (80x80mm), for solids (max 50mm). The structure in metal profiles, the front protection in tubular and perforated sheet guarantees maximum protection for the operator. Fully automatic, the management system allows you to optimize user workflow. Length 3m.

SLB Bar loader 6000
Barloader SLB6000 (Optional)

Barloader for VELOX 350 AF-NC 90°: suitable for tubes (20mm-90mm), square (80x80mm), for solids (max 50mm). The structure in metal profiles, the front protection in tubular and perforated sheet guarantees maximum protection for the operator. Fully automatic, the management system allows you to optimize user workflow. Length 6m.
