Imet Sirio 370 SH-E Circular Cold Saw

Right hand mitre cuts to 60°
Reverse mode to free jammed blades
Pedestal with coolant tank
Removable swarf collection drawer
Pneumatic vice
Option for synchronised pneumatic vice
Anti-burr off-cut vice (90° cuts only)
Electric Flood coolant system
Adjustable length stop

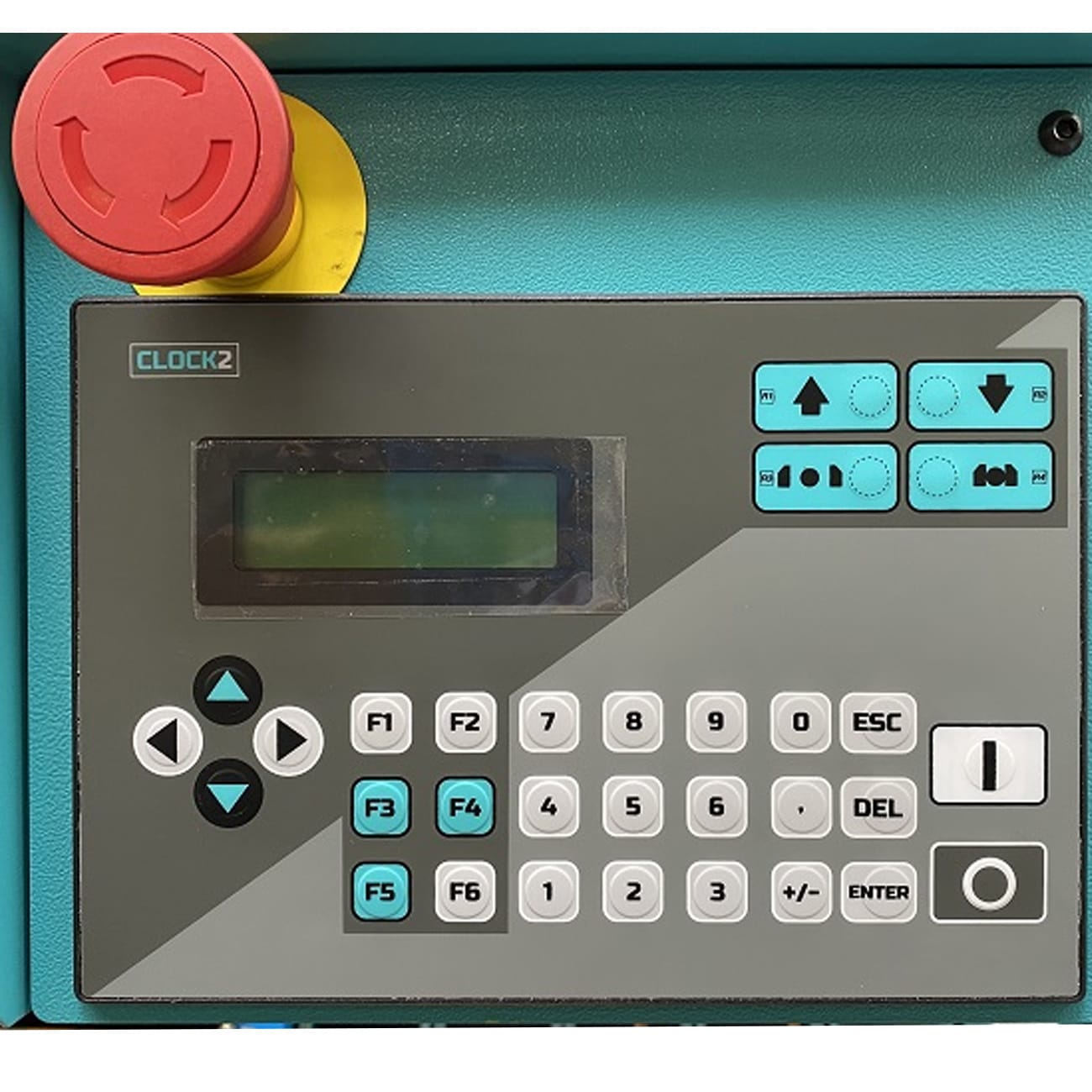

Digital setting of head stroke = fast cycle times
Hydro-pneumatic head feed w/ precise control
Scroll down for specification, optional extras, videos & more ⬇️
Imet blade speed inverter image
Imet Inverter

Electronic variable speed control (15~70rpm) or (30~140rpm)

Imet sirio circular saw V jaw clamp image
Cast iron bundle jaws

Cast iron vee jaws for Sirio cold saws for bundle cutting of tubes up to max 85mm

ADDIMIST SPRAY MIST cutting fluid system
Addimist

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

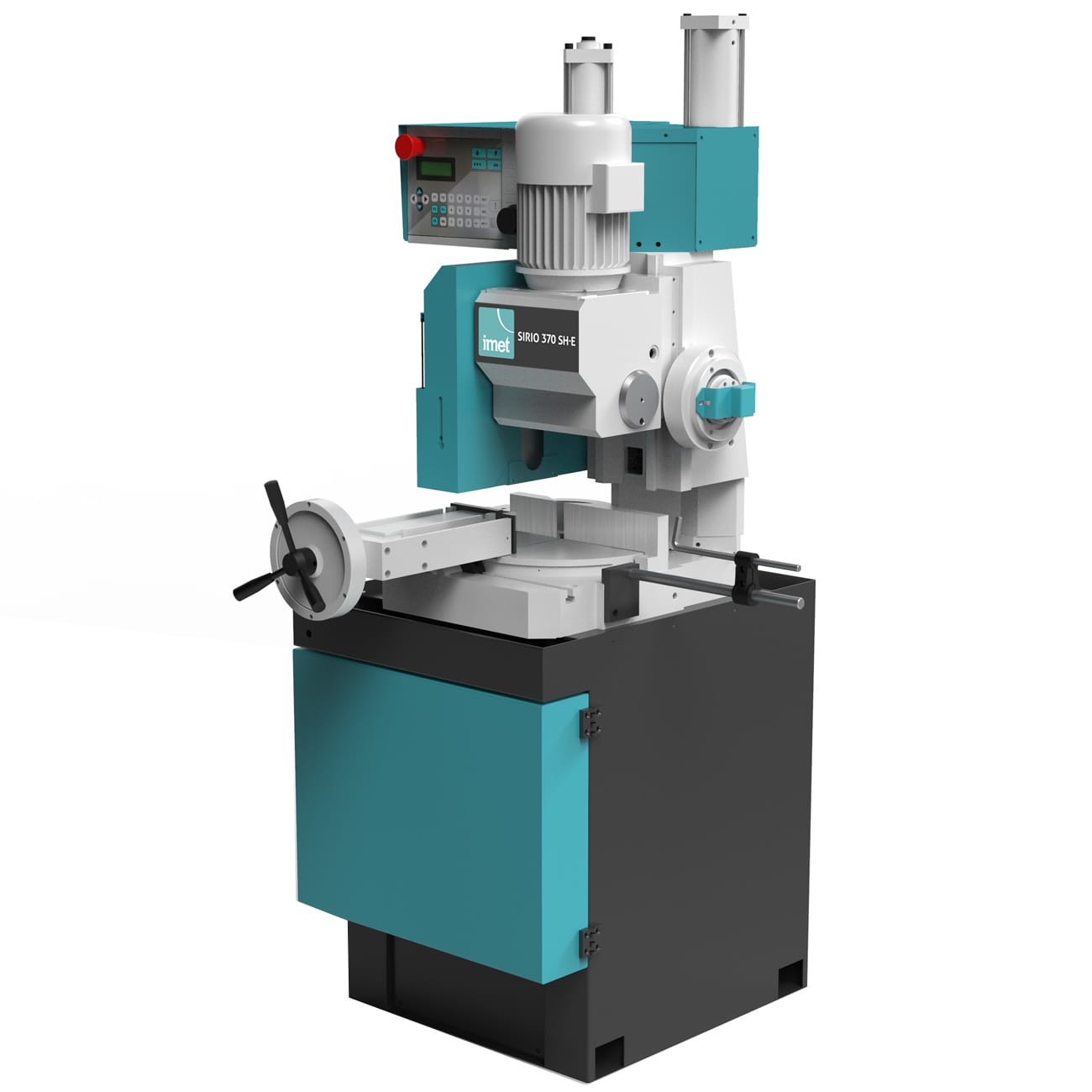

Imet Sirio 370 SH-E circular cold saw

Vertical action heavy duty cold saw highly recommended for production cutting of solid and sectional materials. The Imet Sirio range is recognised as the best available, proven over many years to deliver unbeatable performance and reliability all backed up by an industry leading 2 year manufacturer parts warranty.

Dimensions810x1080x2100mm
Weight443kg
Cutting capacity at 0°Round: 120mm
Square: 100mm
Rectangular: 180x100mm
Cutting capacity at 45° leftRound: 120mm
Square: 100mm
Rectangular: 0x100mm
Cutting capacity at 45° rightRound: 105mm
Square: 100mm
Rectangular: 0x100mm
Cutting capacity at 60° leftRound: 110mm
Square: 90mm
Rectangular: x100mm
Cutting capacity (for solids)Round: 0°: 80mm
Blade dimensionsDiam.: 370mm
Blade hole40mm
Blade speed15/70 rpm
Blade motor power3KW
Working table height925mm
