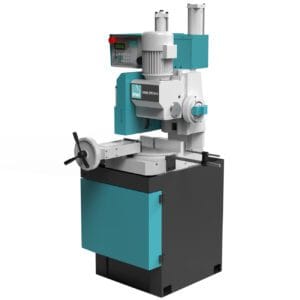

Imet Sirio 315 SH Heavy Duty Circular Saw

Adjustable head stroke for fast cycle times
Right hand mitre cuts to 60°
Rigid vertical column design
Pedestal with coolant tank
Removable swarf collection drawer
Pneumatic vice
Option for synchronised pneumatic vice
Anti-burr off-cut vice (90° cuts only)
Electric Flood coolant system
Adjustable length stop
Hydro-pneumatic head feed w/ precise control
Scroll down for specification, optional extras, videos & more ⬇️
Imet sirio circular saw V jaw clamp image
V Jaw Clamp

Two pairs of cast iron V jaws to fittings bundles and round bars (max diameter 85 mm.) with tools to mount them

ADDIMIST SPRAY MIST cutting fluid system
Addimist

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Imet sirio circular saw vertical vice
Vertical Pneumatic Vice

Pneumatic vertical vice for additional clamping stability. (must be used in conjunction with the pneumatic main vice option)

Imet RTD RTP adapter image
Adaptor

Adapter to synchronize the RTD/RTP table and the head motion

Imet Sirio 315 SH circular saw / cold saw

Vertical action semi-automatic heavy duty circular saw highly recommended for production cutting of solid and sectional materials. The Imet Sirio range is recognised as the best available, proven over many years to deliver unbeatable performance and reliability all backed up by an industry leading 2 year manufacturer parts warranty.

Cutting capacity at 0°Round: 108mm
Square: 93mm
Rectangle: 150x90mm
Cutting capacity at 45° leftRound: 108mm
Square: 93mm
Rectangle: 105x80mm
Cutting capacity at 45° rightRound: 108mm
Square: 93mm
Rectangle: 105x80mm
Cutting capacity at 60° leftRound: 93mm
Square: 80mm
Rectangle: 75x90mm
Cutting capacity at 0° with 300mm bladeRound: 100mm
Square: 84mm
Rectangle: 140x80mm
Cutting capacity at 0° (solids)60mm
Blade sizeDiam.: 315mm
Blade speed17/33 rpm
Blade doubled speed (optional)33/66 rpm
Blade motor power1.5/1.8 KW
Working table height920mm
Dimensions800x900x1950mm
Weight360kg



Find out more about Imet Saws
