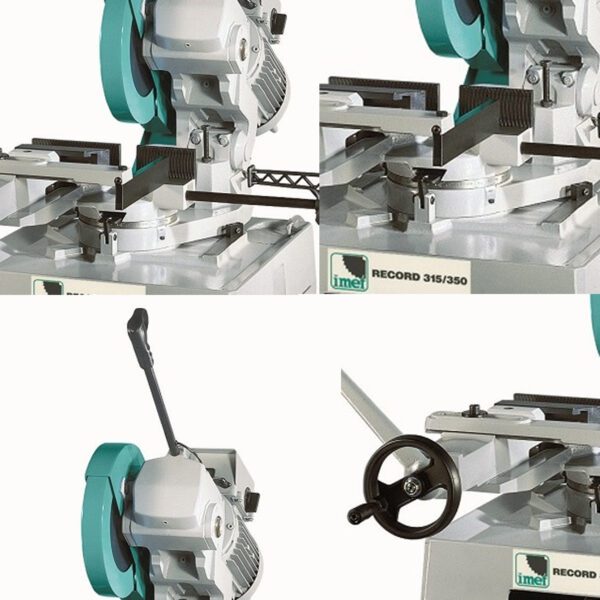

Imet Record 350 Circular Saw

Bench mounted

Opt. Pedestal w/ cabinet for floor mounting

Option for double vice version

Quick action manual vice

Option for synchronised pneumatic vice

Anti-burr offcut vice (90° cuts only)

Flood coolant system

Adjustable length stop

Ability to do longitudinal cuts

Adjustable clutch

Adjustable back fence for low resistance cutting of square sections

Add to quote

Imet Record 350 Circular Saw

A time served machine noted for its build quality and reliability which is underlined by the industry leading 2 year manufacturer parts warranty. Highly recommended circular saw for demanding applications.

Cutting capacity at 0°	Round: 125mm Square: 110mm Rectangular: 160x90mm
Cutting capacity at 45°left	Round: 105mm Square: 90mm Rectangular: 80x100mm
Cutting capacity at 45°right	Round: 70mm Square: 65mm Rectangular: 60x70mm
Blade size	350mm
Blade hole	32mm
Blade speed	30/60rpm
Blade motor power	1.8/2.5KW
Coolant tank capacity	40l
Weight	206kg
Dimensions	600x1200x1060mm

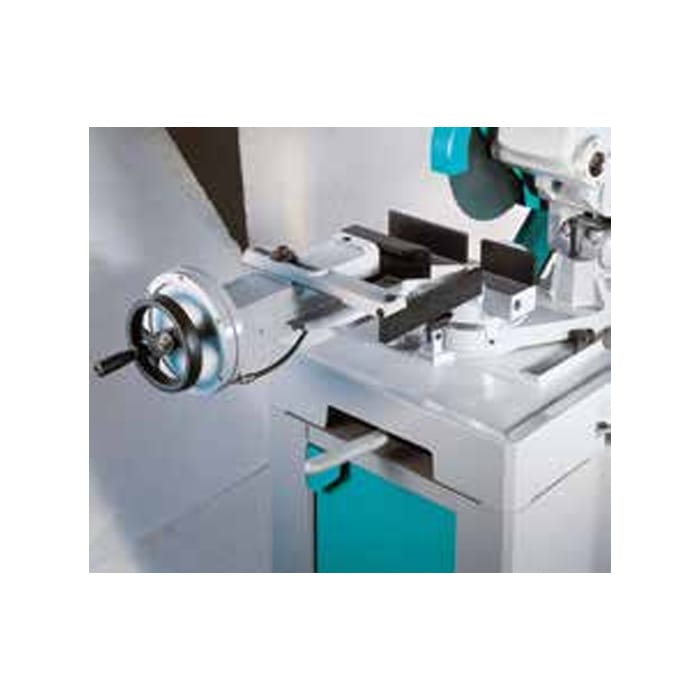

neumatic vice

Pneumatic vice (opening/closing syncIBL hronised with the head motion)

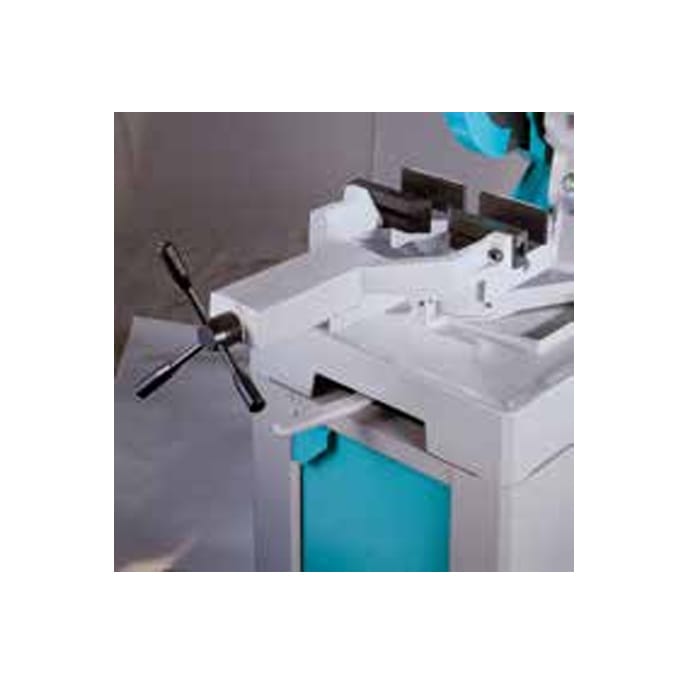

Double Vice

It’s possible to order a double vice with 160mm opening.

Addimist

Addimist pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.
