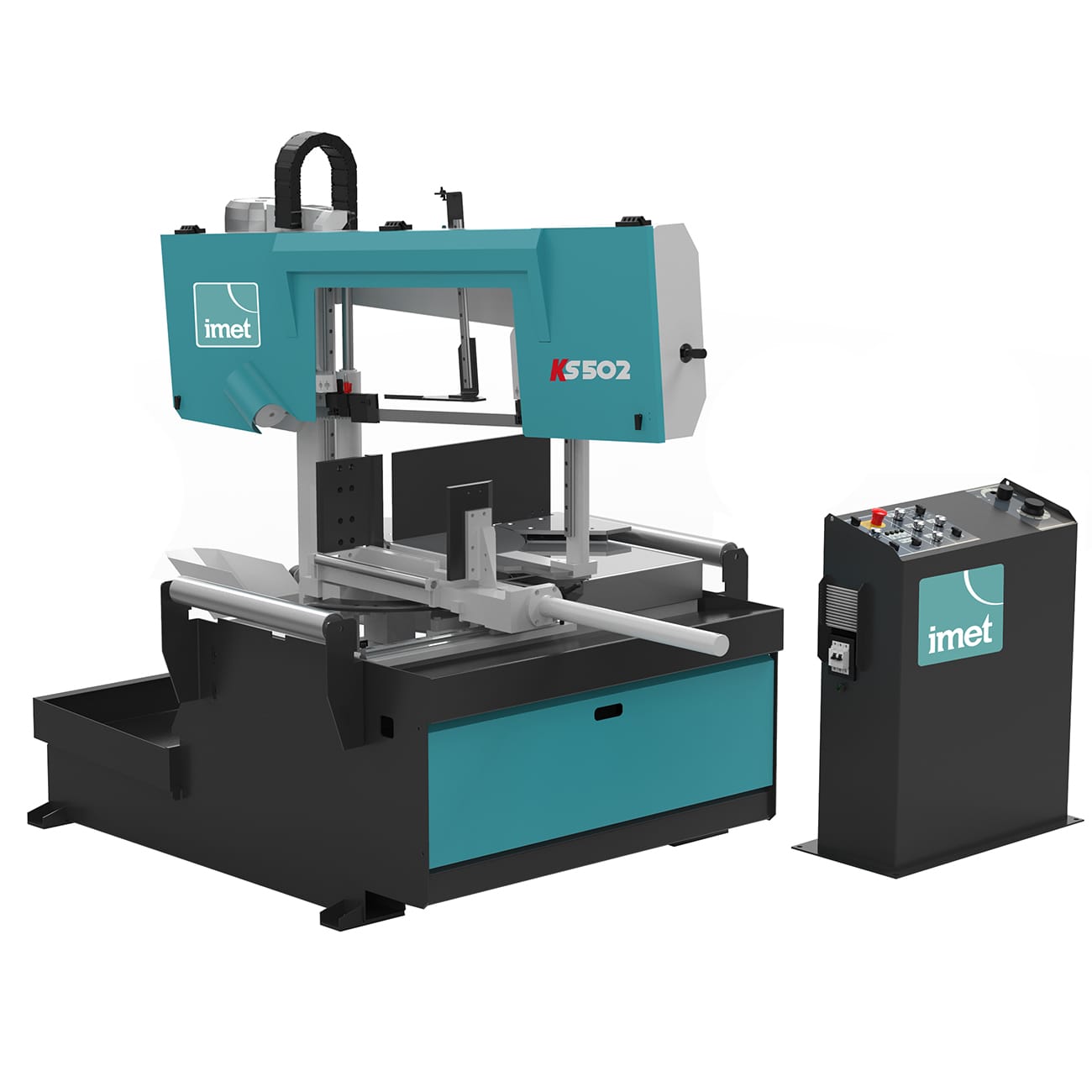

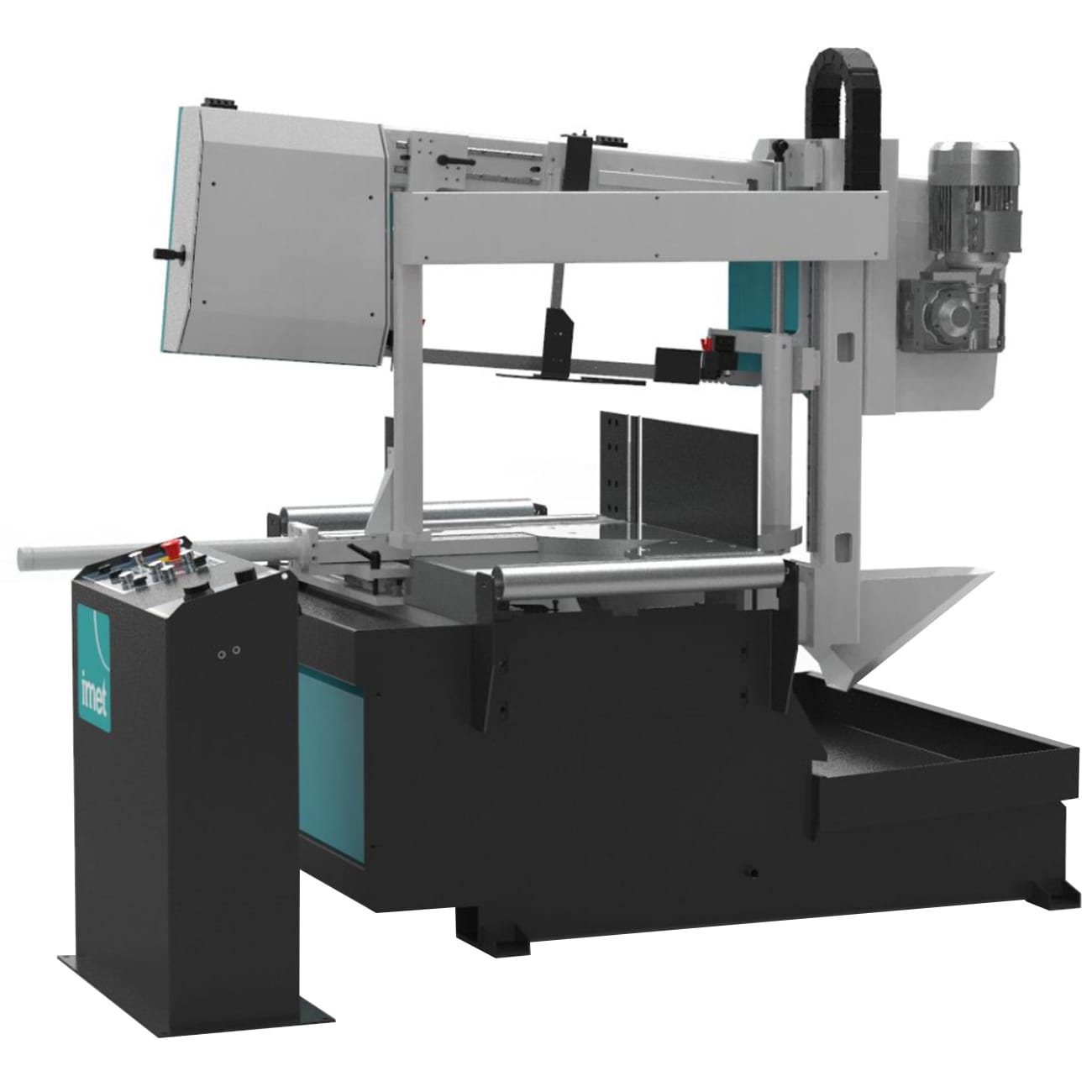

Imet KS502 Band saw

Semi automatic industrial mitre saw
Mitre cuts up to 60° left and 60° right
6° Inclined blade for optimum cutting
Variable blade speed with inverter
Hydraulic clamping/cutting action
Material height sensor with rapid approach
Manual blade tension with micro switch
Blade breakage detection & auto shutdown
2 Year parts warranty (1 year on site labour)
Powered blade cleaning brush

Imet KS502 Band saw

Ideal for cutting solid and sectional steel in industrial environments, especially square section steels where the 6° canted saw bow offers the line of least resistance through the entire cut, giving extending blade life, faster cutting times and less stress on the machine components. The KS502 is constructed to work in a demanding environment where ease of use, performance and reliability are demanded. This is underlined by the industry leading 2 year manufacturers parts warranty.

Cutting capacity at 90° Round: 350mm – Square: 330mm – Rectangular: 500x310mm
Cutting capacity at 45° left Round: 300mm – Square: 300mm – Rectangular: 00x320mm
Cutting capacity at 45° right Round: 320mm – Square: 320mm – Rectangular: 20x320mm
Cutting capacity at 60° left Round: 150mm – Square: 150mm – Rectangular: 50x320mm
Cutting capacity at 60° right Round: 150mm – Square: 150mm – Rectangular: 50x330mm
Cutting capacity (BUNDLE) Max: 500x250mm – Min: 160x40mm
Cutting capacity at 90° for solids(C45) 280mm
Min. scrap-end with bundle 235mm
Blade motor 2.2KW
Blade speed Variable 15 to 100 m/min
Blade size 4250x34x1.1mm
Blade tension 2000kg/cm2
Weight 1200kg
Battery Laser Line

Premium quality German battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line.

Laser Line-61

Mains powered laser line for quick positioning of material when cut length tolerance is not over critical.

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

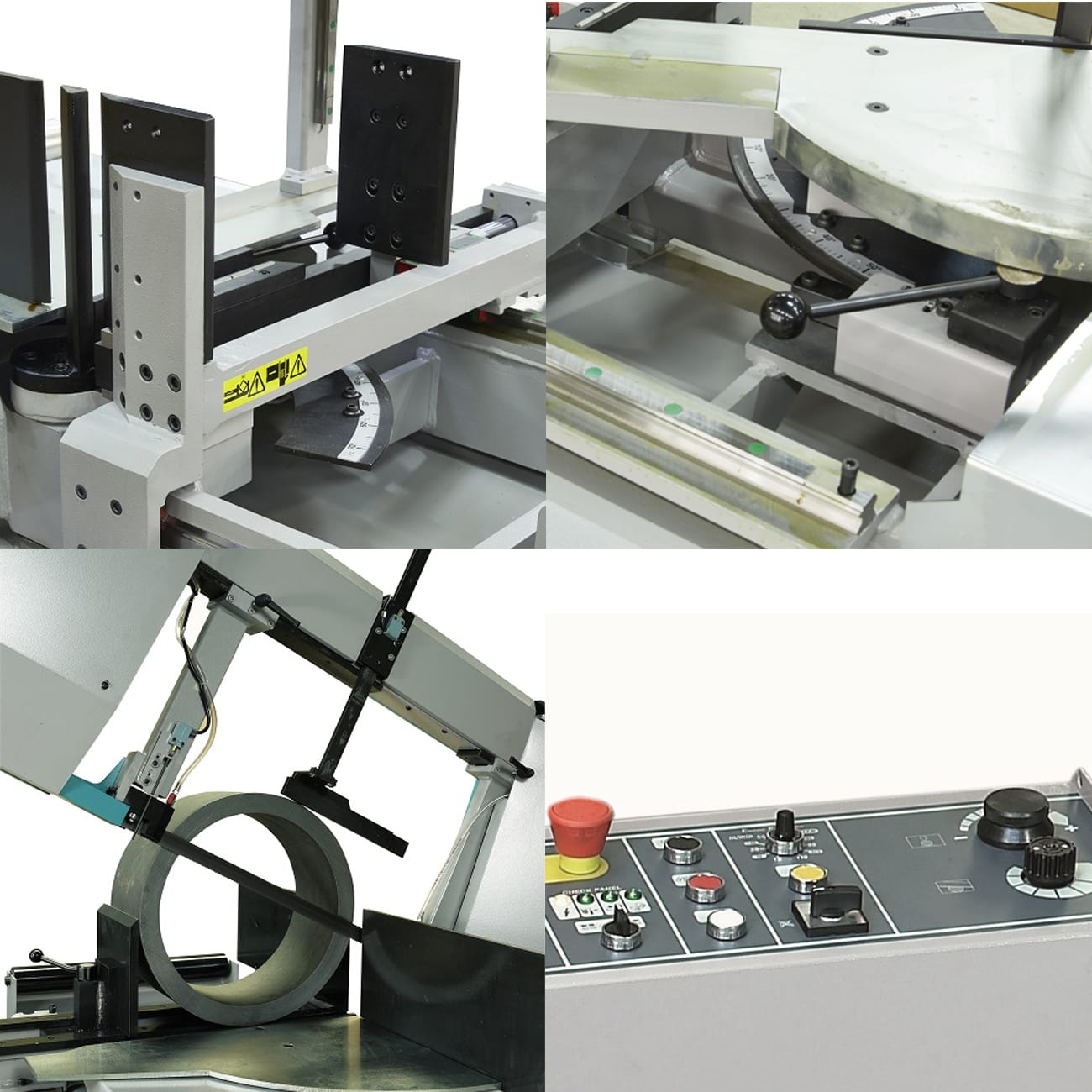

Vice

Quick set design with short acting cylinder and standard pressure reducer for thin wall material. The vice can be positioned either side of the saw blade depending on the mitre direction.

Angle cutting precision

The cutting precision is ensured by the large graduated scale. Included are positive stop locations at 45°left, 0 ° and 45 ° right.

Sawframe

With a heavy steel structure, the blade has an inclination of 6 ° to improve the penetration in the material and optimize cutting of square sections and flat plate reducing cycle times, extending blade life and reducing load on the machine components. The rotation of the bow is on precision bearing for ease of operation The blade of KS 502 has a tensioning of 2000kg / cm2 and is equipped with a control microswitch for immediate stop in case of blade breaking or power failure.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Material detection device

Device to automatically detect the material height, this unit allows fast approach to the material before switching to the selected speed for the cutting cycle. The blade is only raised 1mm above the cut piece to reduce cycle times.

Cutting Control

KS 502 is equipped with a mobile control console with  LED confirmation for tensioning the blade, opening of the blade guard, motor thermal block and electrical tension. Through the control panel the operator can choose between 3 different ways of cutting end: return of the blade – not running – running or not returning after cut end.

Blade Cleaning Brush

Powered blade cleaning brush to enhance blade life and performance.

Loading/unloading roller table (Optional)

Roller conveyor suitable for the unloading and loading side. Length 1.5m, 1 pedestal, max loading 1500kg.

Digital unloading roller table (Optional)

Unloading roller table with digital reading and manual movement. Available : -RTL3KS600 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTL6KS600 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Motorized unloading roller table (Optional)

Unloading roller table with length stop and selection of the lengths by means of a keyboard Available: -RTP3KS450 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTP6KS450 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Motorized loading roller table (Optional)

Loading motorised roller tables, with chain transmission and motor reducer managed by inverter, with mobile keyboard. Available : -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Motorized unloading roller table (Optional)

Unloading motorized roller table (showing optional digital stop) with chain transmission and motor reducer managed by inverter, available only together with loading roller table. Available: -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Digital reading length stop (Optional)

Digital reading length stop with manual positioning with automatic slowdown sensors, available only together with unloading motorized roller table
Measuring length 3m; Measuring length 6m; Measuring length 9m; Measuring length 12m

Motorized length stop (Optional)

Numerical control motorized measurement RR with fast approach and automatic slowdown of the piece (to be ordered coupled with automatic conveyors) -RR6S 6m measuring length -RR9S 9m measuring length -RR12S 12m measuring length

Vertical rollers (Optional)

Pair of containment vertical rollers, made in steel, max 2 pairs for each element 1,5 mt long.

Single vertical roller (Optional)

Single vertical roller, height of 250 mm. to prevent falls, max 2 each 1,5 mt.
