Imet KS 450 FT Band Saw
Imet KS 450 FT Band Saw - Image 2
Imet KS 450 FT Band Saw - Image 3

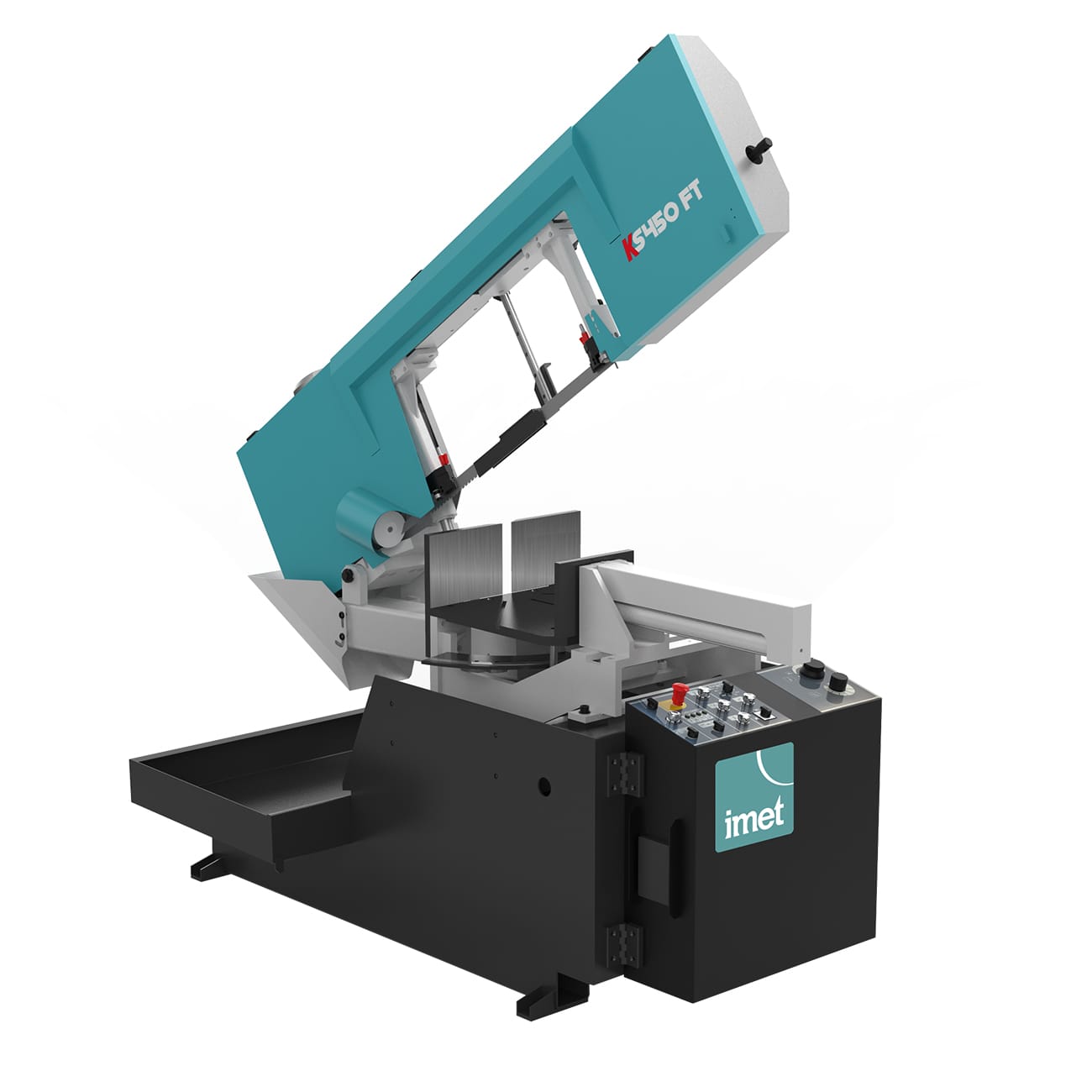

Imet KS 450 FT Band Saw

Material height sensor & rapid approach
Two way swing head easy mitre to 60°
Precise hydraulic downfeed control
Blade breakage detection and shut off
Blade cleaning brush
Static cutting table
Add to quote
Category:

Imet KS 450 FT

This is the compact version of KS450, suitable to cut structural steel, pipe, profile and beams. Mitre cutting up to 60° left and right, easy stop on 0°,45° left, 45° right.

Cutting capacity at 0°Round: 350mm
Square: 330mm
Rectangular: 450x320mm
Cutting capacity at 45° right/leftRound: 330mm
Square: 320mm
Rectangular: 320x300mm
Cutting capacity at 60° leftRound: 210mm
Square: 200mm
Rectangular: 180x270mm
Cutting capacity at 60° rightRound: 160mm
Square: 150mm
Rectangular: 150x270mm
Cutting capacity at 90° (solids)Round: 250mm
Cutting capacity (BUNDLE)Max. 250x120mm
Min. 170x60mm
Blade size4250x34x1.1mm
Blade speed40/80 m/min
Variable speed inverter (ESC)15/100 m/min
Blade motor1.7/2.2 KW
Blade motor with inverter (ESC)2.2 KW
Working table height850mm
Dimensions900x2500x2180mm
Weight865kg
Imet blade speed inverter image
Imet Inverter

Electronic variable speed control (18-110 m/min)

Minimal lubrication system for band saws - mist spray
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Band saw battery Laser Line Option Image
Battery Laser Line

Quality German battery powered laser line. Addison fit item.

Saw Frame

KS 450FT is equipped with rigid welded steel  section bow and 360mm pulleys. Rotation of the arc deploys precision bearings to ensure head rotation is without friction. The optimal alignment of the blade is guaranteed by the blade guide with inserts in carbide and additional pre-twist bearings which reduce blade body fatigue and premature failure.

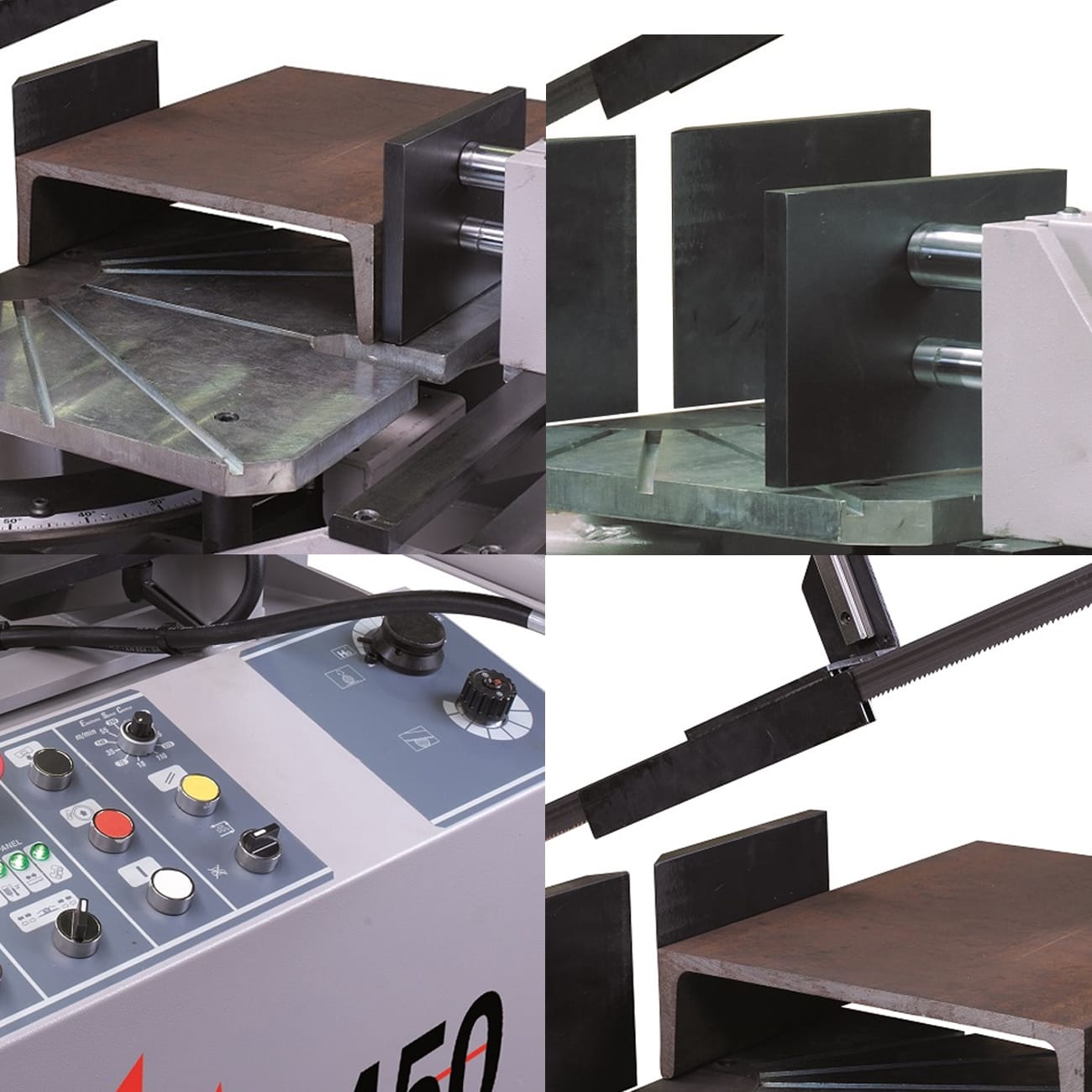

Vice

Full stroke hydraulic vice with 460mm stroke. Can be easily and quickly positioned either side of the sawblade depending on mitre direction. It is standard with a pressure reducer for thin wall material.

Working table

The work surface of the KS 450 FT solid plate with clearance flutes for common angles; the table is equipped with a system automatic stops at 45 ° left, 0 ° and 45 ° right. All other inclinations are viewable through the graduated scale on the cutting table.

Material Detection Device

Device to automatically detect the material height, this unit allows fast approach to the material before switching to the selected speed for the cutting cycle. The blade is only raised 1mm above the cut piece to reduce cycle times.

Imet blade cleaning brush image
Blade Cleaning Brush

Powered blade cleaning brush to enhance blade life and performance.

Cutting Control

The KS450FT is equipped with a mobile control console with  LED confirmation for tensioning the blade, opening of the blade guard, motor thermal block and electrical tension. Through the control panel the operator can choose between 3 different ways of cutting end: return of the blade – not running – running or not returning after cut end.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Loading/unloading roller table (Optional)

Roller conveyor suitable for the unloading and loading side. Length 1.5m, 1 pedestal, max loading 1500kg.

Unloading roller table (Optional)

Unloading roller table with digital display and manual movement : -RTL3KS600 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTL6KS600 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Unloading roller table (Optional)

Unloading roller table with length stop and selection of the lengths by means of a keyboard Available: -RTP3KS600 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTP6KS600 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Motorized loading roller table (Optional)

Loading motorised roller tables, with chain transmission and motor reducer managed by inverter, with mobile keyboard. Available : -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Motorized unloading roller table (Optional)

Unloading motorized roller table (showing optional digital stop) with chain transmission and motor reducer managed by inverter, available only together with loading roller table. Available: -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Digital reading length stop (Optional)

Digital reading length stop with manual positioning with automatic slowdown sensors, available only together with unloading motorized roller table
Measuring length 3m; Measuring length 6m; Measuring length 9m; Measuring length 12m

Motorized length stop (Optional)

Numerical control motorized measurement RR with fast approach and automatic slowdown of the piece (to be ordered coupled with automatic conveyors) -RR6S 6m measuring length -RR9S 9m measuring length -RR12S 12m measuring length

vertical rollers for bandsaws
Vertical rollers (Optional)

Pair of containment vertical rollers, made in steel, max 2 pairs for each element 1,5m long.

Single vertical roller image for bandsaw
Single vertical roller (Optional)

Single vertical roller, height of 250 mm. to prevent falls, max 2 each 1,5m.

KS450-FT-data-sheet.pdf
