Imet H820 Band saw

Twin Pillar semi-auto band saw 680mm capacity (round bar)
Inclined blade for optimum cutting
Automatic setting of the guide arm
Variable blade speed with inverter
41mm wide blade for high cutting rates
Hydraulic split main vice
Material height sensor with rapid approach
Removable swarf collection tank
2 Year parts warranty (1 year on site labour)

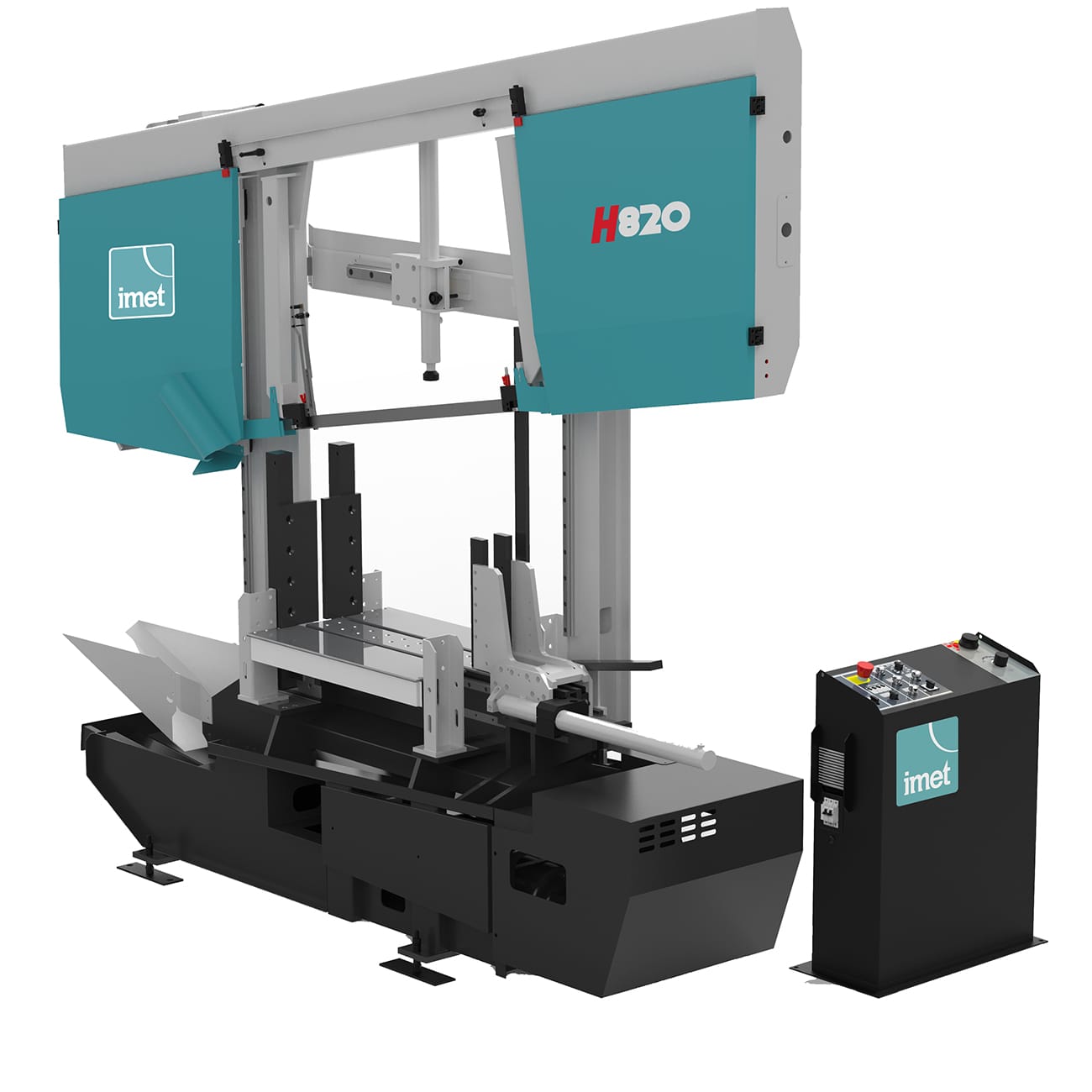

Imet H820 Semi-Automatic Bandsaw

Semi-automatic, hydraulically driven twin column bandsaw for straight cut production work. This saw is built specifically for cutting profiles, pipes, beams and  is highly recommended for square section and flat plate as the inclined sawblade feature offers the line of least resistance on these materials. The bandsaw delivers faster cutting times, increased blade life and scope of use for each tooth pitch, with less stress on the machine components.

Cutting capacity at 90° Round: 810mm
Square: 740mm
Rectangular: 810x740mm
Cutting capacity at 90° full materials 350mm
Blade motor 4KW
Blade speed 15
100 m/min
Blade size 7575x41x1.3mm
Blade tension 2000kg/cm2
Blade inclination
Weight 2300kg
Size 1150x3375x3100mm
Working table height 900mm
Hydraulic unit motor power 0.75KW
Hydraulic unit tank capacity 20l
Blade Deviation Control

It’s available the blade deviation control with stopping system in case of breakage to optimize cutting and working process.

Laser Line

Imet factory fit wired laser line (we have a selection of alternative Addison retro-fit products as well)

Battery Laser Line

Premium quality German battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line.

Addimist

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser detecting system

H 820 uses a laser detecting system to detect the material before cutting and to relieve the first and end cut point during the saw frame descending and ascending.

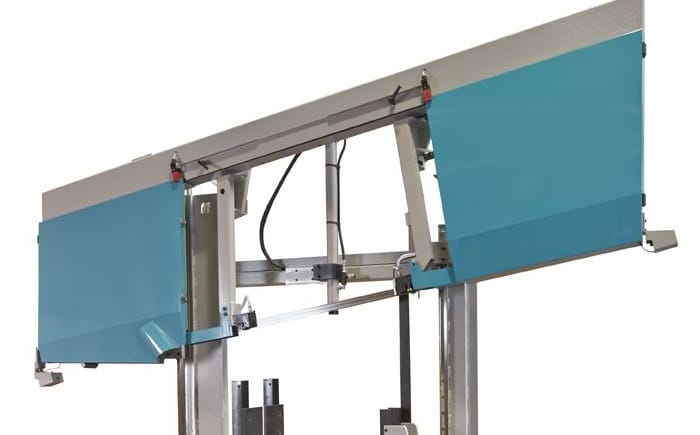

Saw Frame

H 820 has a heavy rigid steel saw frame for maximum stability and vibration absorbtion. Mounted on a large steel column with precision linear guides. To increase the cutting performance, the bandsaw has a very high blade tension (2000kg/cm2).

Blade Inclination

The 5° blade inclination has considerable benefits when cutting square and flat material. With sectional material the line of least resistance is followed through the entire cut. With solid the initial contact is not across the entire width. All of these benefits add up to extended blade life faster cutting times and less stress on the machine components.

Blade Cleaning Brush

The machine mounts a motorized cleaning brush with nylon teeth to extend blade life and improve the cut finish.

Blade guides

Large roller bearing take the strain of twisting the sawblade which then passes through solid carbide blade guides for maximum precision and consistency. The moving guide is automatically synchronised with the vice opening to guarantee it is always in the optimum position.

Vice

Hydraulic full stroke vice clamping both sides of the sawblade to eliminate any break away nib.

Cutting Control

The mobile panel control gives the operator full control on the entire working process and it allows to set and modify all the main operative settings like blade speed and saw frame feeding speed, material penetration. The panel is also equipped with LCD control light.

Free rolls roller table (Optional)

Loading and unloading roller table with free rolls, equipped with 3 vertical containment rolls. Single module length: 2m.

Motorized roller table(Optional)

Roller table prepared for motorization with chain transmission and pinion gearing. The element price is to be intended for a single metre. Requires optional motorisation system. Not including measuring stop.

Motorization system (Optional)

Motorization system for motorized roller table. Recommended every 6m in length. Max speed 10m/min

Motorized length stop with CNC (Optional)

CNC motorized measurement length stop with fast approaching and automatic slowdown of the piece. To be ordered together with RTR motorized roller table. -RR6S measurement length 6m -RR9S measurement length 9m -RR12S measurement length 12m

Vertical rollers (Optional)

Pair of vertical containment rolls in steel. Max 2 pair every 1.5m.
