Imet H800 Bandsaw

Inclined blade for square sections
Automatic setting of the guide arm
Variable blade speed with inverter
34mm wide blade for high cutting rates
Hydraulic split main vice
Material height sensor & rapid approach
Removable swarf collection tank
2 Year parts warranty (1 year on site labour)
Scroll down for specification, optional extras, videos & more ⬇️

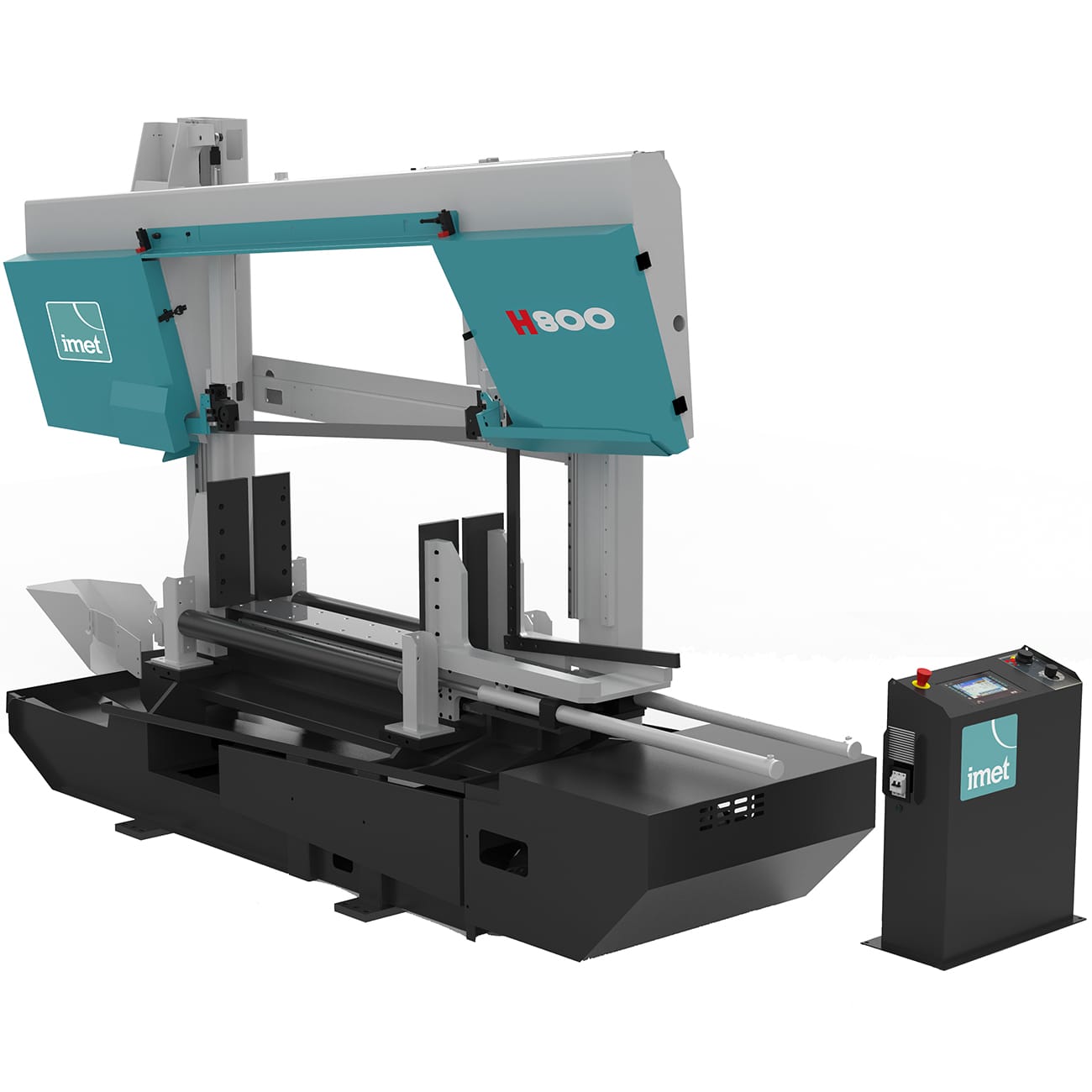

Imet H800 Semi-Automatic Bandsaw

Semi-automatic, hydraulically driven twin column bandsaw for straight cut production work. This saw is built specifically for cutting profiles, pipes, beams and solids and is highly recommended for square section and flat plate as the inclined sawblade feature offers the line of least resistance on these materials. The bandsaw delivers faster cutting times, increased blade life and scope of use for each tooth pitch, with less stress on the machine components.

Cutting capacity at 90°Round: 680mm
Square: 640mm
Rectangular: 820x610mm
Cutting capacity at 90° full material350mm
Bundle cutting capacity800x500mm MAX
50X50mm MIN
Blade motor5.5KW
Blade speedfrom 15 to 100 m/min
Blade size7260x41x1.3mm
Blade tension2000kg/cm2
Band inclination
weight3100kg
Size1550x3600x2700mm
Working table height800mm
Hydraulic unit motor0.75KW
Hydraulic unit tank capacity20l
Blade Deviation Control

Monitoring of the blade deviation with adjustable accuracy settings. If the system detects the desired parameter is exceeded the saw is automatically shut down.

Powered laser line option image
Laser Line

Imet factory fit wired laser line (we have a selection of alternative Addison retro-fit products as well)

Band saw battery Laser Line Option Image
Battery Laser Line

Premium quality German battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line.

imet band saw bundle vice feature image
Bundle Cutting Device

Hydraulic bundle cutting device with maximum capacity of 500x400mm, minimum 50x50mm.

Minimal lubrication system for band saws - mist spray
Addimist

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

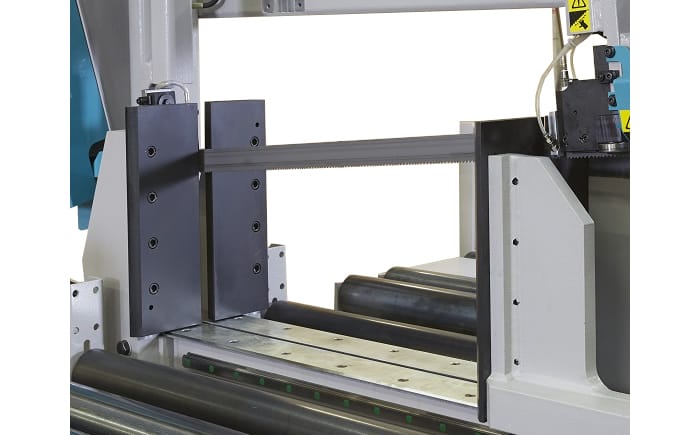

Cutting Table

Large width cutting table to fully support the material right up to the maximum vice opening. Hardened bed plates reduce wear on the surface.

Saw Frame

H 800 has a heavy rigid steel saw frame for maximum stability and vibration absorbtion. Mounted on a large steel column with precision linear guides. To increase the cutting performance, the bandsaw has a very high blade tension (2000kg/cm2).

Blade Inclination

The 5° blade inclination has considerable benefits when cutting square and flat material. With sectional material the line of least resistance is followed through the entire cut. With solid the initial contact is not across the entire width. All of these benefits add up to extended blade life faster cutting times and less stress on the machine components.

Smart-start and fast approach

Once the operator has entered the material height using the touch screen, an encoded system initiates the fast approach to the material and then triggers the selected feed speed during the cutting cycle.

Imet adjustable saw blade guide image
Blade guides

Large roller bearing take the strain of twisting the sawblade which then passes through solid carbide blade guides for maximum precision and consistency. The moving guide is automatically synchronised with the vice opening to guarantee it is always in the optimum position.

Imet blade cleaning brush image
Blade Cleaning Brush

The machine mounts a motorized cleaning brush with nylon teeth to extend blade life and improve the cut finish.

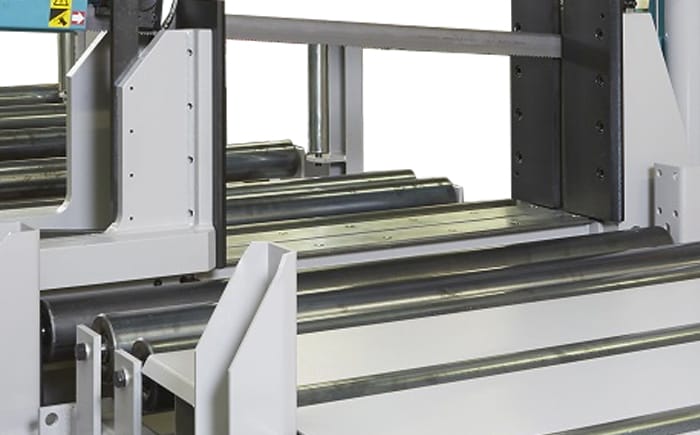

Vice

Hydraulic full stroke vice clamping both sides of the sawblade to eliminate any break away nib.

Imet cutting control unit image
Cutting Control

H series bandsaws are equipped with mobile panel control with touch screen HMI that gives full control on all the cutting parameters: it’s possible to manage lowering speed and power, blade speed and penetration in the material.

Imet loading / unloading roller table RTS image
Loading/unloading roller table (Optional)

Loading and unloading roller table with free rolls. Single module 2m with 2 containment vertical rolls on one side.

Roller table prepared for motorization (Optional)

Roller table prepared for motorization with chain transmission and pinion gearing. The element price is to be intended for a single metre. Requires optional motorisation system. Not including measuring stop.

Motorization system (Optional)

Motorization system for motorized roller table. Recommended every 6m in length. Max speed 10m/min

Motorized length stop with CNC (Optional)

CNC motorized measurement length stop with fast approaching and automatic slowdown of the piece. To be ordered together with RTR motorized roller table. -RR6S measurement length 6m -RR9S measurement length 9m -RR12S measurement length 12m

vertical rollers for bandsaws
Pair of vertical rolls (Optional)

Pair of vertical containment rolls made in steel. Max 2 pairs every 1.5m.

Single vertical roller image for bandsaw
Vertical roller (Optional)

Single vertical roller with 250mm to prevent falls while moving the pierce. Max 2 each 1.5m.
