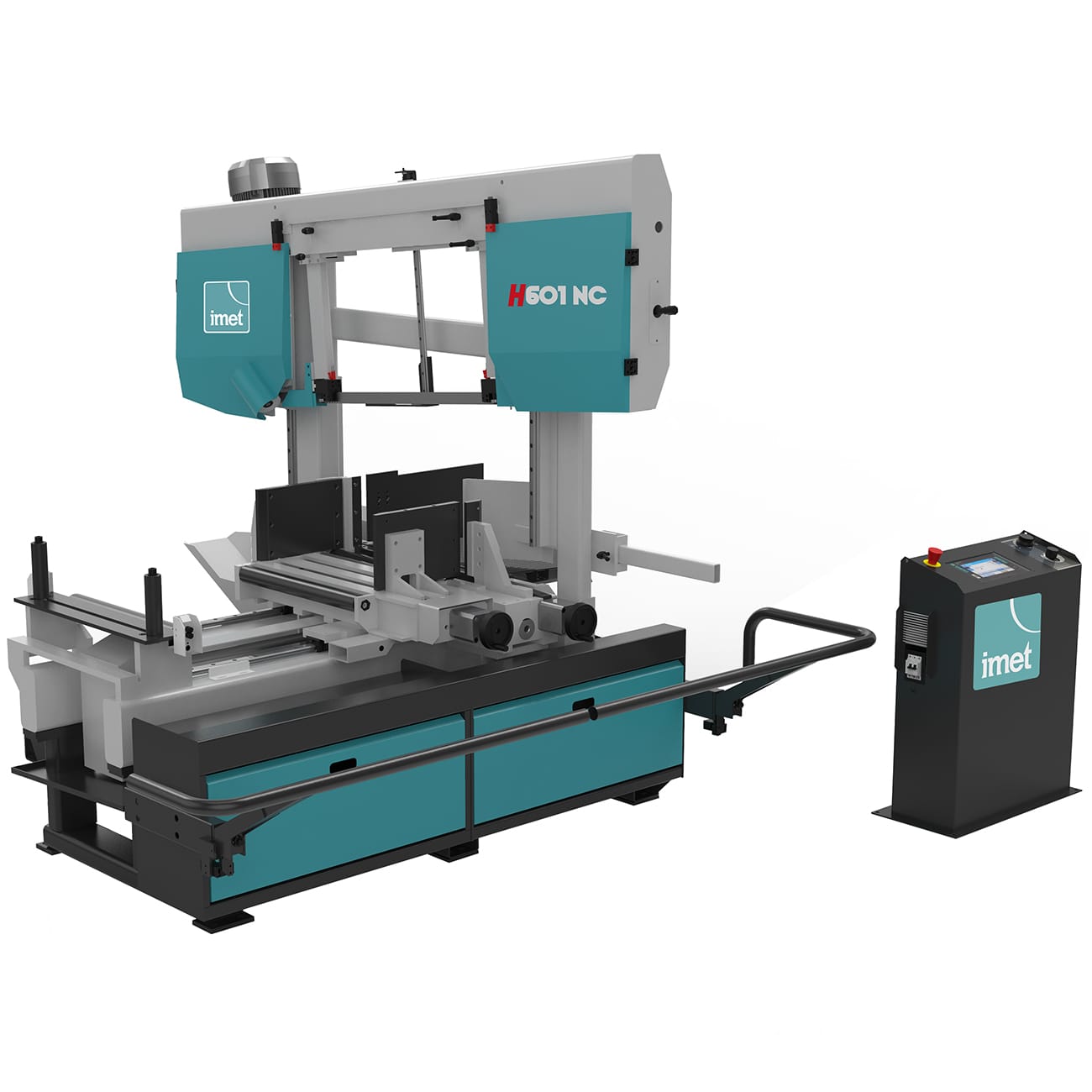

Imet H601 NC F500 + F1500 Bandsaw

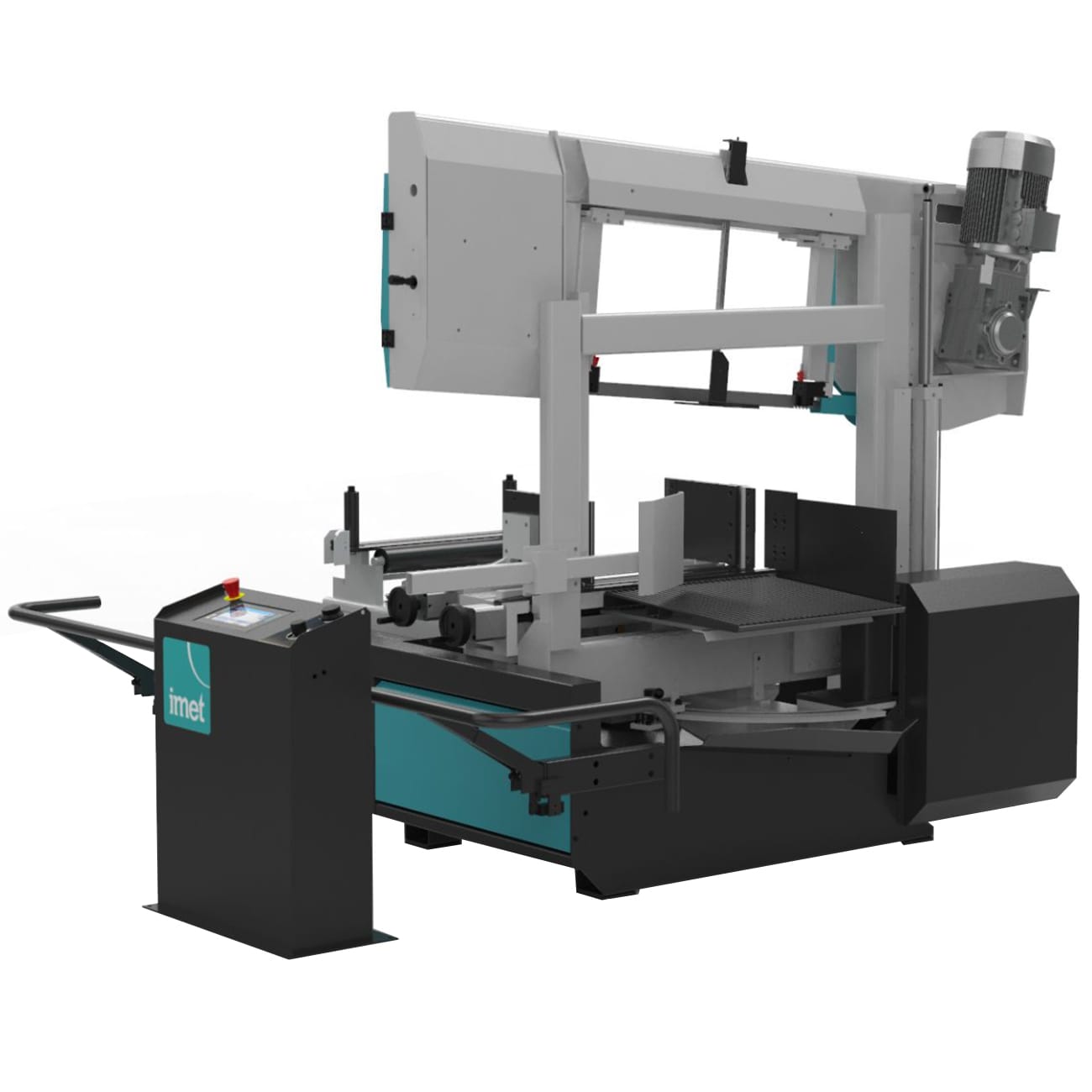

Imet H601 NC F500 + F1500 Bandsaw - Image 2
Imet H601 NC F500 + F1500 Bandsaw - Image 3
Imet H601 NC F500 + F1500 Bandsaw - Image 4

Imet H601 NC F500 + F1500 Bandsaw

F500 version with 550mm ballscrew feeder
F1500 version with 1500mm ballscrew feeder
Feeder scope 4mm to 9999mm
Manual right hand mitre cuts to 60°
CN control with 99 cutting programs
Short last piece of 100mm
Material height sensor w/ rapid approach
Swarf collection tray
6° inclined saw blade for maximum performance
2 year parts warranty (1 year on site labour)
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

Imet H601 NC F500 & F1500

A very flexible machine ideal for the busy workshop that requires the automatic cycle for production sawing and the manual swing head which is generally used in semi-automatic mode for one way mitre cuts. The inclined sawblade makes this machine ideal for square sectional material as this approach offers the line of least resistance through this type of material. The H601 is also a very capable machine when encountering solid materials which make it a very popular choice.

Cutting capacity at 90° Round: 510mm
Square: 450mm
Rectangular: 610x440mm
Cutting capacity at 45° Round: 440mm
Square: 440mm
Rectangular: 440x450mm
Cutting capacity at 60° Round: 260mm
Square: 260mm
Rectangular: 250x450mm
Cutting capacity at 90° with bundle Max 600x250mm
Min 150x50mm
Cutting capacity at 90° solid (C45) 280mm (350mm with 41mm blade and 4KW motored.)
Blade size 5320x34x1.1mm
Maximum opening of the vice 620mm
Blade inclination 6°
Blade motor 3Kw (Option 4Kw)
Blade speed 15÷110
Minimum scrap-end 100mm
Feeder length 550mm (option F1500)
Minimum cutting length 30mm
Machine size (working table height) 2650x2900x2170mm (820mm)
Weight 2300kg
Powered laser line option image
Laser Line-61

Imet factory fit wired laser line.

Band saw battery Laser Line Option Image
Battery Laser Line

Premium quality German battery powered laser line. Addison fit item.

imet band saw bundle vice feature image
Bundle Cutting Device-52

Hydraulic bundle cutting device. (Max 600x250mm, min. 150x60mm).

Digital Angle Display

It’s available as a optional the LCD display to view the set cutting.

Minimal lubrication system for band saws - mist spray
Addimist

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Imet industry 4.0 feature image
Industry 4.0

IMET automatic machines can be connected to the company network and be used remotely thanks SAWFACTORY and modem. SAWFACTORY is a dedicated software which allows to manage the cutting process from the office desk by setting cutting programs and monitoring the workflow thanks to the dedicated web app. The software also allows to also receive assistance by our technicians remotely. Discover SAWFACTORY: https://bit.ly/2RuxHuX

band saw touch screen control unit image

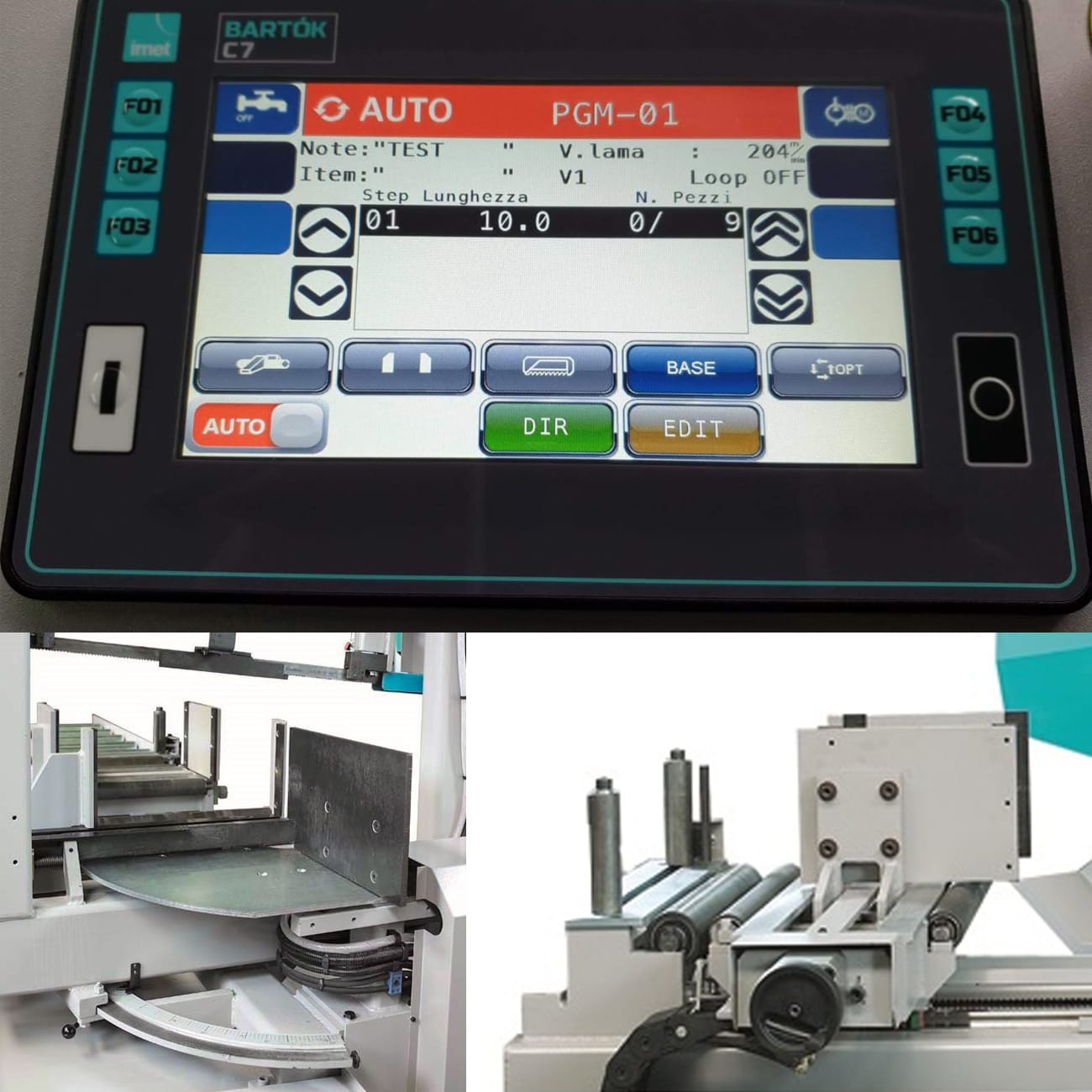

Cutting Control

7-inch touch screen display (with simple and intuitive graphics for different quantities and lengths on the same bar. the operator can to store up to 99 cutting programs by automatically calculating the thickness of the blade, the total number of pieces to be cut, setting the cutting lengths and managing the automatic cutting cycle..

H601 semi-automatic band saw cutting table
Cutting Table

The H601-NC is intentionally produce with a large cutting table to fully support wide section material.

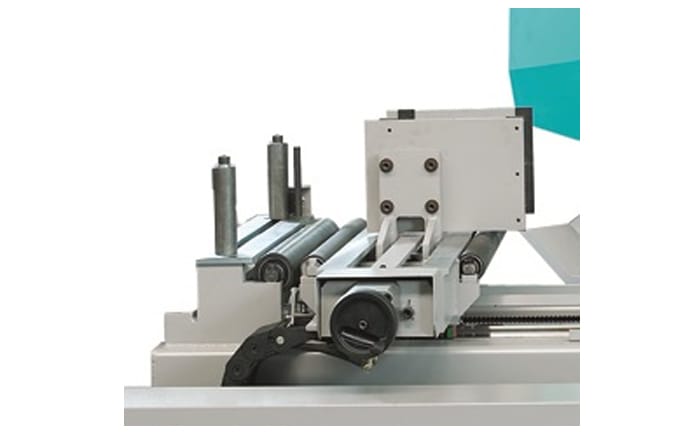

Material Feeder

Feeder length is 500mm (available also 1500mm) with automatic stroke repetition, transmission on precision 32mm diameter  ball screws with powerful servo motor. 30 mm minimum cutting length and 100mm minimum scrap-end. The tolerance for every single feeder stroke is +/- 0.2mm on rectilinear bars. The feed vices open both sides to accommodate out of tolerance material and reduce marking.

H601 semi-automatic band saw bow frame
Saw Frame

H 601-NC has a heavy rigid steel saw frame for maximum stability and vibration absorption. Mounted on a large steel column with precision linear guides. To increase the cutting performance, the bandsaw has a very high blade tension (2000kg/cm2).

6° blade inclination

The 6° blade inclination has considerable benefits when cutting square and flat material. With sectional material the line of least resistance is followed through the entire cut. With solid the initial contact is not across the entire width. All of these benefits add up to extended blade life faster cutting times and less stress on the machine components.

Material detection device

Mechanical material height detection device, fast approach to the material then the device switches to the selected feed speed for cutting and then returns automatically to 5mm above the workpiece for fast repetition cutting.

Horizontal supporting roll

The machine has a supplementary support roll placed on the loading side for a better support to the material even on bigger sizes.

Vice

A short stroke hydraulic vice is fitted. This method is safer than full stroke designs, and eliminates the chance of damaging the exposed piston shaft. The gap adjustment is by handwheel on lead screw.

Imet blade speed inverter image
Variable blade speed

The machine is equipped with ESC, electronic inverter for variable speed so that it’s suitable to cut different materials.

Cutting Control

Mobile control panel to set all of the cutting parameters including LED machine diagnostic indicators.

Connection element for roller table (Optional)

Connection element between roller table and machine for unloading side.

Loading/unloading roller table(Optional)

Loading and unloading side roller table. Single element has a 1.5m length with a capacity of 1500kg and 1 leg.

vertical rollers for bandsaws
Pair of vertical roller (Optional)

Pair of vertical containment rollers made in steel. Max 2 pairs every 1.5m

Single vertical roller image for bandsaw
Single vertical roller (Optional)

Single vertical roller to prevent falls with 300mm height. Max 2 every 1.5m

H601-NC-data-sheet.pdf
