Imet H1200 Band saw

Twin Pillar semi-auto band saw 680mm capacity (round bar)
Inclined blade for tube & square sections
Automatic setting of the guide arm
Variable blade speed with inverter
54mm wide blade for high cutting rates
Hydraulic split main vice
Material height sensor & rapid approach
Removable swarf collection tank
2 Year parts warranty (1 year on site labour)

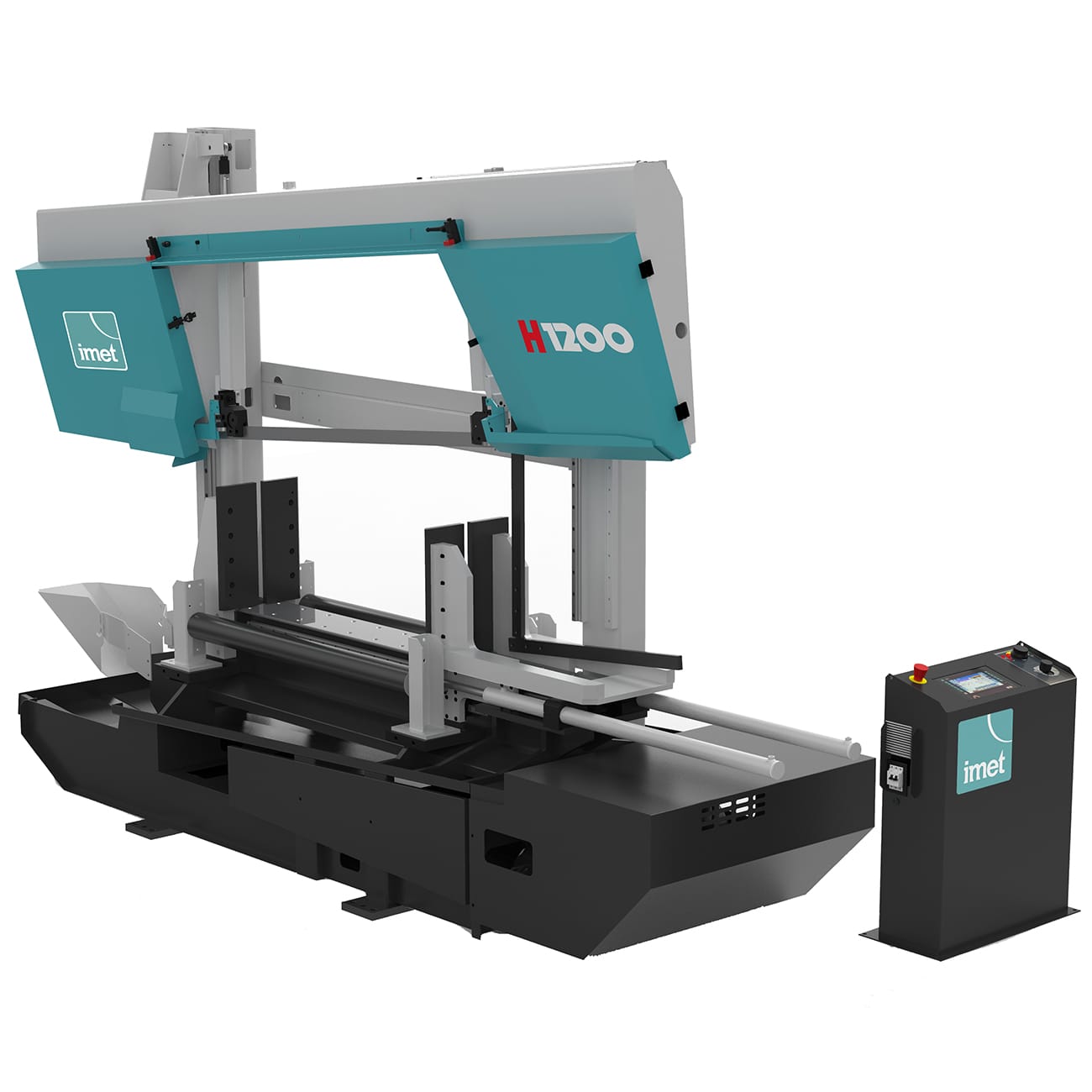

Imet H1200 Semi-Automatic Bandsaw

Semi-automatic, hydraulically driven twin column bandsaw for straight cut production work. This saw is built specifically for cutting profiles, pipes, beams and  is highly recommended for square section and flat plate as the inclined sawblade feature offers the line of least resistance on these materials. The bandsaw delivers faster cutting times, increased blade life and scope of use for each tooth pitch, with less stress on the machine components.

Cutting capacity at 90°Round: 680mm
Square: 640mm
Rectangular: 1250x600mm
Cutting capacity at 90° full material500mm
Bundle cutting capacity1000x350mm MAX
50x50mm MIN
Blade motor7.5KW
Blade speedDa 15 a 90 m/min
Blade size8140x54x1.6mm
Blade tension3000kg/cm2
Band inclination
Weight3400kg
Size1450x4000x2750mm
Working table height855mm
Hydraulic unit motor0.75KW
Hydraulic unit tank capacity20l
Blade Deviation Control

Monitoring of the blade deviation with adjustable accuracy settings. If the system detects the desired parameter is exceeded the saw is automatically shut down.

Powered Laser Line

Imet factory fit wired laser line (we have a selection of alternative Addison retro-fit products as well)

Battery Laser Line

Premium quality German battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line.

Bundle Cutting Device

Hydraulic device for bundle cutting (1000x500mm 50x50mm)

Addimist

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Saw Frame

H 1200 has a heavy rigid steel saw frame for maximum stability and vibration absorption. Mounted on a large steel column with precision linear guides. To increase the cutting performance, the bandsaw has a very high blade tension (2000kg/cm2).

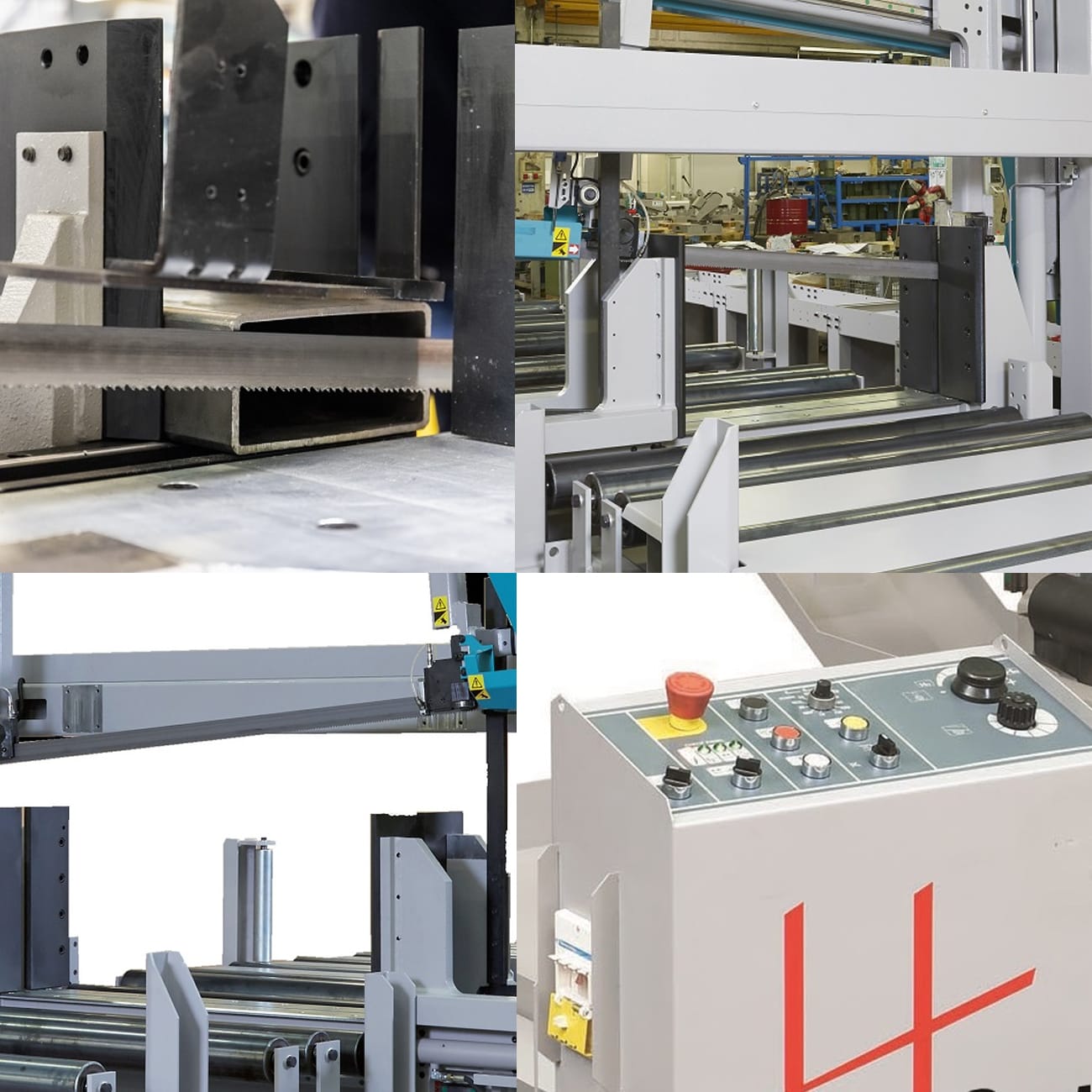

Blade Inclination

The 5° blade inclination has considerable benefits when cutting square and flat material. With sectional material the line of least resistance is followed through the entire cut. With solid the initial contact is not across the entire width. All of these benefits add up to extended blade life faster cutting times and less stress on the machine components.

Blade guides

Large roller bearing take the strain of twisting the sawblade which then passes through solid carbide blade guides for maximum precision and consistency. The moving guide is automatically synchronised with the vice opening to guarantee it is always in the optimum position.

Smart-start and fast approach

Once the operator has entered the material height using the touch screen, an encoded system initiates the fast approach to the material and then triggers the selected feed speed during the cutting cycle.

Blade Cleaning Brush

The machine mounts a motorized cleaning brush with nylon teeth to extend blade life and improve the cut finish.

Vice

Hydraulic full stroke vice clamping both sides of the sawblade to eliminate any break away nib.

Cutting Control

H series bandsaws are equipped with mobile panel control with touch screen HMI that gives full control on all the cutting parameters: it’s possible to manage lowering speed and power, blade speed and penetration in the material.

Roller table prepared for motorization

Roller table prepared for motorization with chain transmission and pinion gears. The element price is to be intended for a single metre. (requires optional motorisation system)

Motorization system

Motorization system for motorized roller table. Recommended every 6m in length. Max speed 10m/min

Motorized measurement length stop

CNC motorized measurement length stop with fast approaching and automatic slowdown of the piece. To be ordered together with RTR motorized roller table. -RR6S measurement length 6m -RR9S measurement length 9m -RR12S measurement length 12m

Pair of vertical rollers

Pair of containment vertical rollers made in steel. Max 2 pair every 1.5m element.
