Imet GBS 242 GH Bandsaw

Two Way Mitre | Manual Bandsaw + Autocut | Max Round Capacity 250mm
Rotating cutting table
Quick action manual vice
Gravity feed automatic cutting with 3 way control
Electric flood coolant system
Carbide blade guides & blade cleaning brush
Variable down feed control
Rapid approach to material & shut off at end of cut
2 year parts warranty + 12 months on site labour

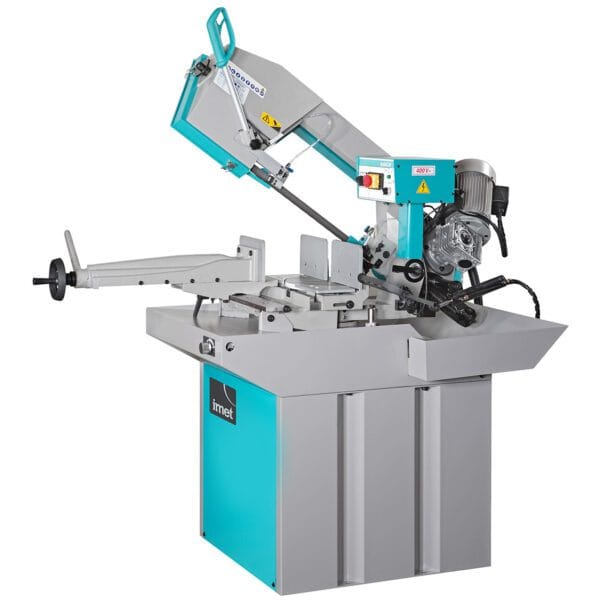

Imet GBS 242 GH Autocut Bandsaw

Versatile auto-cut bandsaw which can be used in either manual or automatic gravity feed modes. Ideal for small and medium batch production. This bandsaw model is equipped with easy bi-directional swing head for mitre cutting up to 45° right and 60° left with a rotating cutting table, meaning the saw blade does not damage the saw table. Cutting capacity for different materials can be found in the information table below.

Safe push-button start on the handle, warning light for the correct functioning, minimum tension coil for thermic & magnetic protection. Including floor stand with an opening in the back containing removable coolant tank and electro-pump. See the options tab for information on upgrading to a minimal spray mist lubrication system or adding precision laser line.

3 way Autocut function enables the operator to choose from the following cutting modes:

A: Manual Cut
B: Rapid approach to the material
C: Automatic cut with autonomous lowering and stopping via microswitch at the end of the cut.



Capacity Chart and Machine Information
Cutting capacity at 0 °Round: 250mm
Square: 210mm
Rectangle: 290x210mm
Cutting capacity at 45 ° leftRound: 220mm
Square: 200mm
Rectangle: 210x200mm
Cutting capacity at 60 ° leftRound: 140mm
Square: 130mm
Rectangle: 140x130mm
Cutting capacity at 45 ° rightRound: 170mm
Square: 170mm
Rectangle: 170x170mm
Cutting capacity at 0 ° (solid – C45)150mm
Band saw blade size2965x27x0,9 mm
Blade motor1.1/1.3 KW
Blade speed35/70 m/min
Height of the work surface940mm
Weight290kg
Dimensions1500x1250x1700mm
Addimist Band saw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Battery Laser Line

Quality German laser line. Addison fit item.

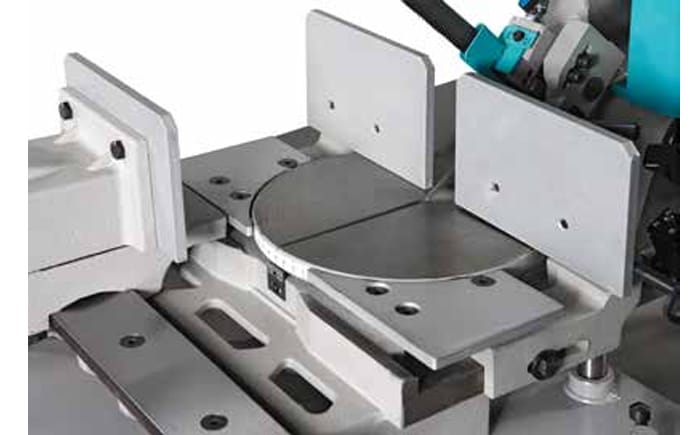

Cutting Table

Large rotating cutting table with precision scale for accurate angle setting. The rotating design means that whatever angle is being cut the table is not eroded away. Rotation is easy as it is mounted on bearings.

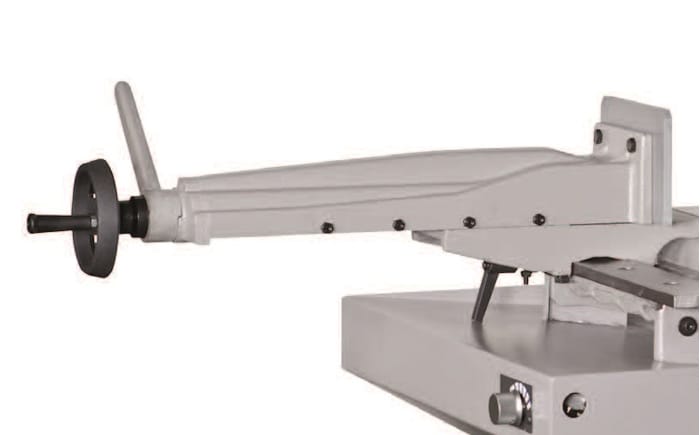

Vice

Sturdy manual vice on adjustable slides with quick action lever for repetition cutting. The vice can be positioned either side of the sawblade depending on the direction of mitre.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Cutting Control

3 mode selection – Manual movement with blade function disabled for fast approach to material, ideal when cutting to marked material line  – Operator setting of the start position with auto-cut function and blade stop at end of cut for unattended cutting. And pure manual cutting mode.

Positive mitre locations

0°-45°-60° R/H – 0°-45° L/H

RABGBC Bracket

Connecting element for roller table for the loading side.

RABGBS Bracket

Connecting element for roller table for the unloading side.

RTSPRW30 Roller Table

Loading / unloading roller table. 1st element length 2m, capacity 700kg.

RTSSEW30 2000mm extension table available

RTMPRW30 Manual Measuring Table

Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt , capacity 700kg

RTMSEW30 2000mm extension table available

R1-W30 Vertical Rollers

Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )

Addison Roller Table

3000mm available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.
