Imet GBS 218 metal bandsaw

Imet GBS 218 GH Manual Bandsaw

Swing head easy mitre one way
Positive mitre locations at 0°- 45°- 60°
Quick action manual vice
Gravity feed automatic cutting - 3 way control
Electric flood coolant system
Carbide blade guides & blade cleaning brush
Variable down feed control
2 year parts warranty & 1 year labour cover
Add to quote
Category: Tags: , , , ,

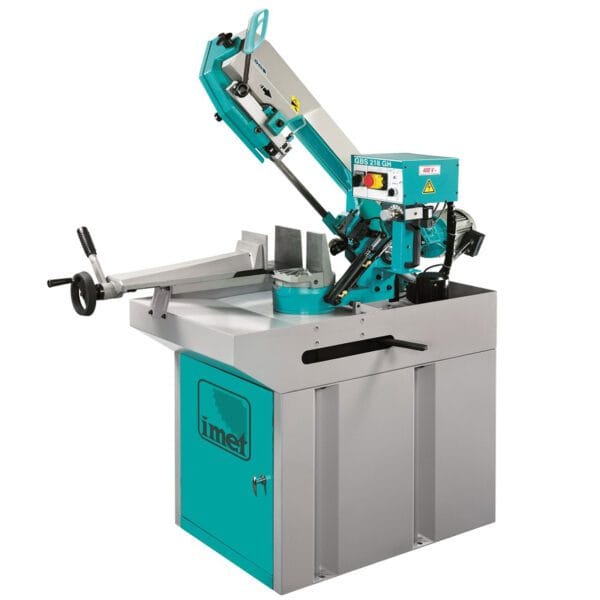

Imet GBS 218 GH Manual Bandsaw

Gravity cutting action metal cutting bandsaw suitable for maintenance workshops and medium fabrication applications requiring cutting of sectional material, bars, tubes, and solids. One way easy swing head for mitre cutting with positive stops of 0°, 45°, 60° and precision scaled for the setting of different angles.

This particular bandsaw comes with blade guides featuring hard metal pads for extended wear, safe start push button on the handle of the saw and an error warning light for operator safety. The saw frame is made from cast iron, and inclined to 42 deg to reduce pressure on the bandsaw blade while cutting.

3 way Autocut function enables the operator to choose from the following cutting modes:

A: Manual Cut
B: Rapid approach to the material
C: Automatic cut with autonomous lowering and stopping via microswitch at the end of the cut.



Capacity Chart and Machine Information
Cutting capacity at 0 ° Round: 220mm
Square: 210mm
Rectangle: 230x185mm
Cutting capacity at 45 ° left Round: 150mm
Square: 150mm
Rectangle: 150x210mm
Cutting capacity at 60 ° left Round: 90mm
Square: 90mm
Rectangle: 90x100mm
Band saw blade size 2455x27x0,9mm
Blade motor 1.2 KW
Blade speed 35/70 m/min
Height of the work surface 900mm
Weight 255kg
Dimensions 680x1400x1800mm

Minimal lubrication system for band saws - mist spray
Addimist Bandsaw

Optional pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Band saw battery Laser Line Option Image
Battery Laser Line

Optional quality German laser line – Addison fit item.

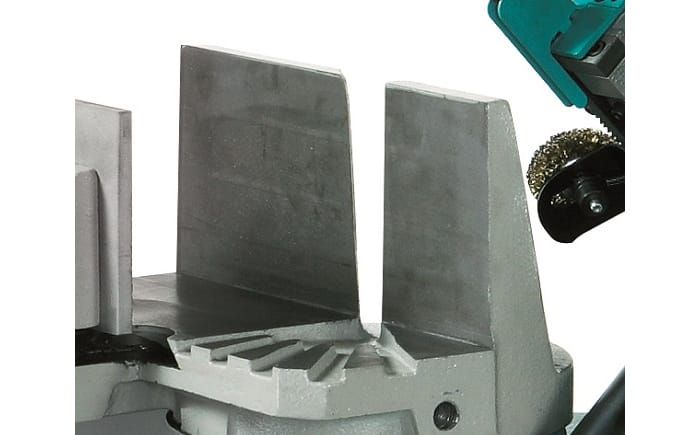

imet 218 band saw cutting table
Cutting Table

Solid cast cutting table with wide working area and flutes at common angles.

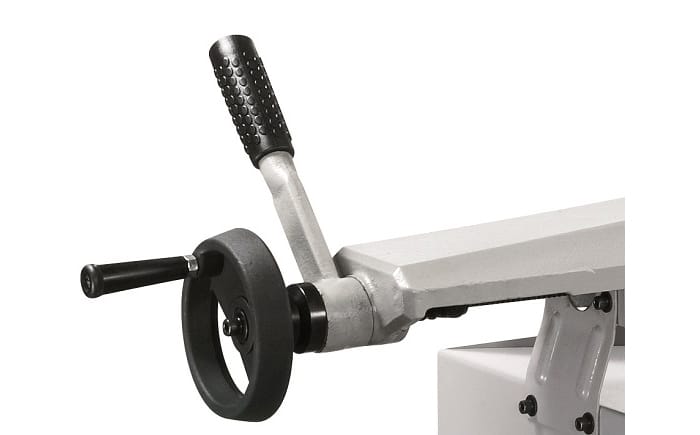

imet 218 band saw vice wheel
Vice

Sturdy construction manual vice with quick action lever for repetition cutting.

gbs 218 band saw frame
Saw Frame & Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

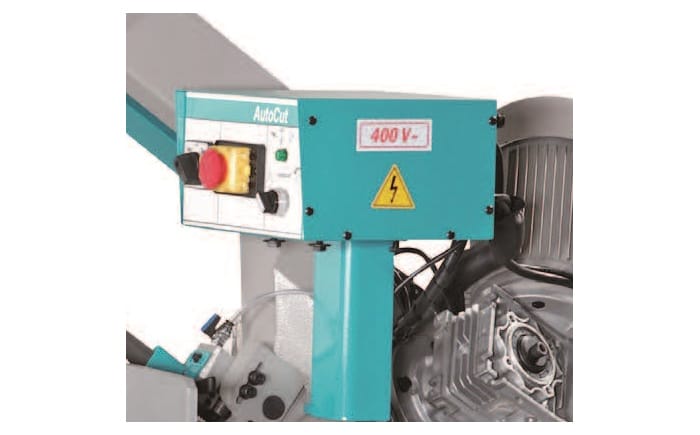

Cutting control

3 mode selection – Manual movement with blade function disabled for fast approach to material, ideal when cutting to marked material line  – Operator setting of the start position with auto-cut function and blade stop at end of cut for unattended cutting. And pure manual cutting mode.

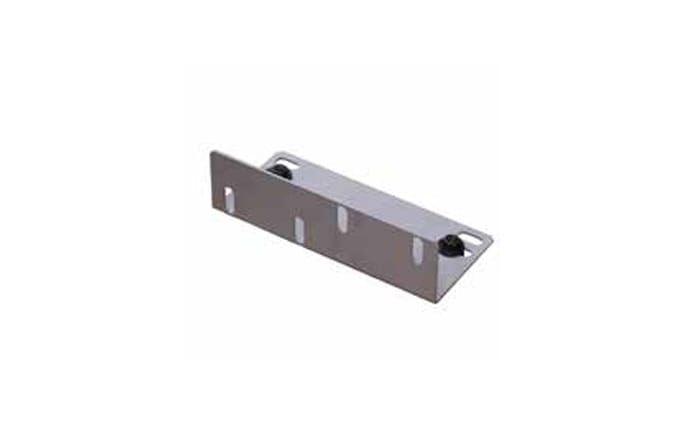

RABGBC Bracket

Connecting element for roller table for the loading side.

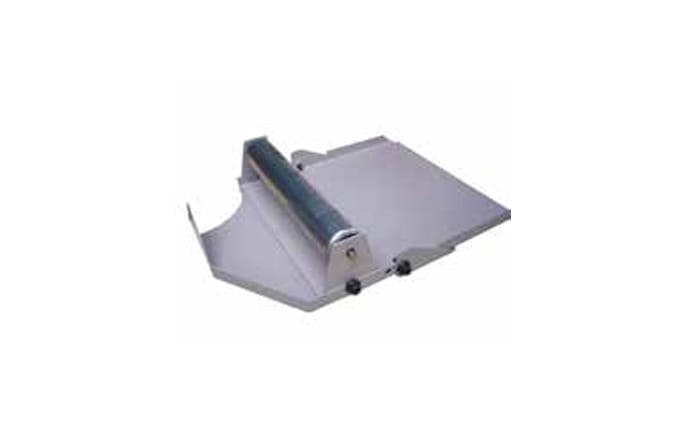

RABGBS Bracket

Connecting element for roller table for the unloading side.

RTSPRW30 Roller Table

Loading / unloading roller table. 1st element length 2m, capacity 700kg.
RTSSEW30 2000mm extension table available.

RTMPRW30 Manual Measuring Table

Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt , capacity 700kg.
RTMSEW30 2000mm extension table available

R1-W30 Vertical Rollers

Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )

Additrack 3MS roller tracking table
Addison Roller Table

3000mm roller support table, available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.

Imet GBS 218 -GBS 240 Data Sheet
