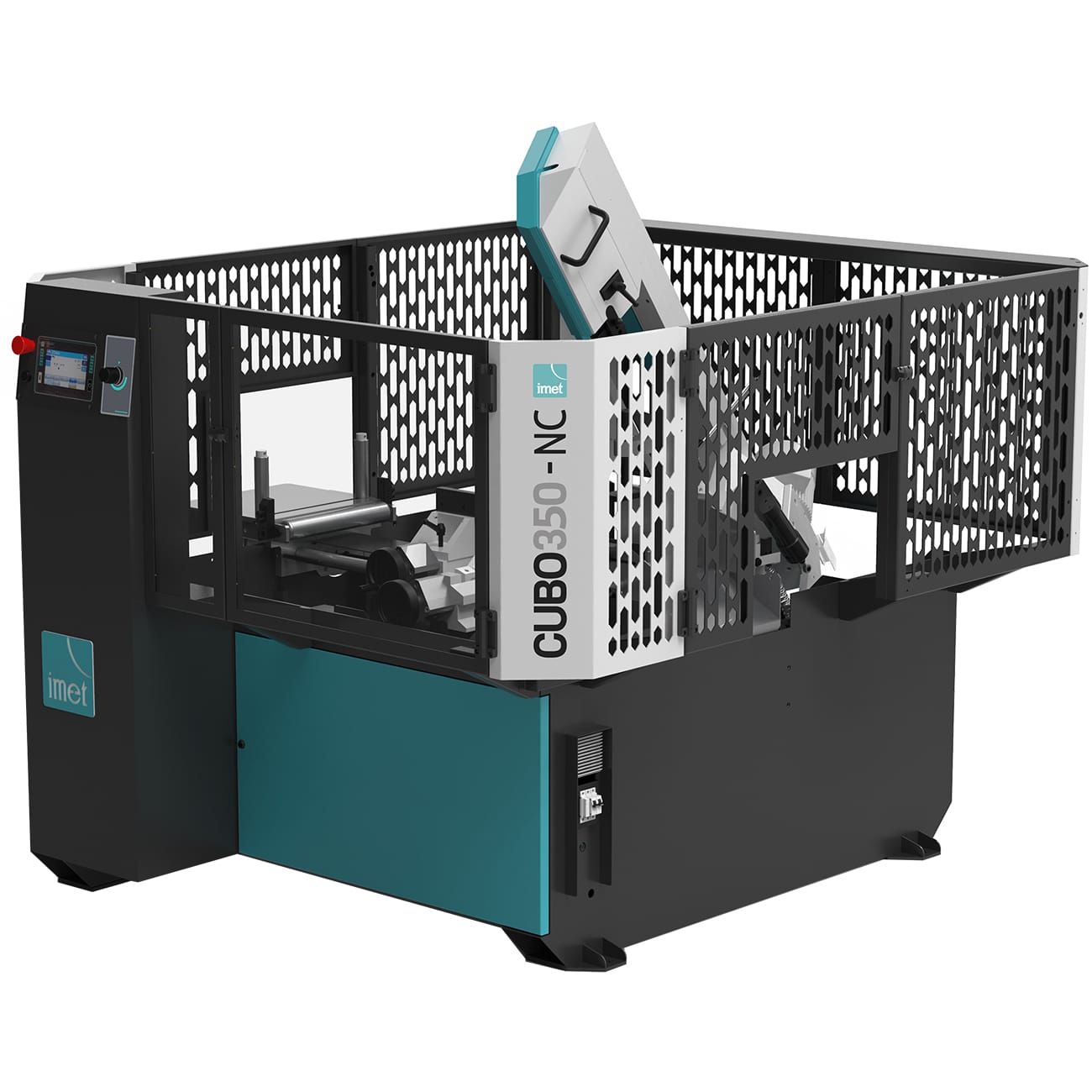

Imet CUBO 350-NC Box Bandsaw
Imet CUBO 350-NC Box Bandsaw - Image 2
Imet CUBO 350-NC Box Bandsaw - Image 3
Imet CUBO 350-NC Box Bandsaw - Image 4
Imet CUBO 350-NC Box Bandsaw - Image 5

Imet CUBO 350-NC Box Bandsaw

Individual job material optimisation
Rapid programming at machine
Full high level on on screen diagnostics
Historical library of jobs (optional)
Precision electric ball screw feeder
Multiple indexing for longer length cuts
Manual one way mitre to 60°
Material height sensor with rapid approach
Floating feeder vice to cope with bent material
Removable swarf collection drawer
2 Year parts warranty (1 year on site labour)
Add to quote
Category: Tag:

Imet CUBO350-NC-Box bandsaw

Automatic bandsaw with NC control of the cutting parameters and one way manual mitre 305mm capacity. Ideal for production cutting situations where large quantities of differing lengths are desired from the same material stock. The Cubo range of  automatics are recognised for their superior design and build quality which is proven in production. Delivering consistent performance and reliability which is backed up by an industry leading warranty package.

Cutting capacity at 0 °Round: 305mm
Square: 250mm
Rectangle: 350x200mm
Cutting capacity at 45 ° leftRound: 255mm
Square: 230mm
Rectangle: 230x200mm
Cutting capacity at 60 ° rightRound: 175mm
Square: 155mm
Rectangle: 170x100mm
Bundle cutting capacityMax: 300x160mm; Min. 90x10mm
Cutting capacity at 0 ° full (C45))200mm
Blade size3370x27x0.9mm
Blade motor1.8KW
Blade speed15-100 m/min
Stroke of the feeder carriage(repeatable)
Motor of the feeder carriage0.75KW
Minimal scrap end80mm
Hydraulic power unit tank capacity20l
Coolant tank capacity100l
Minimum length that can be cut15mm
Maximum cutting/feed length9999mm
Dimensions2200x2385x1610mm
Weight950kg
Height of the work surface880mm
Bundle Cutting Vice

The CUBO automatic band saws in the BOX version can be used with the bundle cutting device. The bundle cut can only be used for 0° cutting. Single piece capacity with mounted device: 350x160mm max, 55x10mm min. Cutting capacity for bundle is: max 300x160mm, minimum 85x10mm. The device can be disassembled using the 2 screws on the fixed vice and the 2 on the carriage vice and disconnecting the hydraulic tubes using the quick couplings systems.

.

cubo bandsaw swarf collector
Chip Conveyor

It’s available for all the CUBO SERIES automatic bandsaw an optional motorized chip conveyor placed laterally (on the loading side) of the machine. The chip conveyor allows to optimize the machine efficiency by removing swarf while cutting.

Powered head rotation

CUBO 350 NC (Flat and Box) are compatible with the automatic saw frame rotation device. The system has mechanical stops with 2 positions and allows to optimize user workflow with mitre cutting on a same bare in automatic cycle. Link: https://youtu.be/wZAjSwt6x3Y

Hydraulic Vice Pressure Reducers

Two pressure reducers in kit for hydraulic vices are available for CUBO 350 NC BOX.

Band saw battery Laser Line Option Image
Battery Laser Line

Premium quality battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line. This is a useful device when this machine is being used in semi automatic mode for general fabrication activities.

Imet industry 4.0 feature image
Industry 4.0

All CUBO Series automatic saws can be connected to the company network via modem: the dedicated software SAWFACTORY is also available for remote service, assistance, programming and remote management of the cutting process. The software allows to transfer data and programs from the PC (where the program is created) to the machine via USB. Discover SAWFACTORY: https://bit.ly/2RuxHuX

Powered laser line option image
Laser Line

Imet factory fit wired laser line (we have a selection of alternative Addison retro-fit products as well). This is a useful device when this machine is being used in semi automatic mode for general fabrication activities.

Minimal lubrication system for band saws - mist spray
Addimist

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

band saw touch screen control unit image

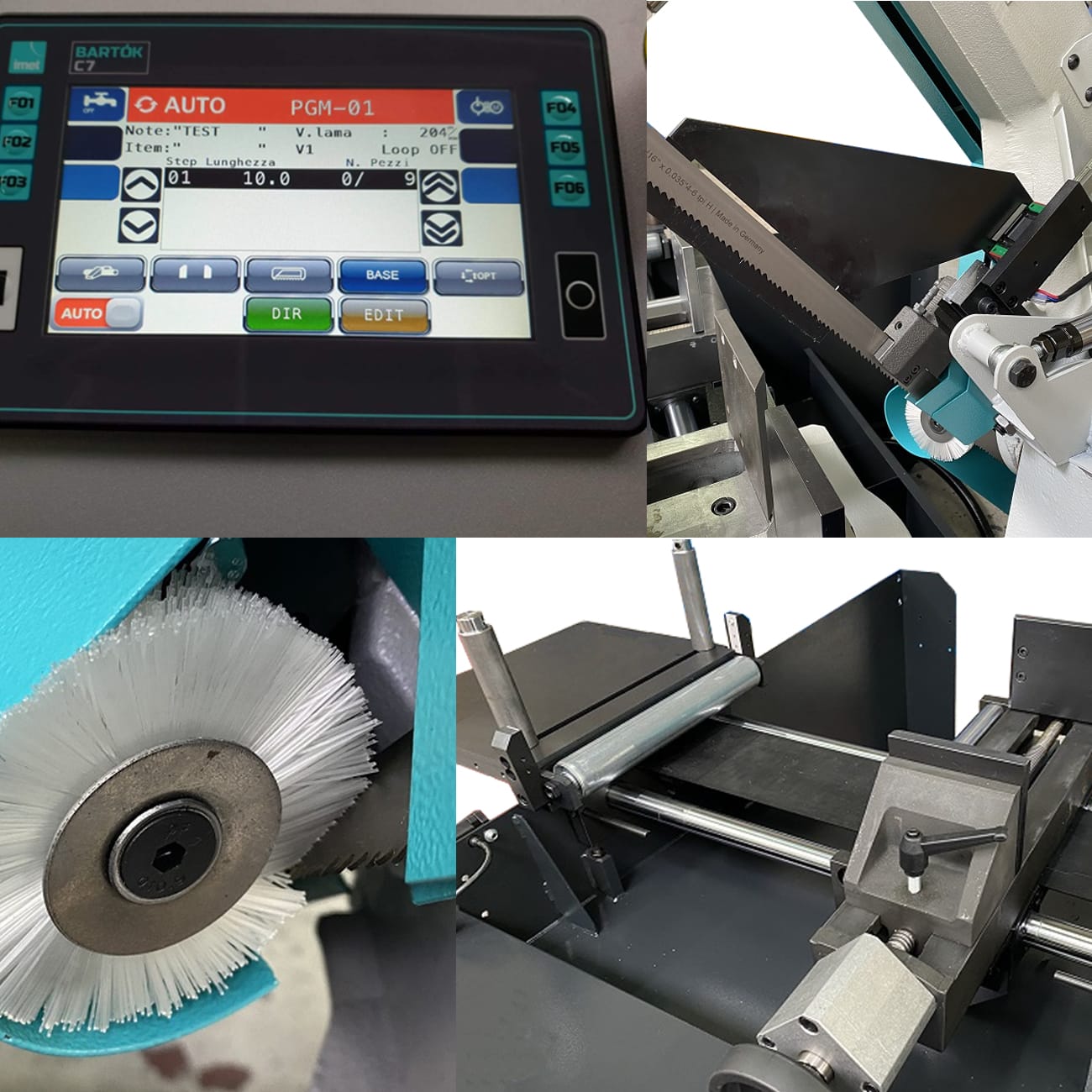

Cutting Control

7-inch touch screen display (with simple and intuitive graphics for different quantities and lengths on the same bar. the operator can to store up to 99 cutting programs by automatically calculating the thickness of the blade, the total number of pieces to be cut, setting the cutting lengths and managing the automatic cutting cycle..

Material detection device

Device to automatically detect the material height, this unit allows fast approach to the material before switching to the selected speed for the cutting cycle. The blade is only raised 1mm above the cut piece to reduce cycle times.

Safety and accessibility

CUBO 400 NC BOX has an integrated protection system on all sides of the machine to ensure maximum operator safety during cutting. The protection system does not prevent complete accessibility to all internal parts (movable and not) of the machine in case of maintenance.

Material Feeder

Mounted on precision chrome steel guides and ball screw transmission driven by a powerful servo motor Cubo incremental feeder delivers a high level of consistent accuracy and reliability. With a 515mm stroke  and floating vice that can cope with out of tolerance material.

Imet blade speed inverter image
Inverter Speed Control

All CUBO SERIES automatic sawing machines (in the BOX and FLAT versions) are equipped with an inverter speed control as standard. 18:100m/min

Imet blade cleaning brush image
Blade Cleaning Brush

Powered blade cleaning brush to enhance blade life and performance.

End of Cut Inclination

This is a massive benefit when cutting square section and flat plate and should not be under estimated. This design ensures the blade always has a line of least resistance through these materials, reducing cycle times – dramatically increasing blade life and reducing load on the machine components.

Connection for loading side

Connection element for roller table, loading side.

Free rolling loading and unloading table image
Loading/unloading roller table with free rolls

Following element for loading/unloading roller table with free rolls with 1 leg.

vertical rollers for bandsaws
Vertical rollers

Pair of containment vertical rollers, made in steel, max 2 pairs for each element 1,5 mt long.

Single vertical roller image for bandsaw
Single vertical roller

Single vertical roller, height of 250 mm. to prevent falls, max 2 each 1,5 mt.

Cubo350-NC-Box-data-sheet.pdf
