Imet CUBO 300 NC Box Automatic Bandsaw

Industry 4.0 ready
Multi-function colour touch screen HMI
Individual job material optimisation
Rapid programming at machine
Full high level on-screen diagnostics
Electric ball screw feeder - 515mm stroke
Multiple indexing for long length cuts
Manual one-way mitre to 60°
Material height sensor & rapid approach

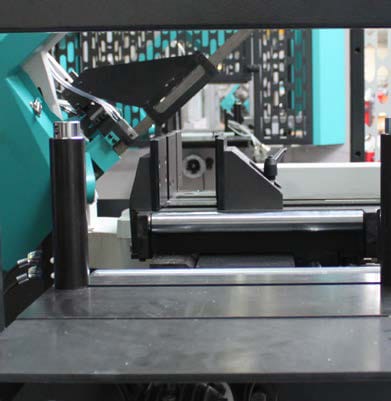

Floating feeder vice for bent material
Removable swarf collection drawer
2 year parts warranty (1 year labour)
Add to quote
Category: Tags: , , , ,

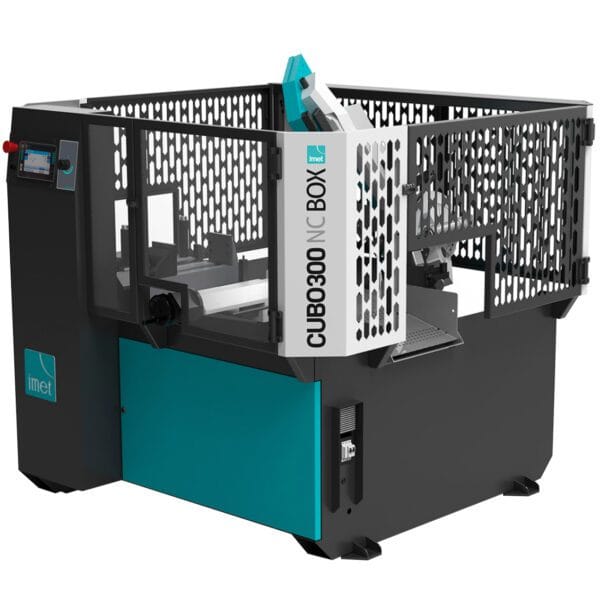

IMET CUBO 300 NC Box

Automatic bandsaw with NC control of the cutting parameters and one way manual mitre 255mm capacity. Ideal for production cutting situations where large quantities of differing lengths are desired from the same material stock. The Cubo range of  automatics are recognised for their superior design and build quality which is proven in production. Delivering consistent performance and reliability which is backed up by an industry leading warranty package.

Cutting capacity at 0° Round: 255mm
Square: 230mm
Rectangle: 300x180mm
Cutting capacity at 45° Round: 210mm
Square: 190mm
Rectangle: 200x160mm
Cutting capacity at 60° Round: 135mm
Square: 110mm
Rectangle: 130x100mm
Cutting capacity at 0° for solids 180 mm
Bundle cutting capacity Max. 250x130mm
Min.90x10mm
Blade motor 1.5kW
Blade speed 18-100 m/min
Blade dimensions 2765x27x0.9mm
Run of the feed carriage 515mm
Feeder carriage motor 0.75mm
Min. Length. cuttable in automatic cycle 15mm
Hydraulic power unit tank capacity 20l
Coolant tank capacity 100l
Work surface height 870mm
Weight 1000kg
Dimensions 2030x1830x1830mm
cubo bandsaw swarf collector
Chip Conveyor

It’s available for all the CUBO SERIES automatic bandsaw an optional motorized chip conveyor placed laterally (on the loading side) of the machine. The chip conveyor allows to optimize the machine efficiency by removing swarf while cutting.

Imet industry 4.0 feature image
Industry 4.0

All CUBO Series automatic sawing machines can be connected to the company network via modem: the dedicated software SAWFACTORY is also available for teleservice, assistance, programming and remote management of the cutting process. The software allows you to transfer data and programs from the PC (where the program is created) to the machine via USB. Discover SAWFACTORY: https://bit.ly/2RuxHuX

Hydraulic Vice Pressure Reducers-50

Two pressure reducers in kit for hydraulic vices are available for CUBO 350 NC BOX.

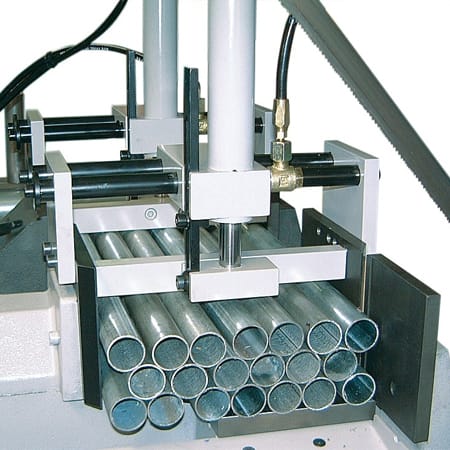

Bundle Cutting Vice

The CUBO automatic band saws in the BOX version can be used with the bundle cutting device. The bundle cut can only be used for 0° cutting. Single piece capacity with mounted device: 250x130mm max, 10mm min. Cutting capacity for bundle is: max 250x130mm, minimum 90x10mm. The device can be disassembled using the 2 screws on the fixed vice and the 2 on the carriage vice and disconnecting the hydraulic tubes using the quick couplings systems.

Band saw battery Laser Line Option Image
Battery Laser Line

Premium quality battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line. This is a useful device when this machine is being used in semi automatic mode for general fabrication activities.

Powered laser line option image
Powered Laser Line

Imet factory fit wired laser line (we have a selection of alternative Addison retro-fit products as well). This is a useful device when this machine is being used in semi automatic mode for general fabrication activities.

Minimal lubrication system for band saws - mist spray
Addimist

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

band saw touch screen control unit image

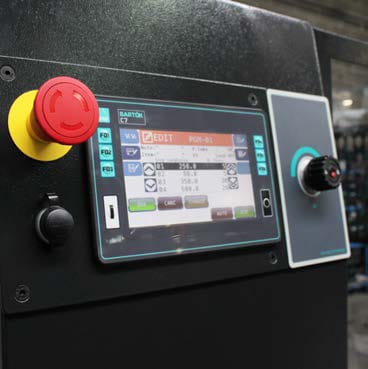

Cutting Control

7-inch touch screen display (with simple and intuitive graphics for different quantities and lengths on the same bar. the operator can to store up to 99 cutting programs by automatically calculating the thickness of the blade, the total number of pieces to be cut, setting the cutting lengths and managing the automatic cutting cycle.

Material detection device

Device to automatically detect the material height, this unit allows fast approach to the material before switching to the selected speed for the cutting cycle. The blade is only raised 1mm above the cut piece to reduce cycle times.

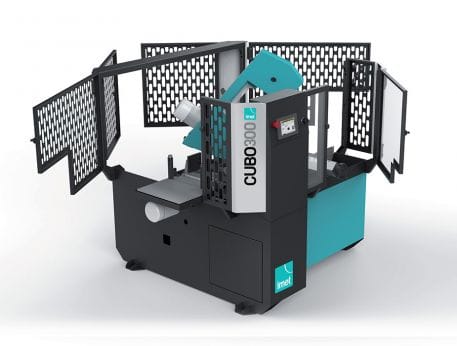

Safety and accessibility

CUBO 300 NC BOX has an integrated protection system on all sides of the machine to ensure maximum operator safety during cutting. The protection system does not prevent complete accessibility to all internal parts (movable and not) of the machine in case of maintenance needs.

Material Feeder

Mounted on precision chrome steel guides and ball screw transmission driven by a powerful servo motor Cubo incremental feeder delivers a high level of consistent accuracy and reliability. With a 515mm stroke  and floating vice that can cope with out of tolerance material.

Imet blade speed inverter image
Inverter Speed Control

All CUBO SERIES automatic sawing machines (in the BOX and FLAT versions) are equipped with an inverter speed control as standard. 18:100m/min

Imet blade cleaning brush image

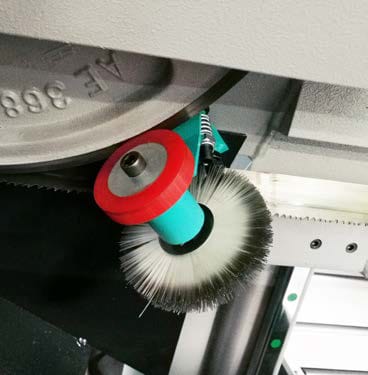

Blade Cleaning Brush

Powered blade cleaning brush to enhance blade life and performance.

Connection for loading side

Connection element for roller table, loading side.

Free rolling loading and unloading table image
Loading/unloading roller table with free rolls

Following element for loading/unloading roller table with free rolls with 1 leg.

Horizontal rollers

Horizontal rollers for cutting more bars on the same row. Maximum capacity 250x100mm.

vertical rollers for bandsaws
Vertical rollers

Pair of containment vertical rollers, made in steel, max 2 pairs for each element 1,5 mt long.

Single vertical roller image for bandsaw
Single vertical roller

Single vertical roller, height of 250 mm. to prevent falls, max 2 each 1,5 mt.

Cubo300-NC-Box-data-sheet.pdf
