Imet BS 300 Plus SHI band saw

Semi Automatic band saw with two way mitre. 255mm capacity
Rotating cutting table
Electro-hydraulic cutting action
Material height sensor & rapid approach
Automatic saw head return after cut
Positive mitre locations at 0·° - 45·° - 60·°
Hydraulic vice
Electric flood coolant system
Carbide blade guides & blade cleaning brush
Variable downfeed control
AMP meter
Machine status indicator
safety covers & motor temp

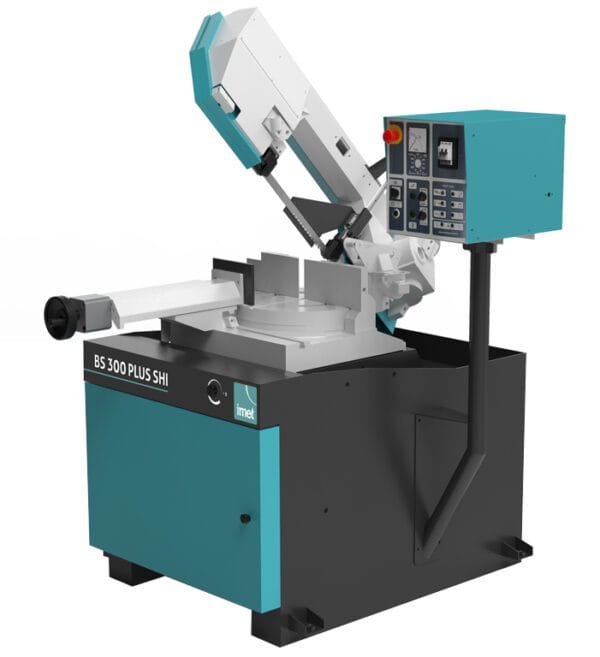

Imet BS 300 PLUS SHI

A highly recommended machine for the demanding workshop. This rugged machine features electro-hydraulic cutting action with an auto return after cut and a material height sensor with a rapid approach function. Also included is a rotating cutting table with positive stops for common angles, hydraulic vice and much more. This machine is historically well proven for delivering the highest levels of performance and reliability.

Cutting capacity at 90° Round 255 mm. Square 230 mm. Rectangular 300x180mm
Cutting capacity at 45° right Round 210 mm. Square 190 mm. Rectangular 200x180mm
Cutting capacity at 45° left Round 180 mm. Square 160 mm. Rectangular 180x100mm
Cutting capacity at 60° left Round 135 mm. Square 110 mm. Rectangular 130x100mm
Maximum capacity for full materials 200mm
Blade size. 2765x27x0,9
End-cutting bandsaw inclination
Blade motor 1,5/1,8 kw
Blade speed 35/70
15÷110 m/min
Hydraulic unit motor power kw 0,37
Hydraulic united tank Lt 12
Coolant tank Lt 20
Size 1230x1700x1750 mm
Working table height 940 mm
Weight 412kg
Bundle Cutting Vice-51

Hydraulic bundle clamping system for BS300-plus SHI – BS350SHI – BS400SHI

Addimist Bandsaw

Pure oil micro-mist bandsaw blade lubrication system that is recommended for cutting tubes and sectional material where the flood lubricant loss through the material is a problem. This precise delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Imet Inverter-42

Electronic variable speed control (18-100 m/mim)

Powered Laser

Factory fit from Imet

Battery Laser Line

Premium quality battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line.

Addison fit item.

Vice Pressure Reducer

Pressure reducer for hydraulic vice (only for SHI version)

Roller Table Adaptor

Adapter to synchronize the RTP/RTD table with saw frame motion

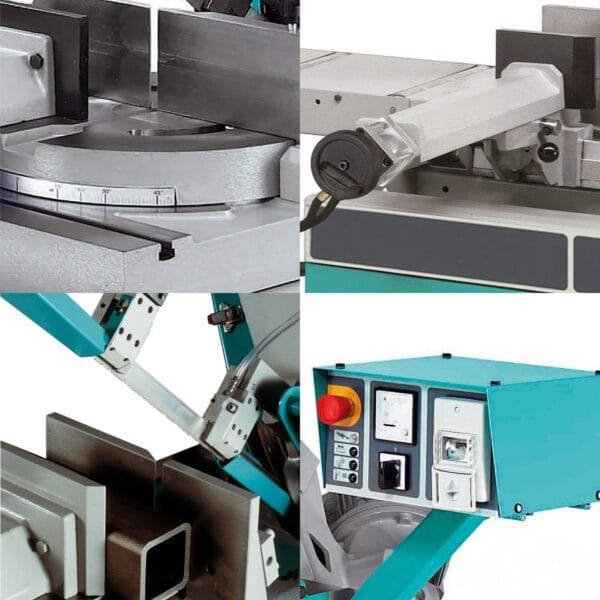

Cutting table

BS 300 PLUS is equipped with a wide diameter rotating cutting table. The benefit over a solid fixed table is when mitre cutting the sawblade does not cut away the table bed.

There is a system of easy stops at 0°, 45° and 60° left and 45° right with graduated scale to precisely set different angles.

Pneumatic Vice

Rapid set feature useful for time saving when switching from wide to small material. Easily position either side of the sawblade dependant on mitre direction.

Cast iron bow

The bow of BS 300/60 SHI is manufactured in heavy cast iron with large band wheels 320mm diameter to reduce blade material stress. The tension of the band is 1700kg / cm2 for maximum precision and performance with front adjustment and control microswitch. The blade guard is hinged to facilitate the blade replacement .

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Cutting control

An amp meter is fitted to illustrate the cutting load. This can be used to determine the blade condition and machine stress. LED lights indicate the machine status.

Blade Speed Control

If required, the electronic inverter for variable blade speed allows the operator via keyboard to adjust the machine to be able to cut a wide range of materials and different sections. This system  does not affect the power of the drive motor even at low speeds.

RAB26C Connector

Connection element for loading side roller table with 1 roller.

RAB26S Connector

Connection element for unloading side roller table with 1 roller

RTSPRW30 Roller Table

Loading / unloading roller table. 1st element length 2m, capacity 700kg.

RTSSEW30 2000mm extension table available

RTMPRW30 Manual Measuring Table

Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt , capacity 700kg

RTMSEW30 2000mm extension table available

RTD2LW30 Manual Digital Measuring Table

2000mm Manual positioning with handwheel and digital display of the cutting length. Pneumatic locking on position and 50mm retraction to allow easy unloading of the cut piece.

Optional lengths:-

RTD4LW30 4000mm
RTD6LW30 6000mm

RTP3W30 NC Measuring Table

3000mm NC servo drive measuring table. 5.7″ Touch screen HMI for cutting data input. Up to 20 different cutting lengths. Automatic 50mm retreat function to allow easy unloading of the cut piece.

Optional lengths:-

RTP6W30 6000mm

R1-W30 Vertical Rollers

Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )

Addison Roller Table

3000mm available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.
