Manual Metal Cutting Bandsaws - Imet BS 300-Plus GH Bandsaw


Imet BS 300-Plus GH Bandsaw

Two Way Mitre | Manual Bandsaw + Autocut | Max Round Capacity 255mm
Swing head two way easy mitre
Rotating cutting table
Positive mitre locations
Quick action manual vice
Sliding vice for left right mitre cuts
Gravity feed automatic cutting with 3 way control
Electric flood coolant system
Carbide blade guides
Blade cleaning brush
Precision variable down feed control
2 year parts warranty, 1 year labour
AMP meter
Machine status indicator

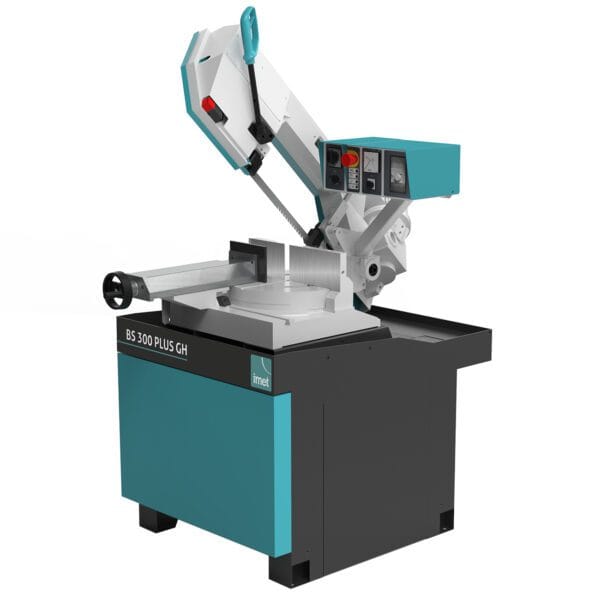

Imet BS 300-Plus GH Autocut Band Saw

A very dependable, well proven and versatile autocut band saw machine for Ferrous materials like Steel – the mainstay of many a busy workshop. Ideal for general workshop and medium batch production of sectional and solid materials. Mitre cuts to 45° left and 60° right with positive mitre locations at 0°- 45°- 60° left & 0° – 45° right.

This two way mitre swing head and rotating cutting table is ideal for general fabrication and manufacturing applications, especially where opposed mitre cuts are required.

A tough, well designed machine offering very flexible and precise capabilities together with an industry leading 24 months parts warranty.

Cutting capacity at 90°Round: 255mm

Square: 230mm

Rectangle: 300x180mm

Cutting capacity at 45° rightRound: 210mm

Square: 190mm

Rectangle: 200x180mm

Cutting capacity at 45° leftRound: 180mm

Square: 160mm

Rectangle: 180x100mm

Cutting capacity at 60° leftRound: 135mm

Square: 110mm

Rectangle: 130x100mm

Maximum capacity for full materialsRound: 150mm

Square: 150mm

Rectangle: 150x150mm

Band Saw Blade size2765 x 27 x 0,9 mm
End-cutting band saw inclination
Blade motor1,5/1,8 kw
Blade speed35/70
15÷110 m/min
Hydraulic unit motor powerkw 0,37
Hydraulic united tankLt 12
Coolant tankLt 20
Size1230 x 1700 x 1750 mm
Working table height940 mm

Imet saws information

BS300 Pneumatic Vice-43

Quick acting pneumatic vice for BS300/60 GH and BS300-plus-GH. Activated by the movement of the cutting head.

Imet Inverter-42

Electronic variable speed control (18-110 m/min)

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

BS Pneumatic Vice

Quick acting pneumatic vice for BS300/60 GH and BS300-plus-GH. Activated by the movement of the cutting head.

Roller Table Adaptor

Adapter to synchronize the RTP/RTD table with saw frame motion.

Powered Laser Line

Imet factory fit powered laser line.

Battery Laser Line

Quality German laser line. Addison fit item.

Cast iron bow

The bow of BS 300/60 GH is manufactured in heavy cast iron with large band wheels 320mm diameter to reduce blade material stress. The tension of the band is 1700kg / cm2 for maximum precision and performance with front adjustment and control microswitch. The blade guard is hinged to facilitate the blade replacement .

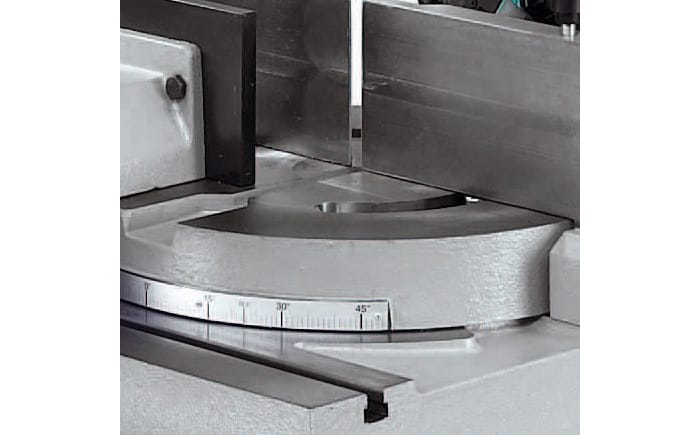

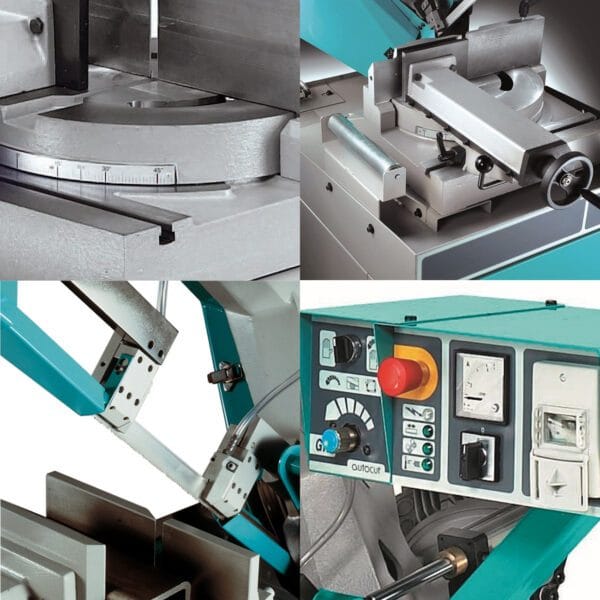

Cutting table

BS 300 PLUS is equipped with a wide diameter rotating cutting table. The benefit over a solid fixed table is when mitre cutting the sawblade does not cut away the table bed.

There is a system of easy stops at 0°, 45° and 60° left and 45° right with graduated scale to precisely set different angles.

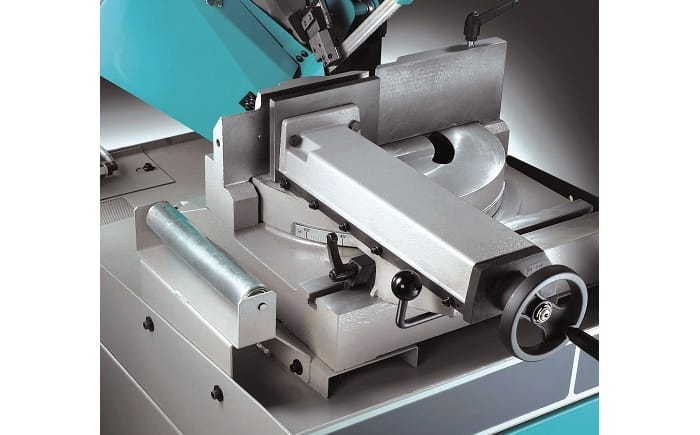

Vice adjustment

The vice can be easily positioned either side of the sawblade depending on the direction of cutting angle. There is also q handy quick release mechanism for rapid setting between small and large width material.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Cutting control

3 mode selection – Manual movement with blade function disabled for fast approach to material, ideal when cutting to marked material line  – Operator setting of the start position with auto-cut function and blade stop at end of cut for unattended cutting. And pure manual cutting mode.  An amp meter is fitted to illustrate the cutting load. This can be used to determine the blade condition and machine stress.

RAB26C Connector

Connection element for loading side roller table with 1 roller.

RAB26S Connector

Connection element for unloading side roller table with 1 roller

RTSPRW30 Roller Table

Loading / unloading roller table. 1st element length 2m, capacity 700kg.

RTSSEW30 2000mm extension table available

RTMPRW30 Manual Measuring Table

Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt , capacity 700kg

RTMSEW30 2000mm extension table available

RTD2LW30 Manual Digital Measuring Table

2000mm Manual positioning with handwheel and digital display of the cutting length. Pneumatic locking on position and 50mm retraction to allow easy unloading of the cut piece.

Optional lengths:-

RTD4LW30 4000mm
RTD6LW30 6000mm

RTP3W30 NC Measuring Table

3000mm NC servo drive measuring table. 5.7″ Touch screen HMI for cutting data input. Up to 20 different cutting lengths. Automatic 50mm retreat function to allow easy unloading of the cut piece.

Optional lengths:-

RTP6W30 6000mm

R1-W30 Vertical Rollers

Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )

Addison Roller Table

3000mm available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.
