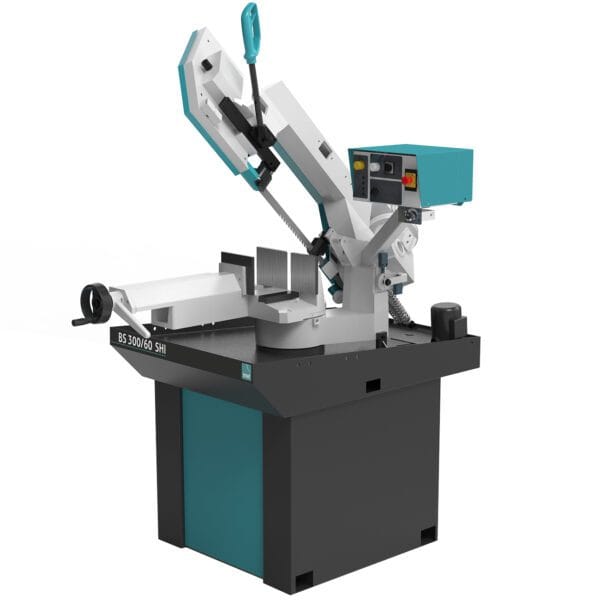

Imet BS 300/60 SHI Band saw
Hydraulic semi-automatic bandsaw with manual vice, one way mitre cutting up to 60 degrees right with positive stop locations. Ideal for cutting high resistance materials and general fabrication applications.
Imet BS 300/60 SHI Bandsaw
Powerful electro-hydraulic cutting action
Automatic saw head return after cut
Material height sensor
Static cutting table
Positive mitre locations at 0-45-60° r/h
Quick action manual vice
Electric flood coolant system
Carbide blade guides & blade cleaning brush
Precision variable down feed control
Powered Laser Line
Imet factory fit powered laser line.
.
Battery laser line
Quality German battery laser line. Addison fit item.
Mist Spray System
Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.
Choice of Imet factory fit, or Addimist system Addison fit.

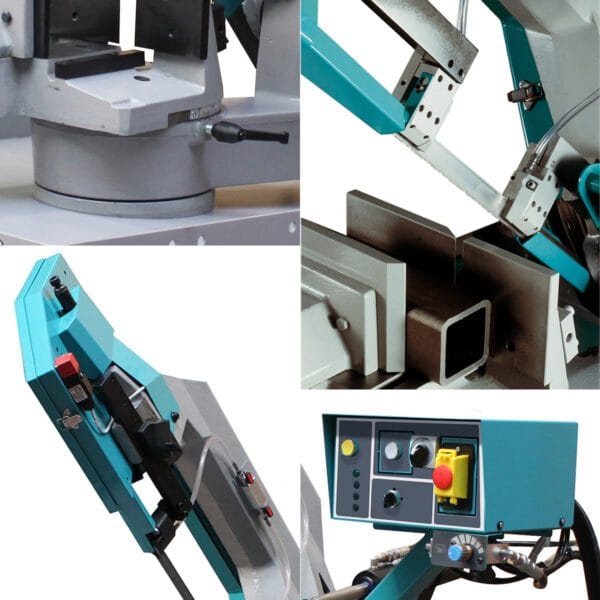

Cast iron bow
The bow of the BS 300 is manufactured in heavy cast iron with large band wheels 320mm diameter to reduce blade material stress. The tension of the band is 1700kg / cm2 for maximum precision and performance with front adjustment and control microswitch. The blade guard is hinged to facilitate the blade replacement .
Blade guide system
Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Very high tension at 1700kg/cm2 with easy front adjustment, 1.5KW motor with a speed of 35/70 m / min.
Control panel
Fully electronic, the control panel of the BS 300/60 SHI allows you to interrupt the process of cutting at any time, with operation control led indicators.
RAB26C Connector
Connection element for loading side roller table with 1 roller.
RAB26S Connector
Connection element for unloading side roller table with 1 roller
RTSPRW30 Roller Table
Loading / unloading roller table. 1st element length 2m, capacity 700kg.
RTSSEW30 2000mm extension table available
RTMPRW30 Manual Measuring Table
Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt , capacity 700kg
RTMSEW30 2000mm extension table available
RTD2LW30 Manual Digital Measuring Table
2000mm Manual positioning with handwheel and digital display of the cutting length. Pneumatic locking on position and 50mm retraction to allow easy unloading of the cut piece.
Optional lengths:-
RTD4LW30 4000mm
RTD6LW30 6000mm
RTP3W30 NC Measuring Table
3000mm NC servo drive measuring table. 5.7″ Touch screen HMI for cutting data input. Up to 20 different cutting lengths. Automatic 50mm retreat function to allow easy unloading of the cut piece.
Optional lengths:-
RTP6W30 6000mm
R1-W30 Vertical Rollers
Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )
Addison Roller Table
3000mm available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.
