Manual bandsaw BS 300-60 one way mitre from Imet

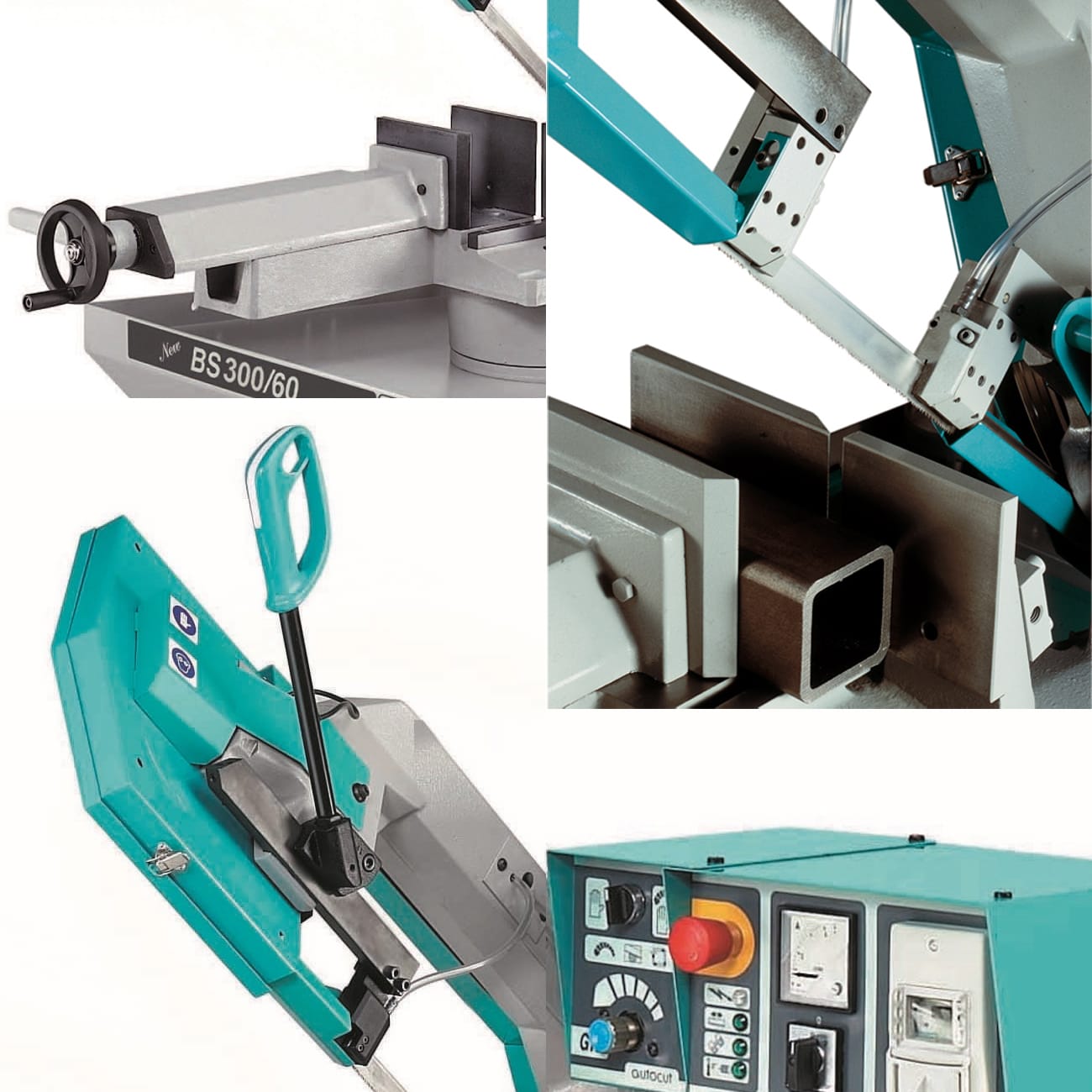

Imet BS 300/60 GH Manual Bandsaw - Image 2
Imet BS 300/60 GH Manual Bandsaw - Image 3

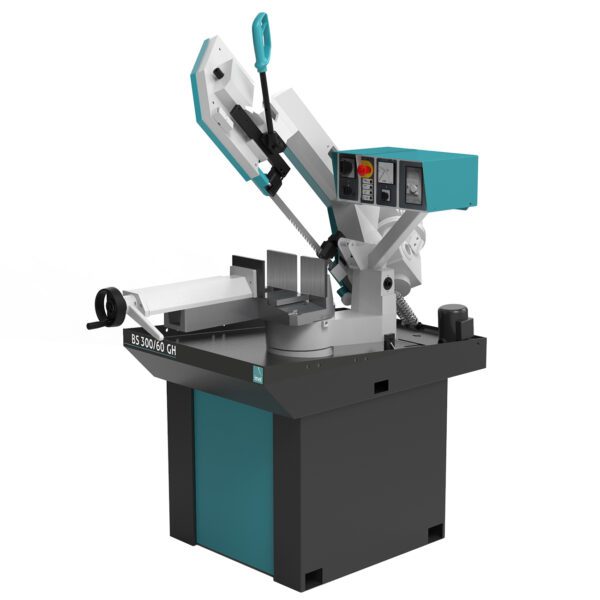

Imet BS 300/60 GH Manual Bandsaw

Positive mitre locations at 90-45-60 deg
Quick action manual vice
Manual/Gravity feed with 3 way control
Electric flood coolant system
Carbide blade guides & blade cleaning brush
Precise variable downfeed control
24 month parts warranty
12 month labour warranty
Replaceable cutting table support
AMP meter
Machine status indicator
Add to quote
Category:

Imet BS 300/60 GH Autocut Manual Band Saw

A very popular Manual/Gravity feed bandsaw with auto-cut function. This steel cutting machine has been proven in its build quality, performance & reliability for cuts from 0° up to 60° Left. Ideal for the busy steel cutting workshop or factory with medium production demands.

This tough, well designed machine offers very flexible and precise capabilities together with an industry leading 24 months parts warranty.

3 way Autocut function enables the operator to choose from the following cutting modes:

A: Manual Cut
B: Rapid approach to the material
C: Automatic cut with autonomous lowering and stopping via microswitch at the end of the cut.



Cutting capacity at 0°Round: 255mm
Square: 240mm
Rectangular 300x180mm
Cutting capacity at 45° leftRound: 210mm
Square : 190mm
Rectangular 200x160mm
Cutting capacity at 60° leftRound: 135mm
Square: 110mm
Rectangular: 130x100mm
Blade dimensions2765x27x0.9mm
Blade speed35-70 m/min
Blade speed with inverter18-100 m/min
Blade motor1.5/1.8 KW
Blade motor with ESC speed1.5 KW
Height of the work surface940mm
Dimensions900x1700x1860mm
Weight308kg



BS Pneumatic Vice

Optional quick acting pneumatic vice for BS300/60 GH and BS300-plus-GH. Activated by the movement of the cutting head.

Imet blade speed inverter image
Imet Inverter-42

Optional electronic variable speed control (18-110 m/min)

Imet RTD RTP adapter image
Synchronization adapter

optional synchronization adapter between RTD, RTP and bow movement.

Powered laser line option image
Powered Laser Line

Optional powered laser, Imet factory fit.

Band saw battery Laser Line Option Image
Battery Laser Line

Quality German battery laser line. Addison fit item.

Minimal lubrication system for band saws - mist spray
Mist Spray System

Optional pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Choice of Imet factory fit, or Addimist system Addison fit.

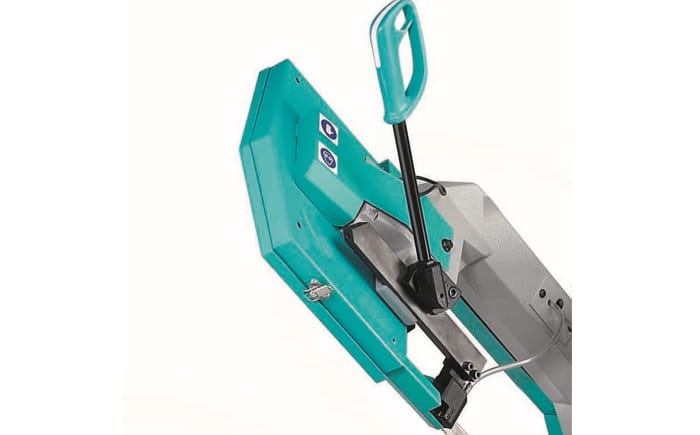

Cast iron bow

The bow of the BS 300 is manufactured in heavy cast iron with large band wheels 320mm diameter to reduce blade material stress. The tension of the band is 1700kg / cm2 for maximum precision and performance with front adjustment and control microswitch. The blade guard is hinged to facilitate the blade replacement .

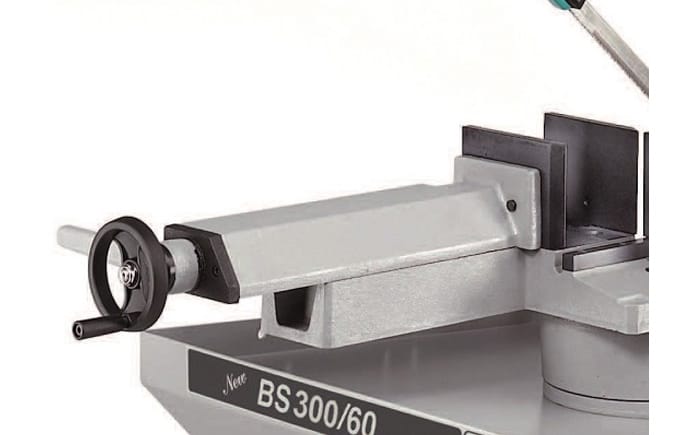

Vice adjustment

The manual front vice of BS 300/60 is equipped with a quick locking system for repetition cutting and 130mm high jaws

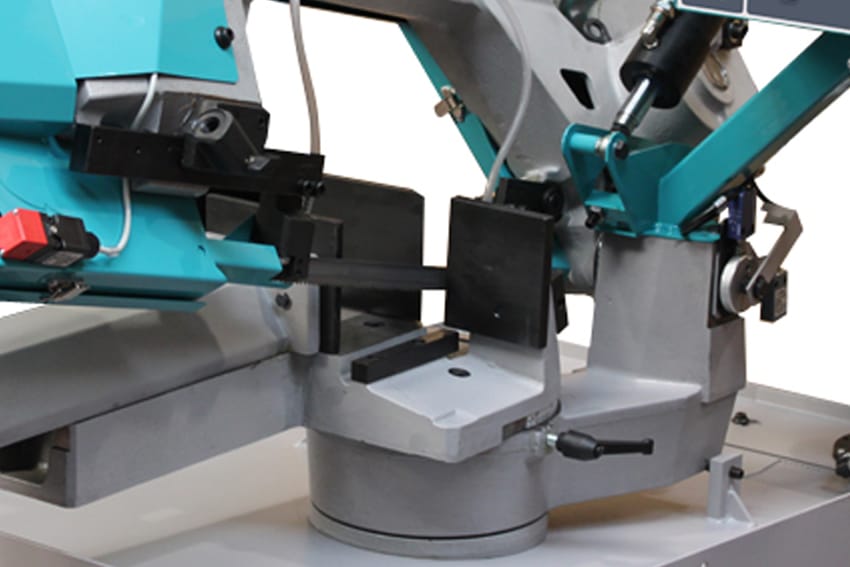

Cutting table

The machine has an automatic stop system (0 ° and 45 ° left) and a graduated scale for all other cutting angles in order to allow the operator to always have control over the cutting process.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Cutting control

3 mode selection – Manual movement with blade function disabled for fast approach to material, ideal when cutting to marked material line  – Operator setting of the start position with auto-cut function and blade stop at end of cut for unattended cutting. And pure manual cutting mode.  An amp meter is fitted to illustrate the cutting load. This can be used to determine the blade condition and machine stress.

RAB26C Connector - Loading side

Connection element for loading side roller table with 1 roller.

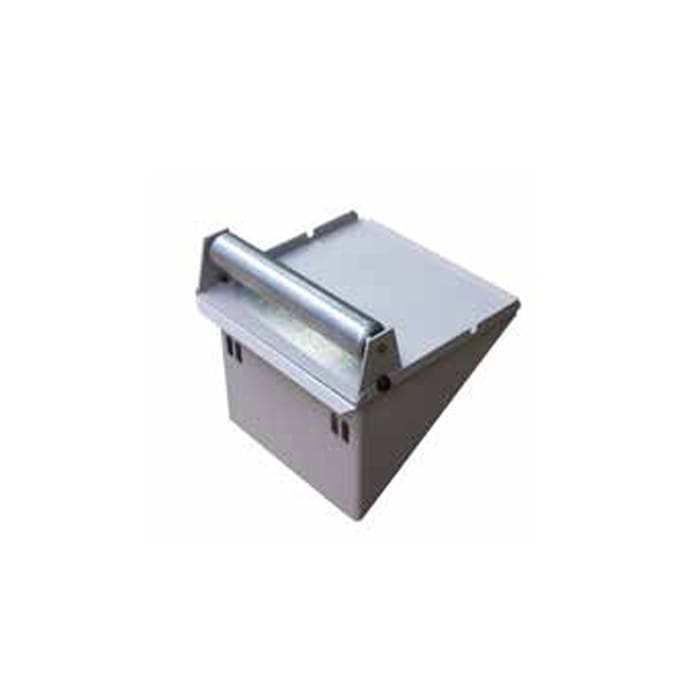

RAB26S Connector- unloading side

Connection element for unloading side roller table with 1 roller

RTSPRW30 Roller Table

Loading / unloading roller table. 1st element length 2m, capacity 700kg.

RTSSEW30 2000mm extension table available

RTMPRW30 Manual Measuring Table

Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt, capacity 700kg

RTMSEW30 2000mm extension table available

RTD2LW30 Manual Digital Measuring Table

2000mm Manual positioning with handwheel and digital display of the cutting length. Pneumatic locking on position and 50mm retraction to allow easy unloading of the cut piece.

Optional lengths:-

RTD4LW30 4000mm
RTD6LW30 6000mm

RTP3W30 NC Measuring Table

3000mm NC servo drive measuring table. 5.7″ Touch screen HMI for cutting data input. Up to 20 different cutting lengths. Automatic 50mm retreat function to allow easy unloading of the cut piece.

Optional lengths:-

RTP6W30 6000mm

R1-W30 Vertical Rollers

Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )

Additrack 3MS roller tracking table
Addison Roller Table

3000mm available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.
