Everising H 2116 Band Saw

Semi automatic twin column 90° cutting
Shuttle table 1800mm stroke
Hydraulically dual-vice full stroke clamps
Roller bearing
Hydraulically clamped carbide blade guides
Variable blade speed (inverter 12~60 m/min)
Saw frame height & return height selector

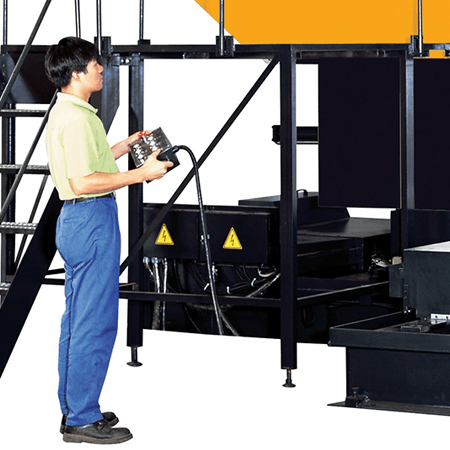

Additional portable control box

Everising H2116

Semi Automatic bandsaw ideally suited for production cutting of large solid materials including heavy tubes and sections.

H-2116
Capacity – Round Bar1600 mm
Capacity – Square2100 x 1600 mm – min clamp width 600 mm
Blade Speed12 to 60 m/min. (40 to 200 fpm) (inverter)
Blade Drive Motor15 kW (20HP)
Hydraluic Pump Motor5.5 kW (7.5HP)
Coolant Pump Motor0.4 kW (1/2 HP)
Blade Size16500 x 80 x 1.6mm (649.6″ x 3″ x 0.063″)
Blade TensionHydraulic
Index Length1800 mm
Machine Weight36000 kg
Floor Space (L x W)7920 x 4810 mm
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising blade deviation detection

A device that constantly monitors deviation of the sawblade in cut, it he user selected parameter for accuracy is exceeded the system will shut down the machine.

Projection light for quick material aligning

Anti-vibration roller

Power driven wire brush

Hydraulic blade tension

Powered movable guide arm with hydraulic lock

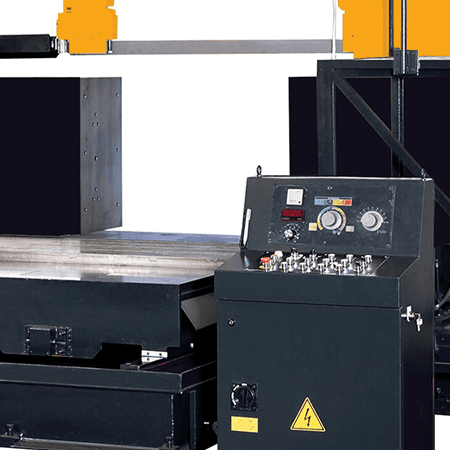

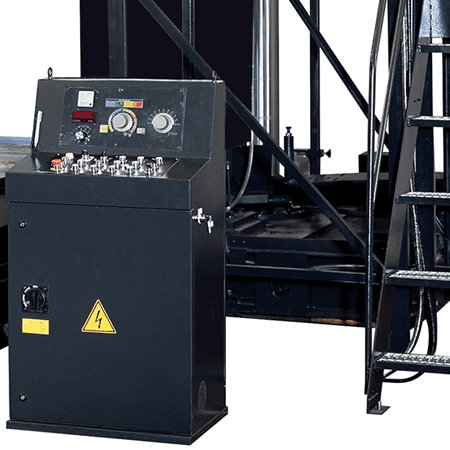

PLC control for all electric and hydraulic functions

Idler wheel motion detector

With blade stalling and breakage shut-off

Automatic chip conveyor

One set of heavy construction vice

Fence plate on discharge side

Automatic saw frame return selector

One M42 bi-metal saw blade

One set of tools and tool box
