Everising H 1816 Band Saw - Addison Saws


Everising H 1816 Band Saw

Semi automatic twin column 90° cutting 1600 mm
Hydraulic dual-vice full stroke clamps
Hydraulically clamped carbide blade guides
Variable blade speed (inverter 12~60 m/min)
Saw frame height & return height selector
Power driven wire brush
Hydraulic blade tension
Powered movable guide arm & hydraulic lock
PLC controlled electric & hydraulic functions
Idler wheel motion detector
Blade stalling and breakage shut-off
Automatic chip conveyor
Additional portable control box
Projection light for quick material aligning
Anti-vibration roller

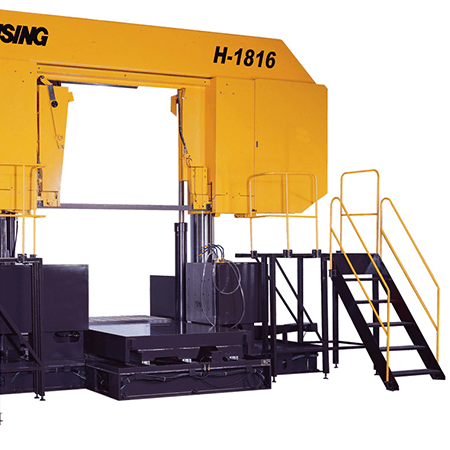

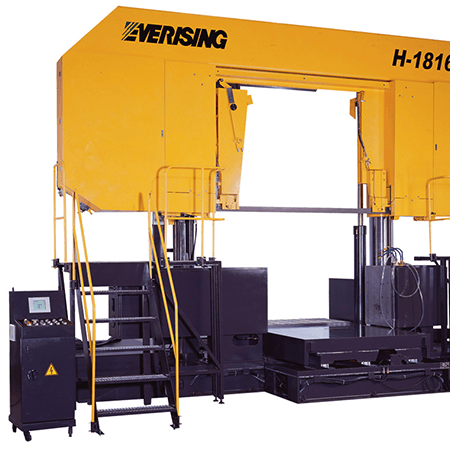

Everising H1816 Band Saw

Semi Automatic production band saw ideally suited for processing of large solid materials including heavy tubes and sections.

H-1816 Production Band Saw
Capacity – Round Bar1600 mm
Capacity – Square1800 x 1600 mm – min clamp width 600 mm
Blade Speed12 to 60 m/min. (40 to 200 fpm) (inverter)
Blade Drive Motor15 kW (20HP)
Hydraulic Pump Motor5.5 kW (7.5HP)
Coolant Pump Motor0.4 kW (1/2 HP)
Blade Size15900 x 80 x 1.6mm (626″ x 3″ x 0.063″)
Blade TensionHydraulic
Index Length1800 mm
Machine Weight33000 kg
Floor Space (L x W)7610 x 4700 mm

Everising sawing machine logo




Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising blade deviation detection

A device that constantly monitors deviation of the sawblade in cut, it he user selected parameter for accuracy is exceeded the system will shut down the machine.
