Everising H 1616 Band Saw

Semi automatic twin column 90° cutting
Shuttle table 1800mm stroke
Hydraulically controlled dual-vice full stroke
Hydraulic clamp carbide blade guide system
Variable blade speed (12~60 m/min)
Saw frame height & return height selector

Everising H1616 Band Saw

Semi Automatic bandsaw ideally suited for production cutting of very large solid materials including heavy tubes and sections.



Specification
H-1616
Capacity – Round Bar 1600 mm
Capacity – Square 1600 x 1600 mm – min clamp width 600 mm
Blade Speed 12 to 60 m/min. (40 to 200 fpm) (inverter)
Blade Drive Motor 15 kW (20HP)
Hydraluic Pump Motor 5.5 kW (7.5HP)
Coolant Pump Motor 0.4 kW (1/2 HP)
Blade Size 15500 x 80 x 1.6mm (484″ x 3″ x 0.063″)
Blade Tension Hydraulic
Index Length 1800 mm
Machine Weight 31500 kg
Floor Space (L x W) 7350 x 4900 mm

Everising sawing machine logo





Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising blade deviation detection

A device that constantly monitors deviation of the sawblade in cut, it he user selected parameter for accuracy is exceeded the system will shut down the machine.

Idler wheel motion detector

With blade stalling and breakage shut-off

Hydraulic blade tension

Wire brush

Individual motor drive power wire brush

Cutting fluid flushing hose

Aids with machine cleaning

Column type down feed system with sealed bearings

Automatic saw frame return selector

Saw frame height selector gauge

Projection light

Carbide blade guide system

Roller bearing and hydraulically clamped carbide blade guide system

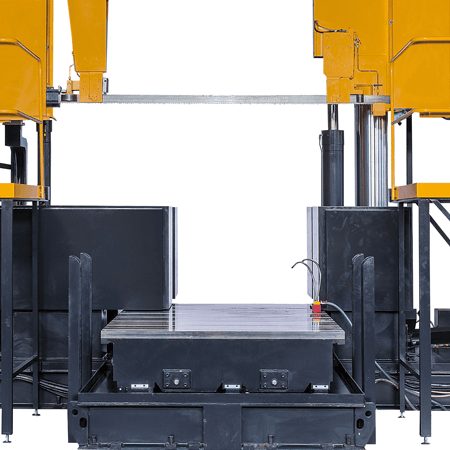

Hydraulic shuttle table

One set of heavy construction vice

Fence plate on discharge side

Anti-Vibration roller

Powered movable guide arm with hydraulic lock

Variable blade speed controlled by inverter

Automatic chip conveyor

One M42 bi-metal saw blade

One set of tools and tool box
