Gemini 5 Semi automatic double mitre saw
OZ Machinery Gemini - V SA - Image 2
OZ Machinery Gemini - V SA - Image 3
OZ Machinery Gemini - V SA - Image 4
OZ Machinery Gemini - V SA - Image 5
OZ Machinery Gemini - V SA - Image 6
OZ Machinery Gemini - V SA - Image 7
OZ Machinery Gemini - V SA - Image 8
OZ Machinery Gemini - V SA - Image 9

OZ Machinery Gemini – V SA

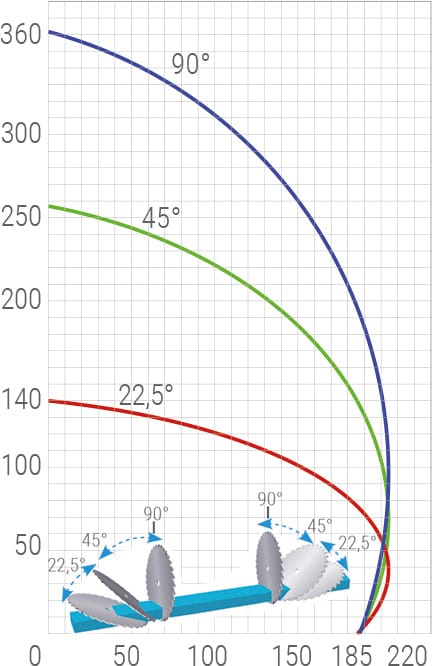

Mitre range cutting -22.5 deg to 90 deg
Pneumatic tilting of the saw head (default and 45/90.
Mechanical stop for intermediate angles

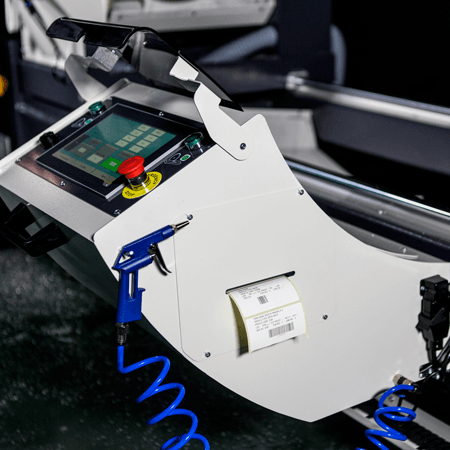

Large graphical touch screen HMI with PC control
5000mm bed (with standard long cycle can cut up to 7800mm)
External linking ability (example Orgadata)
Roller table attached to moving head
Fully adjustable blade stroke to reduce cutting times
Option for vertical vices
Bar-code printer
550mm sawblades
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.

Height Measuring

Electronic profile height measuring device

Material Support

Automatic profile support

Angle DRO

Digital confirmation display for precise head angle setting

Blade Stroke

Digital setting of the blade stroke to reduce cutting times

Gemini – V SA Double Mitre Saw

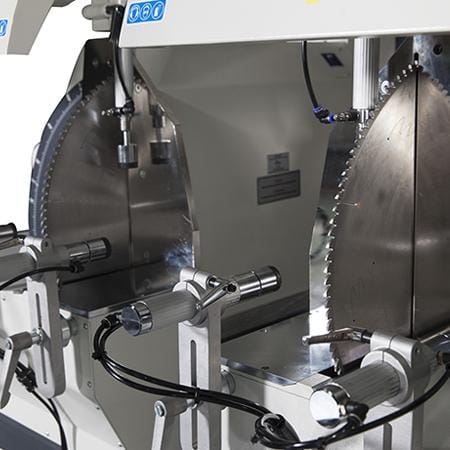

550mm CNC double mitre saw with pneumatic tilting of the saw heads, pre set angles of 90 and 45 deg and mechanical stop for intermediate angles. 5000mm bed length used for cutting processes of aluminium, plastic and wooden profiles.

TECHNICAL Unit Data
Motor power hp 4
Sawblade speed rpm 3000
Sawblade diameter mm 550
Sawblade bore mm 30/32
Servo motor power kw 1.1

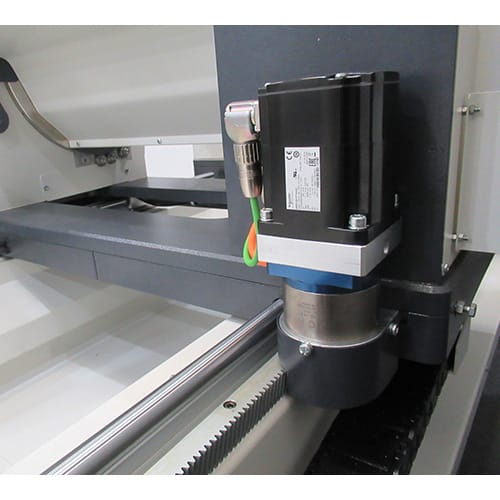

Mobile head transmission Rack & pinion
Minimum cut 90 deg / mm 400
Max cut length  90  mm / mm 5050
Air consumption L / min 100
Machine length mm 8706
Machine depth mm 1880
Machine height mm 1775
Machine weight kg 1570
Oz Machinery Company logo
Roller table

Roller support table on mobile head

Printer

Bar-Code printer

GEMINI - V SA Product Sheet
