OZ Machinery Gemini – V R

CNC 3 Axis | Reverse Double Mitre | Saw 550mm blades
New refreshed design
BI-directional cutting -22.5 deg - +45 deg

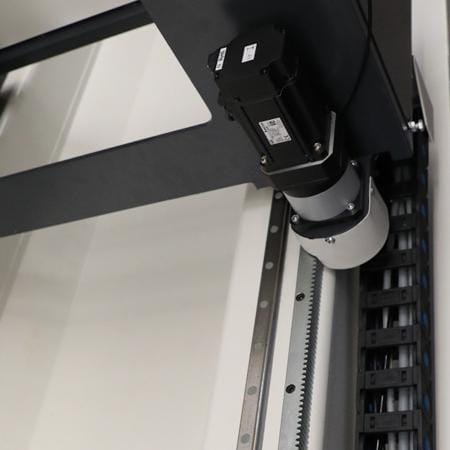

Precision servo driven heads for cutting angle selection
Large graphical touch screen HMI with PC control
5000mm bed (with standard long cut cycle can cut up to 8000mm)
External linking ability (example Orgadata)
Automatic center support
Roller table attached to both cutting heads
Fully adjustable blade stroke to reduce cutting times

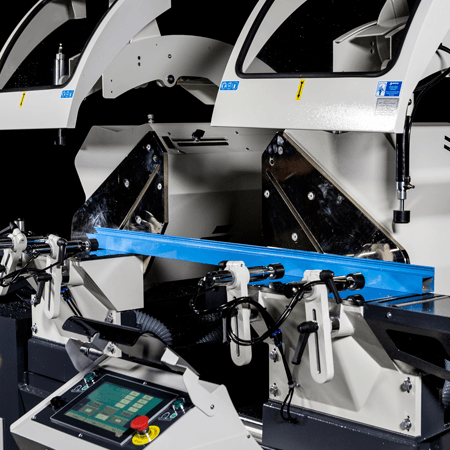

NEW integrated vertical clamps
Add to quote

OZ Machinery Gemini – V R

550mm CNC double mitre saw with bi-directional servo drive cutting heads programmed by the cnc, 5000mm bed length.

TECHNICALUnitData
Motor powerhp4
Sawblade speedrpm3000
Sawblade diametermm550
Sawblade boremm30/32
Servo motor powerkw1.1
Mobile head transmissionRack & pinion
Minimum cut 90deg / mm400
Max cut length  90 mm / mm5050
Air consumptionL / min70
Machine lengthmm8706
Machine depthmm1880
Machine heightmm1775
Machine weightkg1600

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.

Height Measuring

Electronic profile height measuring device

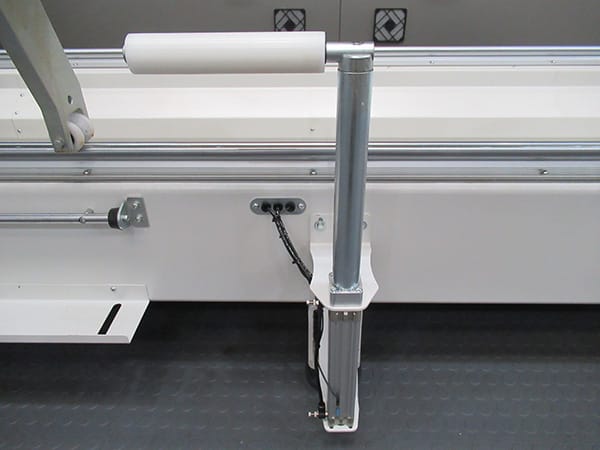

Material Support

Automatic profile support

Blade Stroke

Digital setting of the blade stroke to reduce cutting times

Sawblade

2 x 550mm TCT sawblades

Roller table

Roller support table on mobile head

Printer

Bar-Code printer

Gemini VR data sheet
