Tronzadoras 600-90 CNC Up Cut Aluminium saw
GAA 600-90 CNC Auto Saw with Drilling/Punching Option - Image 2
GAA 600-90 CNC Auto Saw with Drilling/Punching Option - Image 3
GAA 600-90 CNC Auto Saw with Drilling/Punching Option - Image 4
GAA 600-90 CNC Auto Saw with Drilling/Punching Option - Image 5
GAA 600-90 CNC Auto Saw with Drilling/Punching Option - Image 6

GAA 600-90 CNC Auto Saw with Drilling/Punching Option

CNC setting of the cutting data (20 job programs)
5.6" Colour TFT touch screen panel
Option for TR12 integrated drilling/tapping unit
Material out detection
Cutting length tolerance = +/- 0.05mm

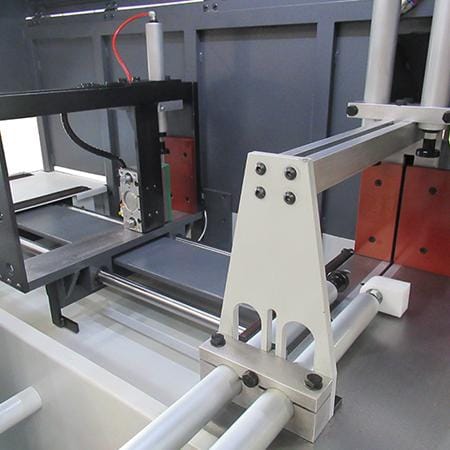

Max feeder stroke 700mm with multiple indexing
Precise control of the cutting feed rate
Hydro pneumatic feeding of the sawblade

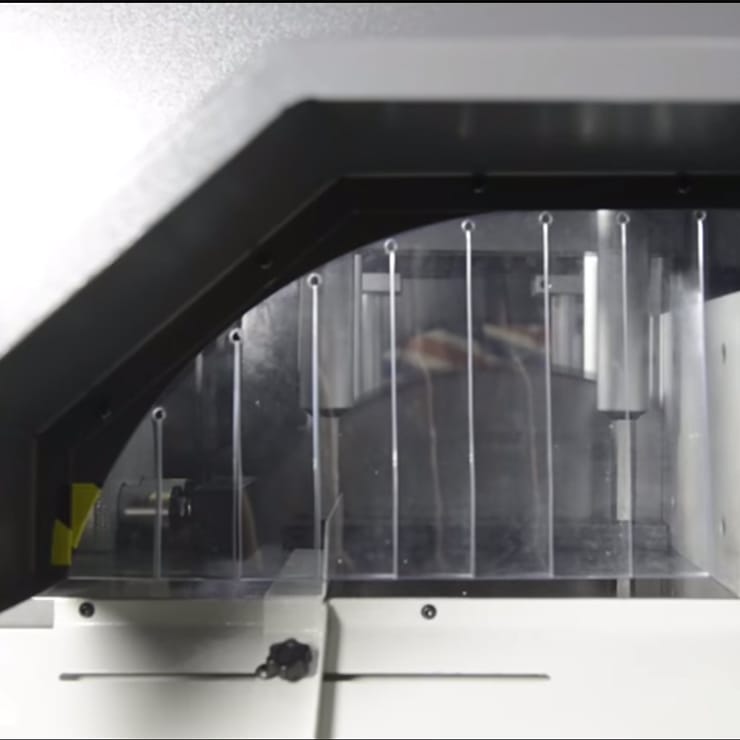

Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting
Secure horizontal & vertical pneumatic clamping
Mist spray blade lubrication
Preperation for swarf extraction
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category: Tag:

Tronzadoras MG GAA 600-90 CNC

90° production sawing of aluminium, copper, brass, plastic extrusions and solids. Widely used in a multitude of industries including, aerospace and aviation, engineering, window and door production, contract cutting, metal stockholders, electronics for heat sink production, lighting, display and exhibition, ventilation and air conditioning, automotive, and many more. The CN servo drive ball screw feeder offers highly accurate and flexible production, and can be configured during production to have vertical and horizontal drilling/punching heads with fixed Y axis position or CN servo Y axis positioning giving a very productive and flexible manufacturing machine.

TechnicalGAA-600-90 CNC
Capacity 90°Round225 mm
Square200×200 mm
Rectangle300×175 mm
Motor5,5 HP
Blade Diameter Ø 600 mm
Blade Speed3000 RPM
Blade Axis Diameter50 mm
Maximum Cutting Height225 mm
Feeder Advance RangeMultiple Advance
Pneumatic Clamps6 (3 Horiz + 3 Vert)
Weight650 kg
Dimensions2020 x 1510 x 975 mm
Drilling/Punching Heads

Available as a factory order the GAA range can be fitted with TR12 or TR20 drilling heads or bespoke punching heads to produce completed components. It is possible to mount these vertically and horizontally and on the pneumatic GAA versions there is some manual adjustment for altering the centre lines, but essentially they are mounted to produce a conceived product. The GAA-CNC versions can have these units with Y axis nc movement offering a very flexible manufacturing option.

9 Times Indexing

9 times length indexing in place of standard 2 times for automatic cutting of longer lengths.

CN Extended Feeder

Factory option to have extended feeder stroke of 1000mm in place of the standard 700mm.

Mardon EW 3 Swarf Extractor iamge
EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.

ADDIMIST SPRAY MIST cutting fluid system
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

7,5 HP (5,5kW) Motor

10 HP (7,5kW) Motor

Automatic START/STOP For Vacuum Cleaner

Blade Speed Inverter

PERTINAX Layer

Surface Protection

USB Connection

Label Printer

Barcode Reader

tct tl saw blade image
Saw Blade

Ø 600 mm TCT blade included in the machine.

Standard feature icon
5,5 HP (4 Kw) Motor

Standard feature icon
700 mm Ball Screw Servomotor Feeder

Standard feature icon
Unlimited Strokes

Standard feature icon
Pneumatic Clamping Cylinders

x2 vertical & X2 horizontal

Standard feature icon
Twin Pressure System for Clamping Security

LOW/HIGH

Standard feature icon
Cutting Advance Adjustable

Standard feature icon
Adjustable Feeding Speed

Standard feature icon
Pneumatic Lubrification

Standard feature icon
Automatic OPEN/CLOSE Hood

Standard feature icon
LED lightning

Standard feature icon
Lack of Material Sensor

Standard feature icon
Polycarbonate shield

Additrack 3MS roller tracking table
Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.

GAA 600-90 Data Sheet
