GAA 500-90 Auto Saw with Drilling/Punching Option
GAA 500-90 CNC Under Hood
T12 Drill and Tap Image

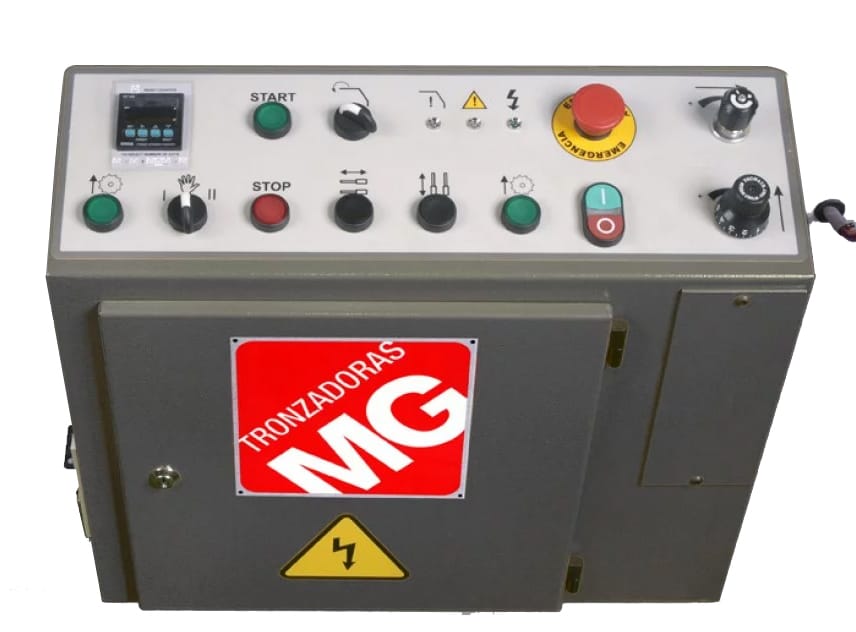

GAA500-90 Control Unit Image

GAA 500-90 Auto Saw with Drilling/Punching Option

Manual setting of the cut length with micrometer
Digital setting of the number of pieces to be cut
Option for TR12 integrated drilling unit
Material out detection
Cutting length tollerance = +/- 0.1mm
Max feeder stroke 300mm with double index 600mm
Blade stroke limiter for fast repetition cutting
Option for 1000mm feeder
Hydropneumatic feeding of the sawblade
Precise control of the cutting feed rate
Enclosed cutting zone with interlocked hood
Secure horizontal & vertical pneumatic clamping
Preperation for swarf extraction
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

Tronzadoras MG GAA 500-90

Automatic saw with pneumatic feeder for repetition 90deg cutting of non-ferrous metals. This competitively priced compact machine has been very well proven, and delivers consistent reliable performance. The 300mm feeder has a double index function as standard to cut up to 600mm. There is also an option for 9 times indexing if required. The machine can be configured during production with vertical and horizontal drilling/punching heads to produce simple finished components.

Specification:
TechnicalGAA-500-90
Capacity 90°Round150 mm
Square150 x 150 mm
Rectangle250 x 75 mm
Motor4,0 HP
Blade Diameter Ø 500 mm
Blade Speed3000 RPM
Blade Axis Diameter50 mm
Maximum Cutting Height170 mm
Feeder Advance Range500 mm (Double Advance)
Pneumatic Clamps6 (3 Horiz + 3 Vert)
Weight450 kg
Dimensions1950 x 1050 x 970 mm
Cutting Chart:

Drilling/Punching Heads

Available as a factory order the GAA range can be fitted with TR12 or TR20 drilling heads or bespoke punching heads to produce completed components. It is possible to mount these vertically and horizontally and on the pneumatic GAA versions there is some manual adjustment for altering the centre lines, but essentially they are mounted to produce a conceived product. The GAA-CNC versions can have these units with Y axis nc movement offering a very flexible manufacturing option.

ADDIMIST SPRAY MIST cutting fluid system
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

9 Times Indexing

9 times length indexing in place of standard 2 times for automatic cutting of longer lengths.

Pneumatic Extended Feeder

Factory option to have extended feeder stroke of either 500mm or 1000mm, this can be used in conjunction with the multiple index for very long lengths.

Auto START/STOP of Vacuum

Blade Speed Inverter

PERTINAX Layer Protection

Ask for more information regarding this option.

Motor Upgrade

  • Motor 7,3 HP (5,5kW)

  • Motor 10 HP (7,5kW)

0-9 strokes

tct tl saw blade image
Saw Blade Included

Ø 500 mm  TCT blade included in the machine

Standard feature icon
5,3 HP (4kW) Motor

Standard feature icon
500 mm oleo-pneumatic feeder

Standard feature icon
Twin stroke (500 + 500 mm)

Standard feature icon
Pneumatic Clamping Cylinders

  • 2x pneumatic vertical  clamping cylinders

  • 2x pneumatic horizontal clamping cylinders

Standard feature icon
Twin pressure system for clamping security

LOW/HIGH

Standard feature icon
Cutting advance adjustable

Standard feature icon
Adjustable feeding speed

Standard feature icon
Pneumatic lubrification

Standard feature icon
Automatic OPEN/CLOSE hood

Standard feature icon
LED lighting

Standard feature icon
Lack of material sensor

Standard feature icon
Polycarbonate shield

Additrack 3MS roller tracking table
Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.

GAA 500-90 Data Sheet
