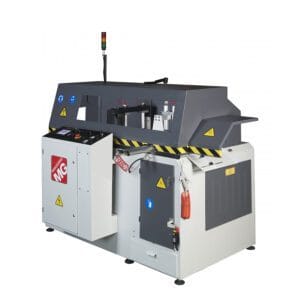

Aluminium cutting automatic circular saw from Tronzadoras MG

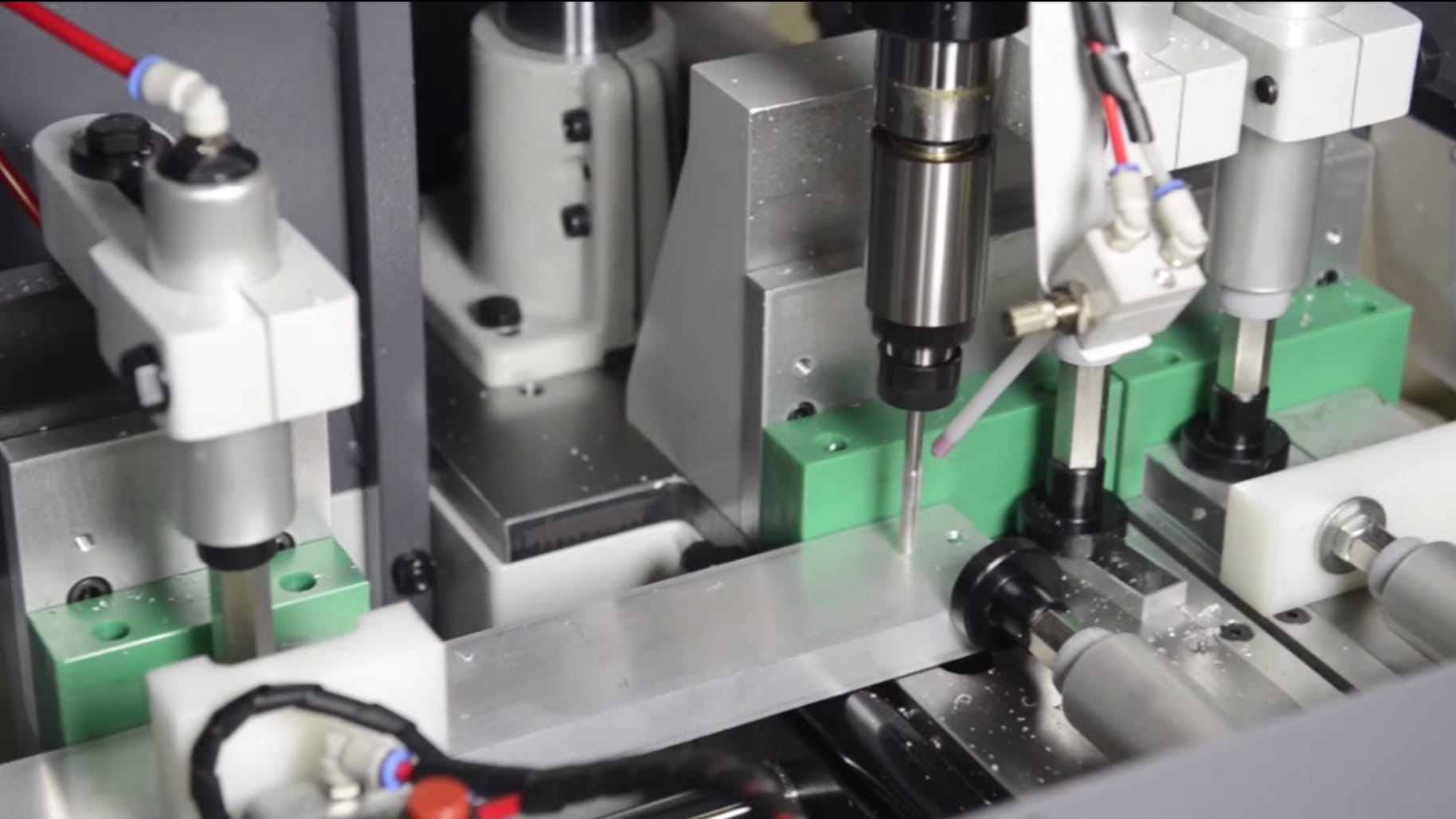

T12 Drill and Tap Image
GAA 350-90 CNC Auto Saw with Drilling/Punching Options - Image 3
GAA 350-90 CNC Auto Saw with Drilling/Punching Options - Image 4
GAA 500-90 CNC Under Hood

GAA 350-90 CNC Auto Saw with Drilling/Punching Options

CNC setting of the cutting data (20 job programs)

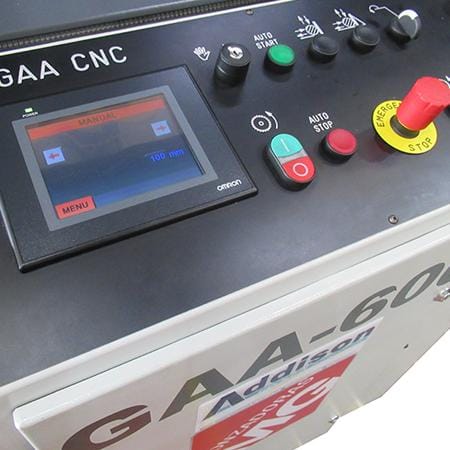

5.6" Colour TFT touch screen panel

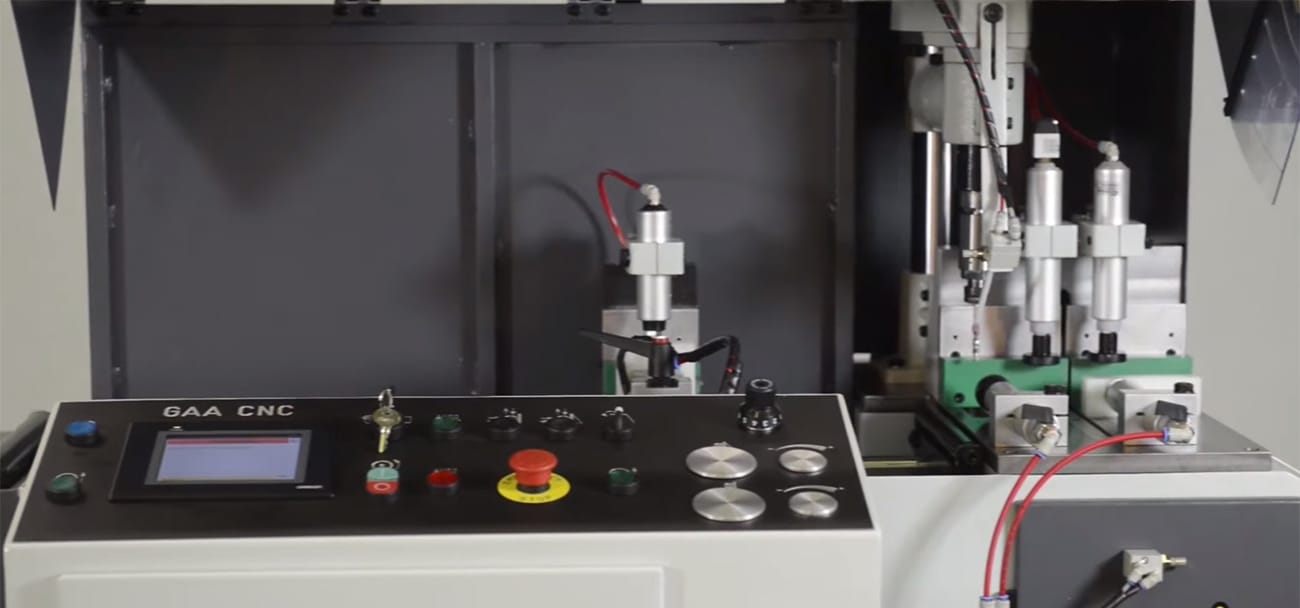

Option for TR12 intergrated drilling/tapping unit
TR12 available w/ CNC Y axis movement for drilling variable centrelines
Material out detection
Cutting length tollerance = +/- 0.05mm
Max feeder stroke 700mm with multiple indexing
Hydropneumatic feeding of the sawblade
Precise control of the cutting feed rate
Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting
Mist spray blade lubrication
Secure horizontal & vertical pneumatic clamping
Preperation for swarf extraction
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category: Tags: ,

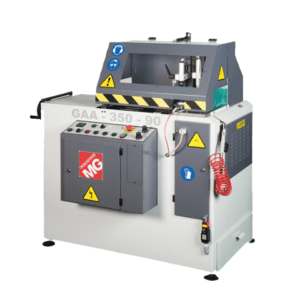

Tronzadoras MG GAA 350-90 CNC

Automatic cold saw with 90° production sawing of aluminium, copper, brass, plastic extrusions and solids. Widely used in a multitude of industries including; aerospace, aviation, engineering, window and door production, contract cutting, metal stockholders, electronics for heat sink production, lighting, display and exhibition, ventilation and air conditioning, automotive, and many more. The CN servo drive ball screw feeder offers highly accurate and flexible production, and can be configured during production to have vertical and horizontal drilling/punching heads with fixed Y axis position or CN servo Y axis positioning giving a very productive and flexible manufacturing machine.

TechnicalGAA-350-90 CNC
Capacity 90°Round100 mm
Square100 x 100 mm
Rectangle170 x 60 mm
Motor2,5 HP
Blade Diameter Ø 350 mm
Blade Speed3000 RPM
Blade Axis Diameter32 mm
Maximum Cutting Height100 mm
Feeder Advance Range700 mm (Multiple Advances)
Pneumatic Clamps6 (3 Horiz + 3 Vert)
Weight350 kg
Dimensions1500 x 1400 x 970 mm

Drilling/Punching Heads

Available as a factory order the GAA range can be fitted with TR12 or TR20 drilling heads or bespoke punching heads to produce completed components. It is possible to mount these vertically and horizontally and on the pneumatic GAA versions there is some manual adjustment for altering the centre lines, but essentially they are mounted to produce a conceived product. The GAA-CNC versions can have these units with Y axis NC movement offering a very flexible manufacturing option.

ADDIMIST SPRAY MIST cutting fluid system
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

9 Times Indexing

9 times length indexing in place of standard 2 times for automatic cutting of longer lengths.

CN Extended Feeder

Factory option to have extended feeder stroke of 1000mm in place of the standard 700mm.

Automatic START/STOP of vacuum cleaner

Blade speed inverter

PERTINAX layer

Surface protection

USB connection

Label printer

Barcode reader

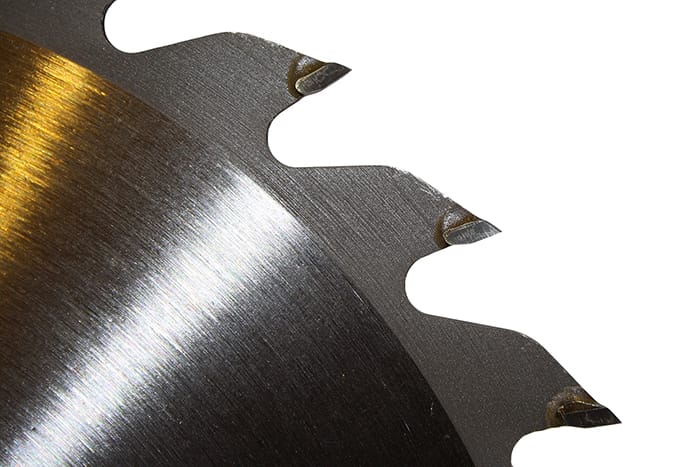

tct tl saw blade image
Saw Blade

Ø 350 mm TCT blade included in the machine

Standard feature icon
2,5 HP Motor

Standard feature icon
700 mm ball screw servomotor feeder

Standard feature icon
Unlimited strokes

Standard feature icon
Pneumatic Clamping Cylinders

  • 2x pneumatic vertical  clamping cylinders

  • 2x pneumatic horizontal clamping cylinders

Standard feature icon
Twin pressure LOW/HIGH system for clamping security

Standard feature icon
Cutting advance adjustable

Standard feature icon
Adjustable feeding speed

Standard feature icon
Pneumatic lubrification

Standard feature icon
Automatic OPEN/CLOSE hood

Standard feature icon
LED lighting

Standard feature icon
Lack of material sensor

Standard feature icon
Polycarbonate shield ​

Additrack 3MS roller tracking table
Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.
