Everising S4633 S/A Bandsaw

The perfect machine for general fabrication including mitre cutting of 305mm I beams. This well proven, reliable two way mitre bandsaw is commonly used for fabrication of structural steel products, general fabrication process, maintenance and agricultural products etc.

Model			S-4633SA
Capacity	0°	Round	330mm
		Square	460 x 305mm
	±45°	Round	305mm
		Square	305 x 305mm
	-60°	Round	220mm
		Square	250 x 220mm
Blade Speed			25, 45, 70, 100 m/min (83, 150, 230, 330 fpm)
Motor	Blade Drive		2.2 kW (3 HP)
	Hydraulic Pump		0.4 kW (1/2 HP)
	Coolant Pump		0.1 kW (1/8 HP)
Blade Size			4115x27x0.9mm
Blade Tension			Manual
Angle Swivel			Manual
Angle Display			Angle Scale
Table Height			770 mm
Vice Clamping Type			Rack type
Machine Weight			800 kg
Floor Space ( W x D )			2100x2050mm

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Battery Laser Line

Premium quality battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line.

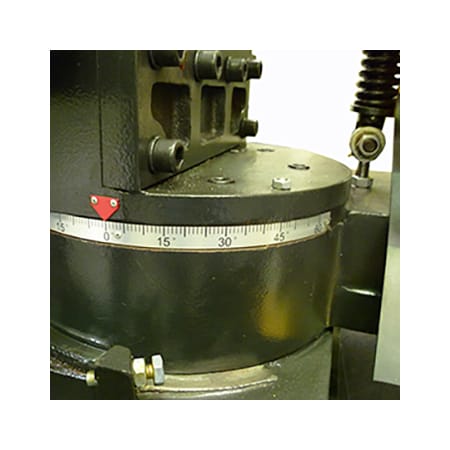

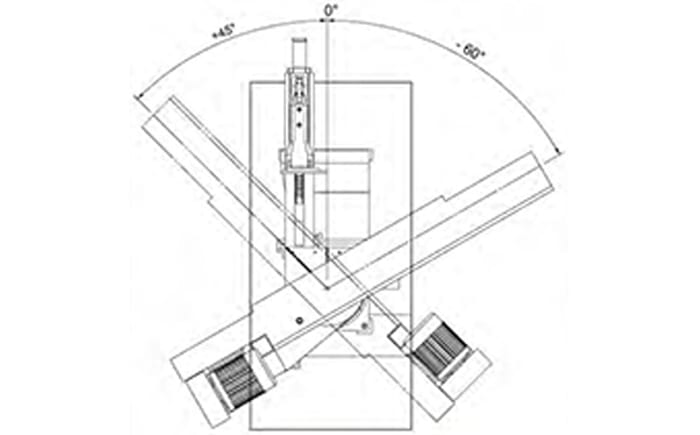

Bi-direction angle swivel

-60° ~ 0° ~ +45° includes scale indicator

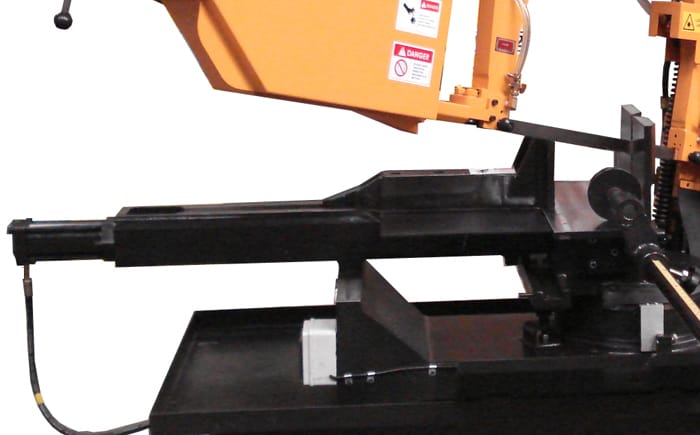

Hydraulic vice clamping system

Short stroke with quick set ratchet system for increased safety and durability as there is very little piston shaft exposed to potential damage.

Hydraulic flow down feed control

Precision control of the down feed speed

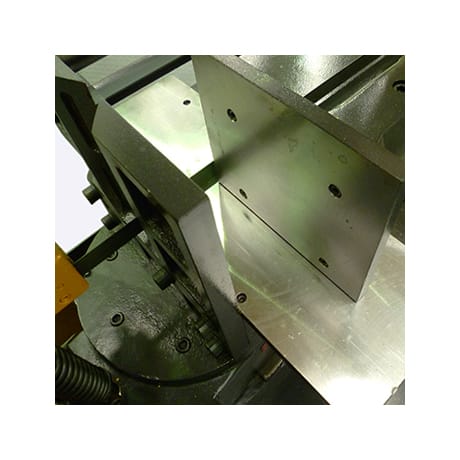

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.
