Everising P75-ILA Billet Saw

Ultra high speed carbide billet sawing system | 75mm Capacity
Inclined linear cutting action
Ultimate, unbeatable performance,

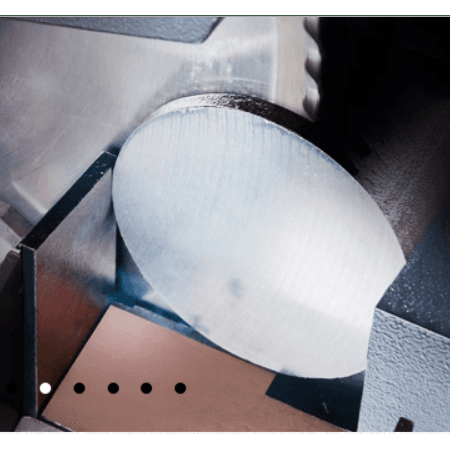

Micro grain quality surface finish

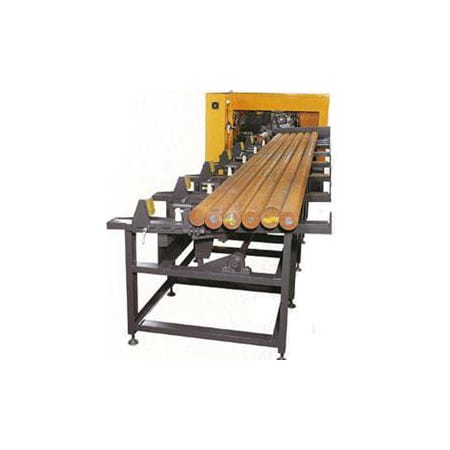

Automatic loading magazine for round bars

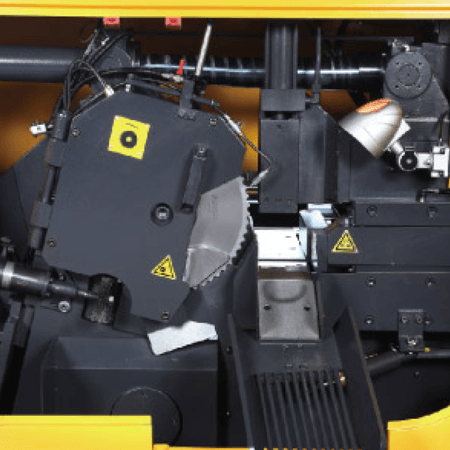

Servo driven cutting head for precise control

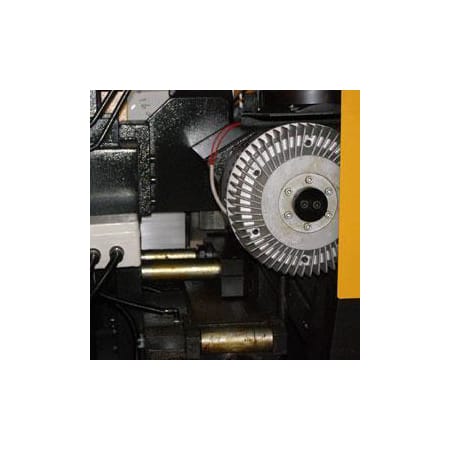

Electro magnetic powder backlash control

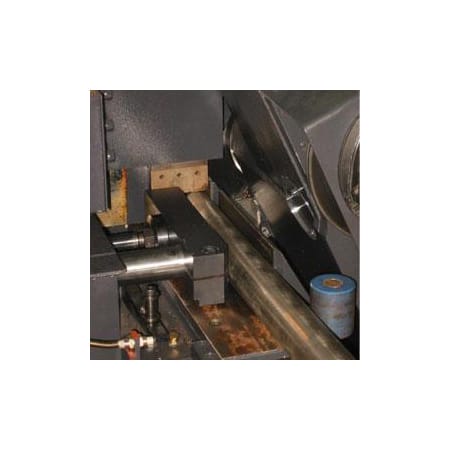

Floating shuttle vice to deal with bent bars
Automatic swarf removal system
Micro mist pure oil blade lubrication system
Cut piece sorting with discharge chute
Very low cost per cut

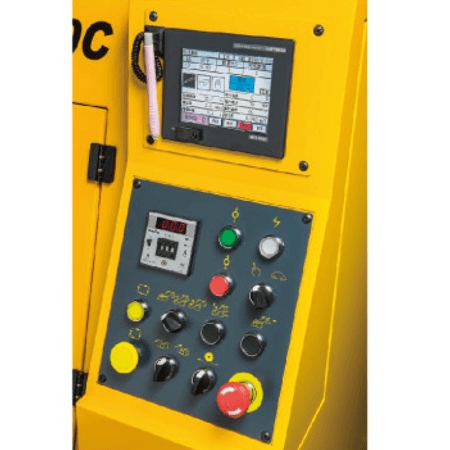

User friendly touch screen control
CNC monitors & adjusts all cutting parameters
Hydraulic piece sorter

Everising P75-ILA

Ultra high speed billet sawing system with inclined linear cutting action using circular blades tipped with either TCT or Cermet dependant on material to be cut. These machines are unbeatable for performance with a cut finish that is sometimes good enough to eliminate a second process. The P series come standard with automatic loading system for round bar with other types of loading and unloading solutions available also.

P-75C
Capacity – Round10 – 75 mm
Capacity – Square10 – 54 mm
Capacity – Rectangle 10 – 54 mm
Blade Motor7.5 kW
Hydraulic Pump Motor1.5 kW
Blade Feed Motor1.5 kW
Bar Feed Motor1 kW
3rd Vice Motor1 kW
Blade Speed50 – 200 rpm
Saw Blade Size – StandardØ 285 x T2.0 x 1.75t mm
Saw Blade Size -Thin KerfØ 285 x T1.5 x 1.25t mm
Blade FeedServo motor and Ball Screw
Bar FeedServo Motor and Ball Screw
Automatic Single Feed Length8 – 600 mm
Automatic Multiple Feed Length – 3000 mm
Automatic Chip ConveyorScraper Type

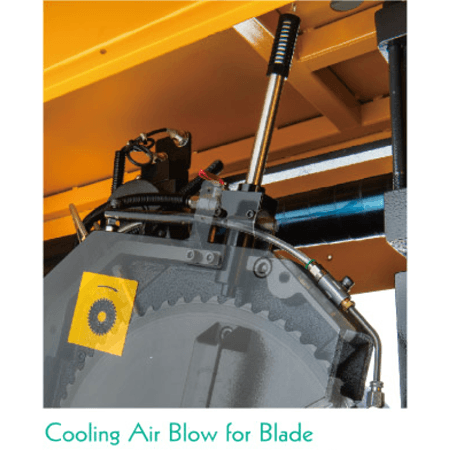

CoolingAir Compressed Oil Mist
Machine Weight with Table3200 kgs
Loading Table (W x L)1200 mm x 5200 mm
Floor Space (mm)Machine 2700 W x 1900 L (6835 L + loading table)
