Everising P50-ILA Billet Saw

Ultra high speed linear feed billet sawing system | 50mm Capacity
Ultimate, unbeatable performance

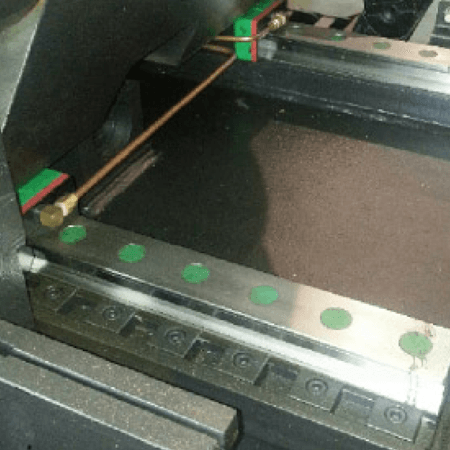

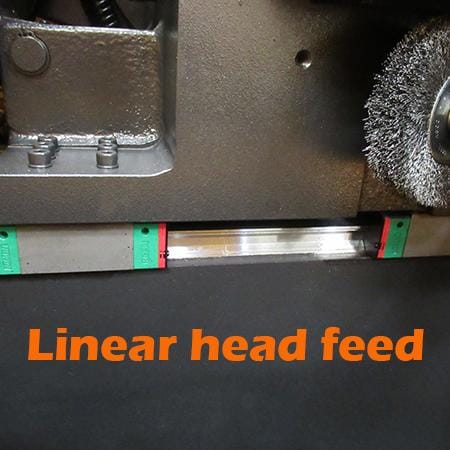

Linear feed of saw blade for optimum stability
Micro grain quality surface finish
Automatic loading magazine (round & square)

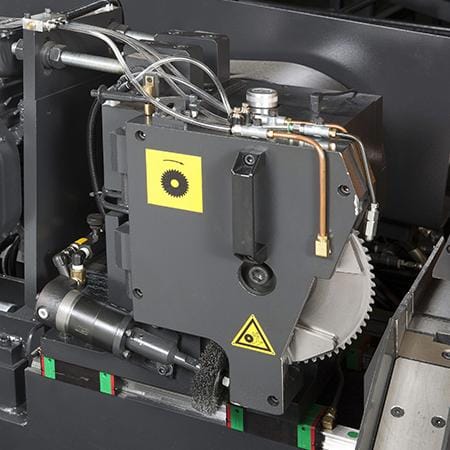

Servo driven cutting head for precise control
Servo feed of the shuttle vice
Floating shuttle vice to deal with bent bars
Automatic swarf removal system
Micro mist pure oil blade lubrication system
Cut piece sorting with discharge chute
Very low cost per cut
User friendly touch screen control
CNC monitors & adjusts cutting parameters
Configured to work with Cermet & TCT blades

Everising P50-ILA

Ultra high speed billet sawing system with linear feed of the sawblade, using circular blades tipped with either TCT or Cermet dependant on material to be cut. These machines are unbeatable for performance with a cut finish that is sometimes good enough to eliminate a second process. The P-ILA series comes standard with automatic loading system for round bar with other types of loading and unloading solutions also available.

Capacity – round bar / tube8mm to 50mm
Capacity square bar / tube8mm to 40mm
Main motor power10HP
Hydraulic pump motor2HP
Blade speed range17-200rpm
Sawblade dimensions250mm x 2.0mm kerf x 1.75 body thickness

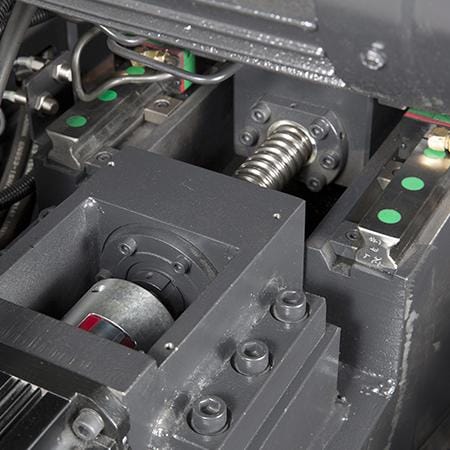

Bar feeder typeBall screw transmission with servo drive
Blade feed typeBall screw transmission with servo drive
Feeder stroke6mm to 400mm (3000mm with multiple indexing)
Chip conveyorHydraulic spiral design
Blade lubricationPure oil mist
Total machine weight1900kg
Machine dimensions (W-L)1900mm x 1500mm
Air Filter

Variable Vice Pressure

Cutting Fluid Coolant System

Air blowing device for tube cutting

Long bar supporting system

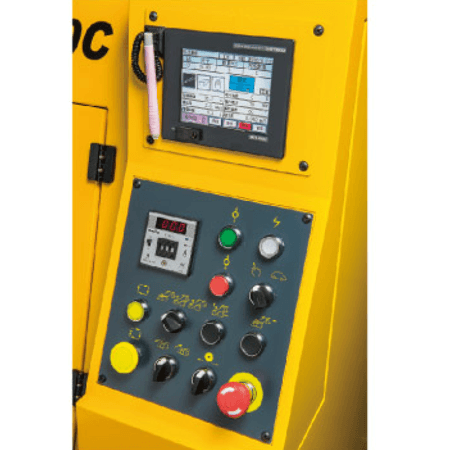

Touch Screen

User friendly, easy to operate touch screen system

Hydraulic clamped front & vertical vice

Floating shuttle device

For precise material feeding

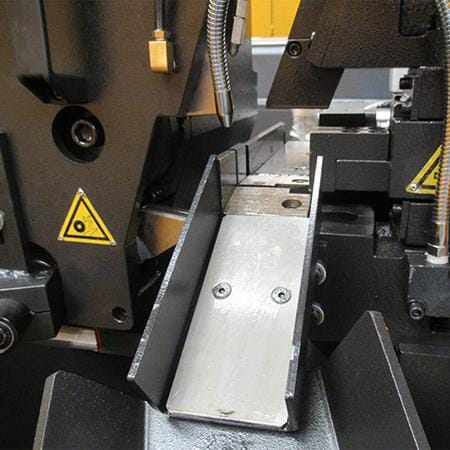

Hydraulic sorting chute

Power driven wire brush

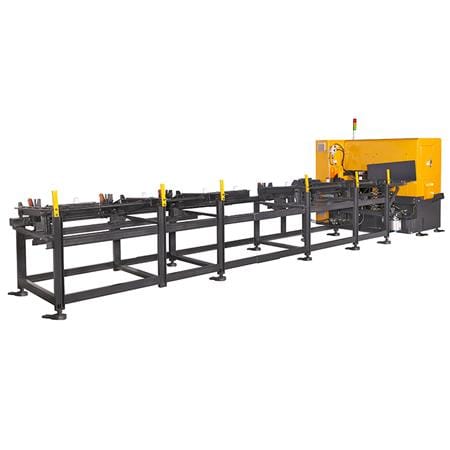

Automatic loading table

Only for 5M long round bar

Saw Blade

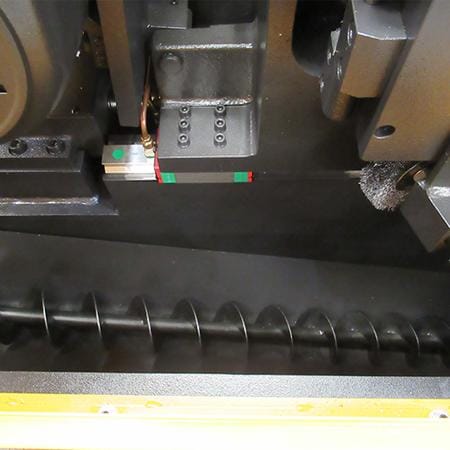

Automatic chip conveyor
