Everising P230-ILA Billet Saw

Ultra high speed carbide billet sawing system | 230mm Capacity
Inclined linear blade feed
Ultimate, unbeatable performance,
Use with TCT & Cermet tipped saw blades
Full servo control of cutting & feeding
Micro grain quality surface finish
Automatic loading magazine for round bars
Ability to load round and square bars
Servo driven cutting head for precise control
Electro magnetic powder backlas control
Floating shuttle vice to deal with bent bars
Automatic swarf removal system
Micro mist pure oil blade lubrication system
Cut piece sorting with discharge chute
Very low cost per cut

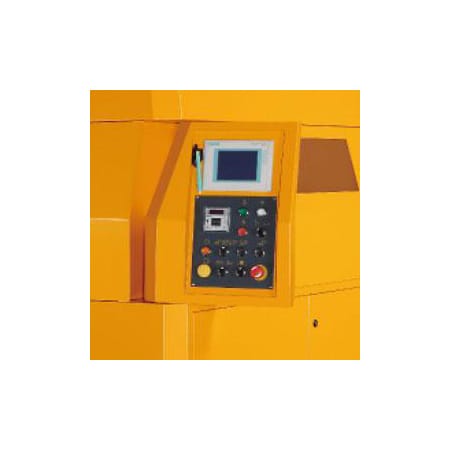

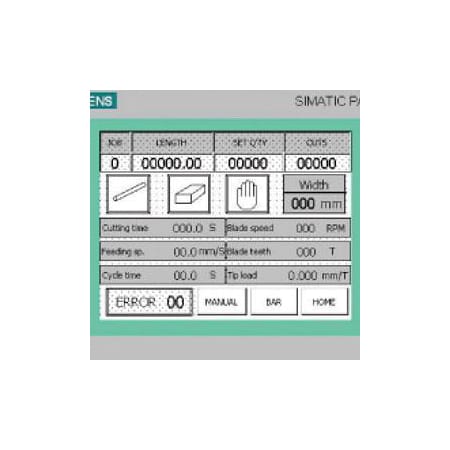

User friendly touch screen control
CNC monitors & adjusts cutting parameters

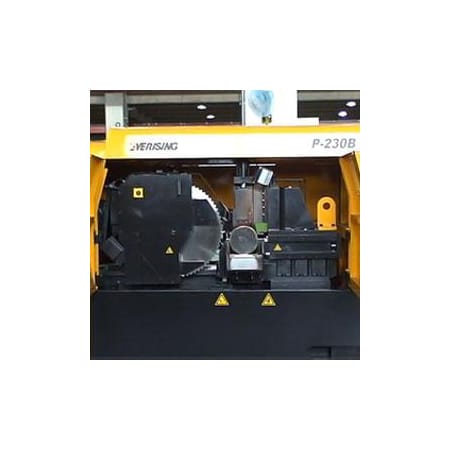

Everising P230-ILA

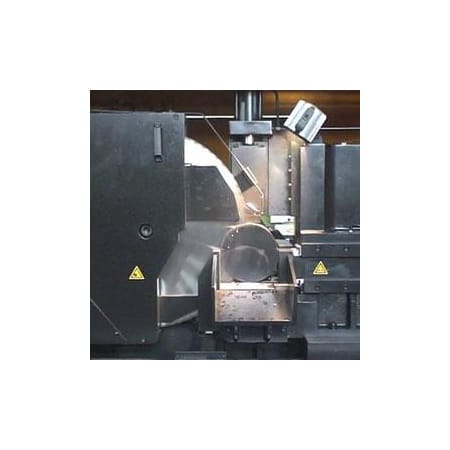

Ultra high speed billet sawing system with advance inclined linear blade feed using circular blades tipped with either TCT or Cermet dependant on material to be cut. These machines are unbeatable for performance with a cut finish that is sometimes good enough to eliminate a second process. The P series come standard with automatic loading system for round bar with other types of loading and unloading solutions also available.

Capacity – Round70 – 230 mm
Capacity – Square70 – 160 mm
Capacity – Rectangle
Blade Motor15 kW
Hydraulic Pump Motor3.7 kW
Blade Feed Motor 3.5 kW
Bar Feed Motor 3.5 kW
3rd Vice Motor
Blade Speed30 – 125 rpm
Saw Blade Size – StandardØ 750 x T3.8 x 3.2t mm
Saw Blade Size -Thin Kerf

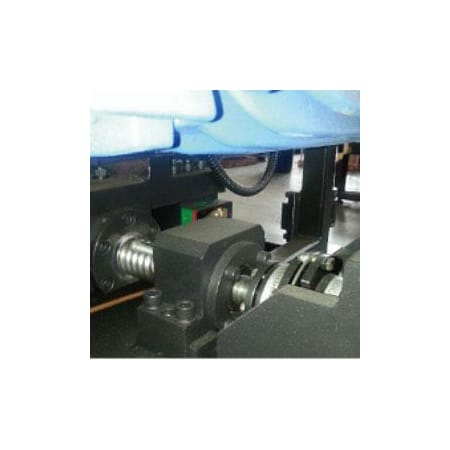

Blade FeedServo motor and Ball Screw
Bar FeedServo Motor and Ball Screw
Automatic Single Feed Length10 – 500 mm
Automatic Multiple Feed Length – 3000 mm
Automatic Chip ConveyorChain Type
CoolingAir Compressed Oil Mist
Machine Weight with Table8000 kgs
Loading Table (W x L)2286 mm x 5380 mm
Floor Space (mm)Machine 3510 W x 1825 L (7120 L + loading table)
