Everising H5550 Bandsaw

Hydraulic blade tension
Roller bearing
hydraulically clamped carbide blade guide
Hydraulic work lift roller
Manual ratchet feed
Split vise jaws for nib free cutting
Power driven wire brush

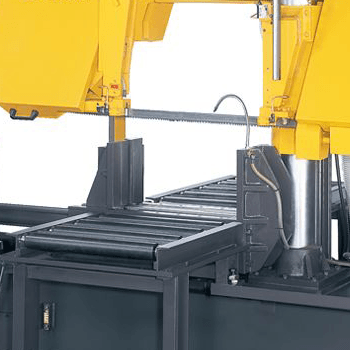

Infeed & outfeed roller conveyors
Idler wheel motion detector
Blade stalling & breakage shut-off
Automatic saw frame return selector
Cutting fluid flushing hose for cleaning
Cut line projection light
Roller stock table 1M long
Scroll for more info ⬇️
Everising vice pressure reducer

Vice pressure reduction valves with gauges for thin walled materials, the gauges help record the relevant pressure for repeated jobs.

Everising Inverter Variable Speed

Variable blade speed with inverter and digital display

Everising Swarf Remover

Hydraulic centreless swarf remover

Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

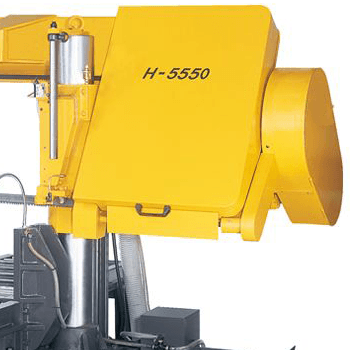

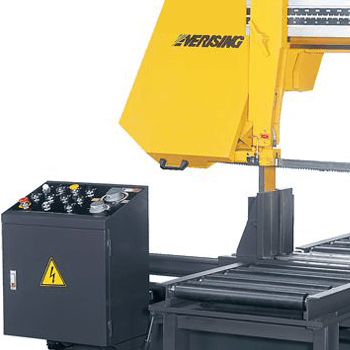

Everising H5550 Bandsaw

Semi Automatic bandsaw ideally suited for production cutting of large solid materials including heavy tubes and sections.

H-5550
Capacity – Round Bar 500 mm
Capacity – Square 550 x 550 mm
Blade Speed 17, 25, 35, 45, 65, 75 m/min (55, 80, 115, 150, 180, 215, 250 fpm)
Blade Drive Motor 5.5 kW (7.5 HP)
Hydraluic Pump Motor 1.5 kW (2 HP)
Coolant Pump Motor 0.2 kW (1/4 HP)
Blade Size 4880 x 41 x 1.3mm (192″ x 1.6″ x 0.05″)
Blade Tension Hydraulic
Index Length
Machine Weight 2100 kgs
Floor Space (L x W) 2550 x 1900 mm
Additrack 2M

Roller support table 2000mm long with 350mm or 500mm wide rollers.
