Everising H 1613 Twin Pillar Band Saw

Semi automatic twin column 90° cutting / 1300mm round bar capacity
Hydraulically clamped carbide blade guide

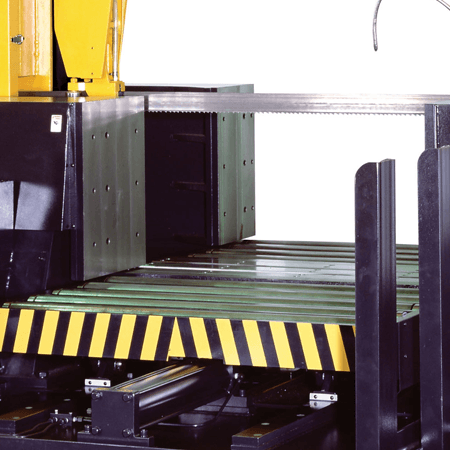

Hydraulically controlled dual-vice full stroke
Saw frame height & return height selector
Variable blade speed (inverter 15~70 m/min)
Shuttle table 600mm stroke
Powered movable guide arm & hydraulic lock
Automatic chip conveyor
Power driven wire brush
Hydraulic blade tension
Anti-vibration roller
Idler wheel motion detector
Blade stalling & breakage shut-off

Everising H1613

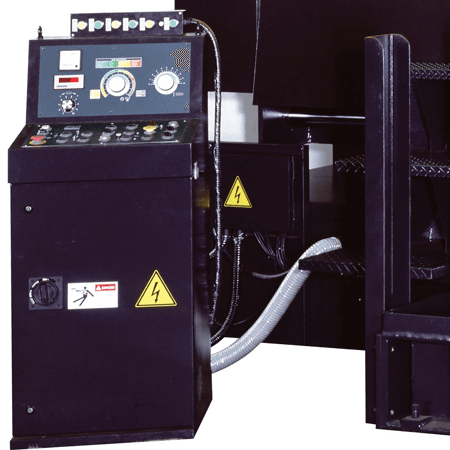

Semi Automatic bandsaw ideally suited for production cutting of large solid materials including heavy tubes and sections. PLC controlled electric & hydraulic functions with additional portable control box.

H-1613
Capacity – Round Bar1300 mm
Capacity – Square1600 x 1300 mm – min clamp width 710 mm
Blade Speed15 to 70 m/min. (50 to 230 fpm) (inverter)
Blade Drive Motor15 kW (20HP)
Hydraluic Pump Motor3.7 kW (5HP)
Coolant Pump Motor0.2 kW (1/4 HP)
Blade Size13000 x 80 x 1.6mm (511″x 3″ x 0.063″)
Blade TensionHydraulic
Index Length600 mm
Machine Weight20000 kg
Floor Space (L x W)5950 x 2800 mm
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising blade deviation detection

A device that constantly monitors deviation of the sawblade in cut, it he user selected parameter for accuracy is exceeded the system will shut down the machine.
