Everising H 1300 Band Saw

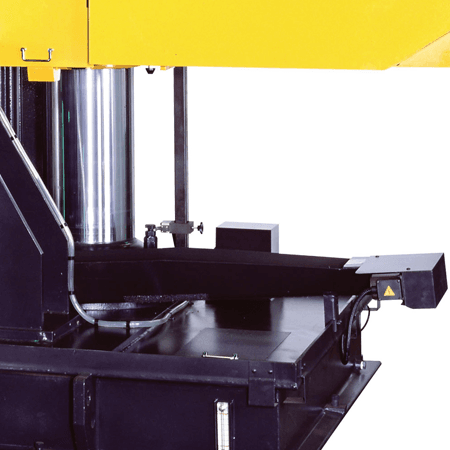

Semi automatic twin column 90° cutting / 1300mm capacity
Idler wheel motion detector
Blade stalling & breakage shut-off
Hydraulically clamped carbide blade guides

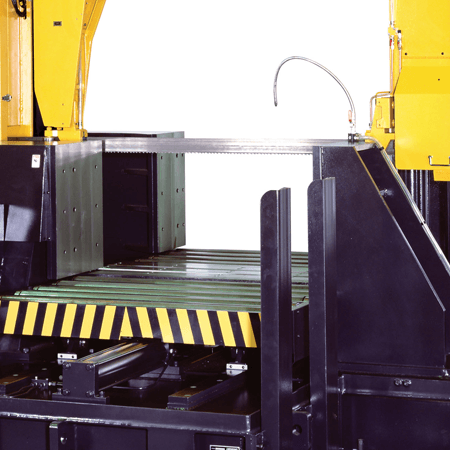

Hydraulic dual-vice full stroke clamps
Saw frame height & return height selector
Variable blade speed (inverter 15~70 m/min)
PLC controlled electric & hydraulic functions
Shuttle table 600mm stroke
Powered movable guide arm & hydraulic lock
Projection light for quick material aligning

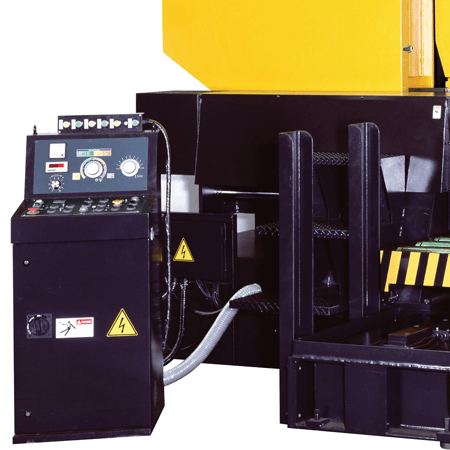

Additional portable control box
Automatic chip conveyor
Power driven wire brush
Hydraulic blade tension
Anti-vibration roller

Everising H1300

Semi Automatic bandsaw ideally suited for production cutting of large solid materials including heavy tubes and sections.

H-1300
Capacity – Round Bar 1300 mm
Capacity – Square 1300 x 1300 mm – min clamp width 570 mm
Blade Speed 15 to 70 m/min. (50 to 230 fpm) (inverter)
Blade Drive Motor 15 kW (20HP)
Hydraluic Pump Motor 3.7 kW (5HP)
Coolant Pump Motor 0.2 kW (1/4 HP)
Blade Size 12300 x 80 x 1.6mm (484″x 3″ x 0.063″)
Blade Tension Hydraulic
Index Length 600 mm
Machine Weight 16000 kg
Floor Space (L x W) 5600 x 2800 mm
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising blade deviation detection

A device that constantly monitors deviation of the sawblade in cut, it he user selected parameter for accuracy is exceeded the system will shut down the machine.
