Everising H 1010 Band Saw

Semi auto twin column 90° cutting 1000mm capacity
Roller bearing & clamped carbide blade guide
Idler wheel motion detector + blade stalling
Hydraulic dual-vice full stroke system
Variable blade speed (inverter 15~70 m/min)
Saw frame & return height selector gauge
Powered movable guide arm - hydraulic lock
PLC controlled electric & hydraulic functions
Projection light for quick material aligning
Additional portable control box
Shuttle table 500mm stroke
Power driven wire brush

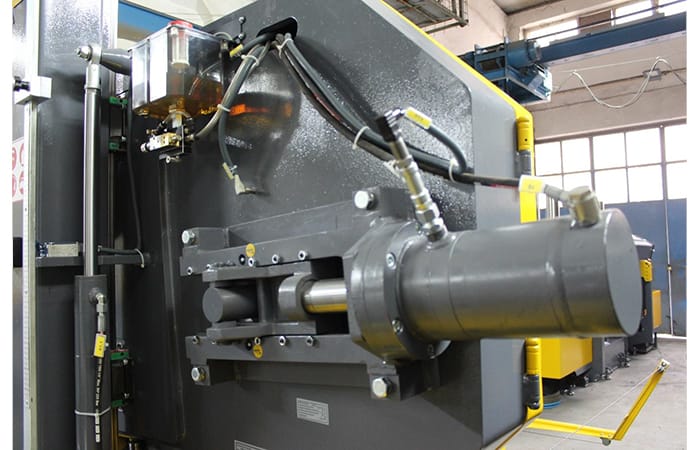

Hydraulic blade tension
Automatic chip conveyor
Anti-vibration roller

Everising H8276 V/T

Semi Automatic bandsaw ideally suited for production cutting of large solid materials including heavy tubes and sections.

H-1010
Capacity – Round Bar 1000 mm
Capacity – Square 1000 x 1000 mm – min clamp width 570 mm
Blade Speed 15 to 70 m/min. (50 to 230 fpm) (inverter)
Blade Drive Motor 11.5 kW (15HP)
Hydraluic Pump Motor 3.7 kW (5HP)
Coolant Pump Motor 0.2 kW (1/4 HP)
Blade Size 8800 x 67 x 1.6mm (346.5″x 2 5/8″ x 0.063″)
Blade Tension Hydraulic
Index Length 500 mm
Machine Weight 9500 kg
Floor Space (L x W) 4150 x 2280 mm
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising blade deviation detection

A device that constantly monitors deviation of the sawblade in cut, it he user selected parameter for accuracy is exceeded the system will shut down the machine.

Column type down feed system with sealed bearings

Variable blade speed controlled by inverter

Hydraulically controlled full stroke dual vice clamping system

Roller bearing and hydraulically clamped carbide blade guide system

PLC control for all electric and hydraulic functions

Saw frame height selector gauge

Power driven wire brush

Hydraulic blade tension

Anti-Vibration roller

Powered movable guide arm with hydraulic lock

Independent electric cabinet and control panel

Idler wheel motion detector with blade stalling and breakage shut-off

Automatic saw frame return selector

Cutting fluid flushing hose for machine cleaning

Automatic chip conveyor

Projection light

One M42 bi-metal saw blade

One set of tools and tool box
