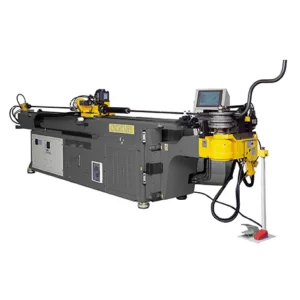

CSM TDRE 2 stack 4 Axis Hybrid
CNC Electric Hybrid tube bender
Key Features
Servo driven bend arm (C) axis
Hydraulic clamp die
Hydraulic pressure die
Servo driven Y axis carriage
Servo driven collet rotation (B) axis
hydraulic collet grip
Servo driven tooling shift left/right & hydraulic up/down
Automatic mandrel lubrication
Anticipated mandrel retraction
Remote control panel
User friendly touch screen HMI with 3D bending simulation
Unlimited number of job programs
Rear Boost for x 1D bending available
3D preview and collision prevention
CSM TDRE
The TDRE model is a hybrid bender intended for the 3D bending and rolling of tubes and profiles.
The machine has servo driven B, C, X and Y axis (tube rotation, bending, transverse shift of the bending head, and tube positioning) whilst clamping elements are hydraulic as is the vertical shift of the bending head (tooling stack change). Additionally the machine comes equipped with automatic mandrel retraction and lubrication. It is possible to fit the machine with two different draw bending tools or alternatively, one draw bending tool with rollers on the upper stack for the rolling of big radius bends.
Operated from a control panel with a touch display mounted on a portable stand the machine software is on an industrial PC with Windows XP allowing the input of data for a complete bending cycle whilst saved data can be copied, edited and backed up. using the USB connector for data transfer.
TDRE Specification
The following table displays information for each machine in the TDRE range.
|
OD
|
WT
|
CLR
|
mandrel working distance
|
tooling capacity
|
roll bending
|
rear booster
|
CSM part no.
|
|
12
|
1
|
12-55
|
1000
|
2
|
|||
|
18
|
1.6
|
10-80
|
1200
|
2
|
|||
|
25.4
|
1.5
|
15-120
|
1500
|
2
|
|||
|
30
|
2
|
15-120
|
2200
|
2
|
|||
|
38.1
|
1.8
|
25-150
|
2200
|
2
|
|||
|
50.8
|
2
|
30-220
|
2500
|
2
|
|||
|
65
|
2
|
35-250
|
2500
|
2
|
|||
|
80
|
2.5
|
40-280
|
3500
|
2
|
|||
|
100
|
3
|
30-300
|
3500
|
2
|
|||
|
65
|
2.5
|
35-250
|
2500
|
2
|
servo
|
||
|
80
|
2.8
|
40-280
|
3500
|
2
|
servo
|
||
|
100
|
3.6
|
30-300
|
3500
|
2
|
servo
|
For more information, click on the table to be taken to the manufacturer’s website
