Addison Jubilee VBS450 Bandsaw

General workshop vertical bandsaw
Rubber bonded band wheels
Tilting table for bevel cuts
Variable blade speed with inverter
LED Work light
Air blower to clear chips
Blade cleaning brush

Addison Jubilee VBS 450

Vertical variable speed bandsaw with stationary table with 450mm throat. Ideal for general workshop use, the VBS bandsaws are the UKs most popular choice offering proven performance and reliability for over 25 years.

Specification Table
Hight Under Guides (MAX)230mmThroat (Band to Column)450mm
Blade Speed Range26-600m/min ~ 80-2000 f/minBlade Width Scope1/8″-1/2″
Blade Length3270~3730mmTable Dimensions540mm x 500mm
Table Tilt Range15°L-15°RTable Tilt Range-Front/Back10° Front / 10° Rear
Motor Power1hpNet Weight380kg
Shipping Weight460kgMachine Dimensions1100 x 820 x 1820mm

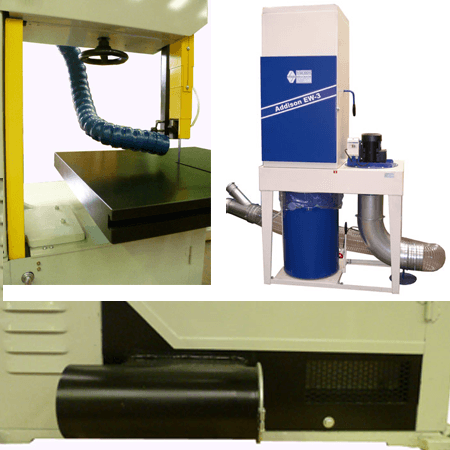

Dust extraction

Dust and swarf extraction systems, these are generally 2 point designs from close to the cutting area, and from the lower band wheel chamber. Both the extractor and points of extraction can be bespoke made to work with a very wide range of materials.

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.
