Lepus II – 3 Axis high speed panel processing machinery.
Designed for more efficient and cost effective panel machining.
The last quarter of 2017 sees Addison Saws introduce a brand new line of 3 Axis Panel Processing Machinery to their extensive range of metal machines. Following the already very successful addition of OZ aluminium machining centres and double mitre saws, Addison’s are now offering Oz’s panel solutions to the UK market. The Lepus II and Lepus IIL with the later featuring an extended table length for larger panels are a cost effective solution for fabricators who don’t want to compromise on quality.

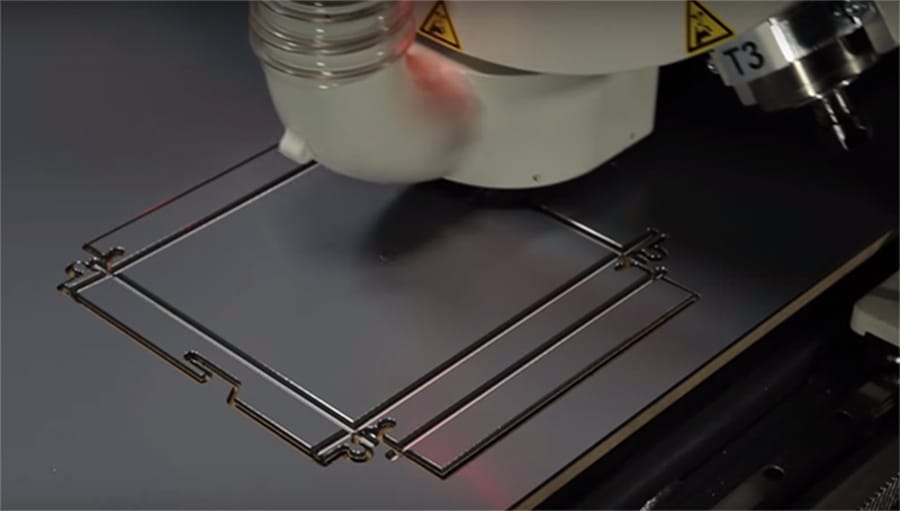

The LEPUS II panel processor is the ideal solution for rapid and reliable drilling, profiling and milling operations and is designed primarily for large-scale production of composite, aluminium, wood, acrylic and fibre resin materials. Supplied with advanced Alphacam user friendly CAD/CAM 2d software for remote programming and data transfer to the machine by USB or Ethernet connection.
The Lepus II has a working area of 1860 x 4000mm, (lepus IIL is 7200mm x 2000mm) accommodating multiple sized material stock. The Lepus is also suited to companies introducing innovative yet proven CE certified technologies for cutting and processing composite-aluminium façade panels and for precise and often intricate patterns in wood, wood-based, composite, aluminium, aluminium-composite or PVC. Larger/smaller sized machines are available custom built to special order.
4 rapidly deployed spindles in turret formation offering an efficiency boosting 2.5 second tool change over time. The 7.5 kW vacuum pump ensures secure material fastening and the division of the table into 5 sections makes it possible to securely fasten smaller surface materials and process them precisely without worrying about slippage.
Want to know more?
Visit the product page for the Lepus II to download machine brochure and view detailed specifications, alternatively the Lepus II L for the larger panels.
